SOC means state of charge. A 100 Ah battery at 50% SOC should have roughly 50 Ah remaining. In real systems this is an estimate, not a perfect measurement.

SOC is affected by current measurement accuracy, battery capacity setting, charge efficiency, temperature, cell ageing and whether the monitor has recently synchronised at a true full charge.

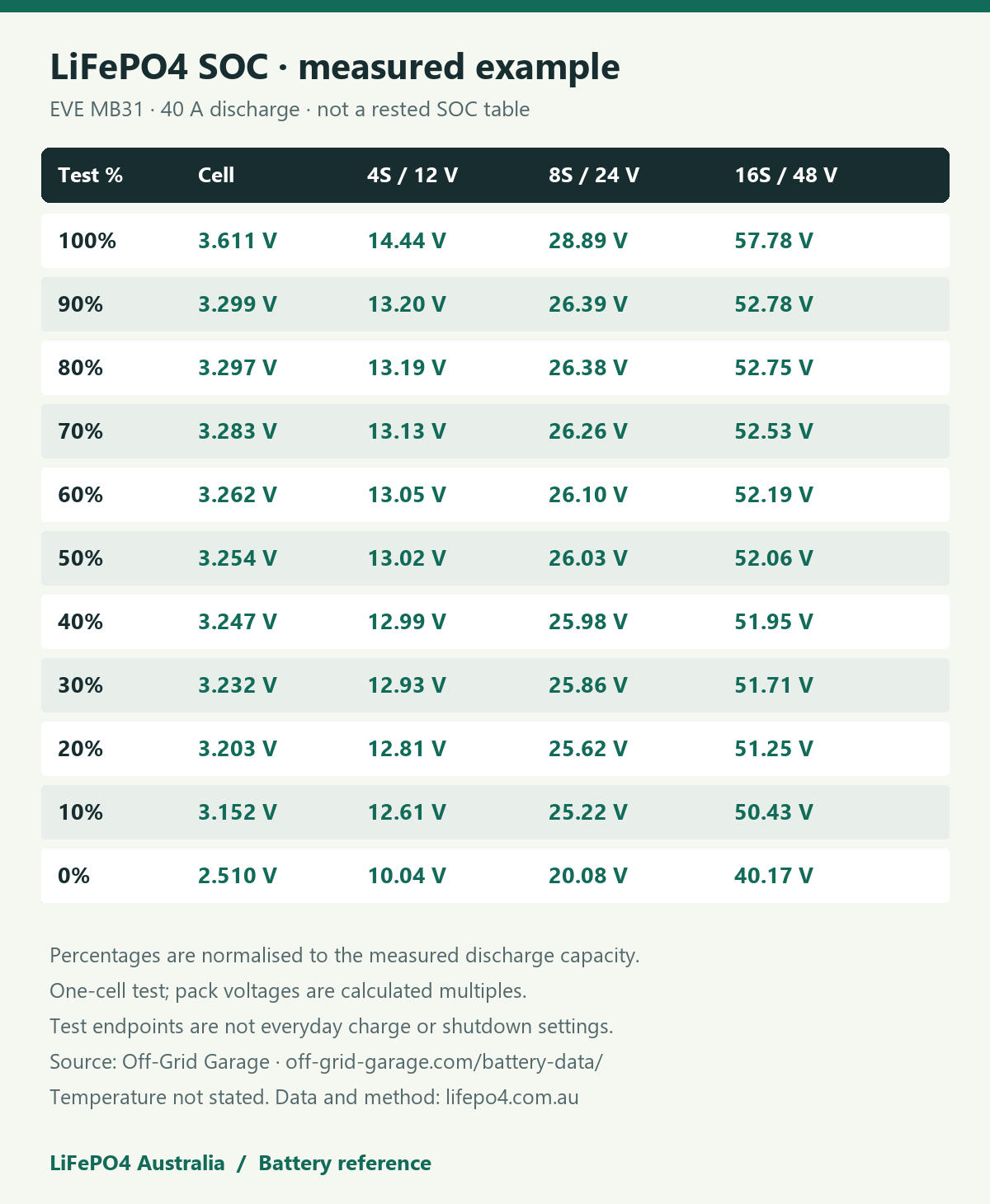

You can use voltage as a rough guide near full and near empty. In the middle, LiFePO4 voltage is too flat for accurate SOC. A battery at 13.2 V might be around the middle, but it could also be higher or lower depending on load, temperature, rest time and the exact cells.

Use voltage charts only when the battery has been resting with no charge or discharge. Under inverter load the voltage reads lower. While solar is charging it reads higher.

Because voltage changes with cell model, temperature, load, rest time, BMS wiring, meter accuracy and battery age. Large battery banks also settle slowly. A voltage chart pretending to give exact SOC at every 0.01 V is misleading for LiFePO4.

Most LiFePO4 cells have a maximum charge voltage around 3.65 V per cell. That equals 14.6 V for a 4S 12.8 V battery and 58.4 V for a 16S 51.2 V battery. You do not need to use the absolute maximum every day.

Daily charging at about 3.55-3.60 V per cell is usually enough for practical full capacity and is gentler. That is why many good system settings sit around 14.2-14.4 V for 12 V nominal systems and 56.8-57.6 V for 48 V nominal systems.

Victron’s lithium documentation lists 14.2 V absorption and 13.5 V float for 12.8 V lithium batteries, scaled to 28.4 V / 27 V and 56.8 V / 54 V for 24 V and 48 V systems.

LiFePO4 does not need long lead-acid style absorption. Once the battery reaches absorption voltage and current tapers down, it is effectively full. Long high-voltage absorption mostly gives the BMS time to balance cells.

• Daily cycling: short absorption is usually fine.
• New battery or newly built DIY pack: allow enough time for balancing.
• Cells drifting apart: occasional full charge can help the BMS rebalance.
• Battery always held full: reduce high-voltage time where possible.

LiFePO4 does not need float to prevent sulphation like lead-acid. However, in a solar or inverter system, a modest float voltage can be useful because it carries house loads without repeatedly cycling the battery.

Use a conservative float: about 13.5 V for a 12.8 V system, 27.0 V for a 25.6 V system, or 54.0 V for a 51.2 V system, unless your battery manual says otherwise.

Charge current is often described using C-rate. A 100 Ah battery charged at 50 A is charging at 0.5C. A 280 Ah cell charged at 140 A is also 0.5C.

Many LiFePO4 systems are happiest around 0.2C to 0.5C for routine charging. Some cells can accept more, but the BMS, cable size, fuse rating, charger, cell datasheet and temperature all have to support it.

Use a shunt or a BMS/inverter integration. Then configure it correctly.

• Battery capacity: set the real usable Ah capacity.
• Charged voltage: set close to your actual absorption voltage, not a random voltage chart number.
• Tail current: set the current level where the battery is considered full. Common values are around 2-4% of capacity, but this depends on the battery and charger.
• Charge efficiency: LiFePO4 is high efficiency, commonly around 98-99% in many monitors.
• Peukert setting: much lower than lead-acid; often close to 1.03-1.05 depending on the monitor and battery.
• Synchronise only after true full: do not let the monitor reset to 100% too early.

If your battery talks correctly to the inverter over CAN/RS485 and the inverter trusts that BMS data, an extra shunt is often unnecessary. A shunt is most useful for mixed systems, DIY batteries, parallel batteries without a single master BMS, or setups where loads/chargers bypass the inverter’s own current measurement.

The BMS is essential, but it should be the last line of defence, not the daily control method. A good BMS monitors cell voltage, pack voltage, current and temperature. It should protect against over-charge, over-discharge, over-current, short circuit and unsafe temperature. It should also balance cells.

Your charger and inverter settings should normally keep the battery inside safe limits without constantly tripping the BMS.

Some batteries include heaters and can warm themselves before accepting charge. That is different from simply forcing charge into a cold cell. If your system is in a cold location, make sure the BMS low-temperature charge cut-off is active and that solar/alternator chargers cannot bypass it.

Only if the voltage settings are suitable and equalisation/desulphation modes are disabled. Many lead-acid chargers are not suitable because they use automatic recovery, equalise or temperature compensation behaviour designed for lead-acid chemistry.

A charger with a LiFePO4 profile or custom voltage control is preferred.

Only if the manufacturer supports series connection. Multiple 12 V drop-in batteries in series each have their own internal BMS. If one battery disconnects first, the whole string can behave badly.

• Use identical model, age and capacity batteries.
• Fully charge each battery individually before series connection.
• Check the manual for maximum series count.
• Periodically rebalance or individually charge the batteries.
• For serious 48 V systems, use a proper 48 V battery with one BMS designed for that voltage.

Store at about 40-60% SOC in a cool, dry place. Disconnect parasitic loads. Check voltage periodically. Bluetooth modules, BMS standby loads, inverters, DC-DC chargers and displays can slowly drain a battery over months.

Large prismatic cells should start at similar SOC before being placed in series. Top balancing means bringing cells to the same upper voltage region before final assembly so one cell does not hit high-voltage cut-off before the others.

Do not parallel and charge bare cells unless you understand power supply current limits, busbar safety, fusing, insulation and short-circuit risk. Large LiFePO4 cells can deliver extreme fault current.

Maybe, but do not rely on it. Around 13.2 V is in the flat region for a 12.8 V battery. Use a shunt or BMS SOC estimate and make sure it has been calibrated.

The monitor probably synchronised to 100% when its charged-voltage and tail-current conditions were met. If those settings are too easy to satisfy, the monitor will call the battery full too early.

The cells are likely out of balance. Reduce charge voltage if the BMS is tripping, then allow controlled balancing at the top if the BMS supports it. For a DIY pack, check sense leads, busbars, cell matching and BMS balance current.

Possible causes include voltage sag under load, BMS low-voltage cut-off, undersized cables, loose lugs, weak cell group, incorrect inverter low-voltage setting or inaccurate SOC calibration.

Open-circuit voltage (OCV) is the rested voltage of a cell with no current flowing. Many lithium chemistries have a sloped OCV-SOC curve. LiFePO4 is different: much of the usable range sits on a long, flat voltage plateau.

That plateau exists because the LiFePO4 cathode reaction is largely a two-phase transition between LiFePO4 and FePO4. Around the plateau, a small voltage change can represent a large SOC change. That makes voltage feedback weak in the middle of the battery’s range.

This is why research papers on LiFePO4 SOC estimation use methods such as extended Kalman filters, adaptive models, pseudo-OCV reconstruction and neural-network estimators rather than voltage lookup alone.

LiFePO4 exhibits voltage hysteresis. The voltage at a given SOC can be different depending on whether the battery was recently charging or discharging. This is one reason a battery can appear to “recover” voltage after a load is removed.

For real-world monitoring, hysteresis means a simple voltage chart can be wrong even after the current stops, especially if the battery has not rested long enough.

Coulomb counting integrates current over time. In plain English, it counts amp-hours in and out. It is the foundation of most good battery monitors.

But coulomb counting drifts because of current sensor offset, capacity setting error, battery ageing, charge efficiency assumptions and missed current paths. That is why monitors need synchronisation events at true full, and why a badly configured shunt can be worse than no shunt.

At low temperatures, lithium ions move more slowly through the electrolyte and into the graphite anode. If the battery is charged too hard or too cold, lithium can plate as metallic lithium instead of intercalating properly into the anode.

Lithium plating can reduce capacity, increase resistance and create safety concerns. Research from NREL, NASA-linked battery work and peer-reviewed electrochemical studies all identify low temperature and high charge rate as key plating risk factors.

Cycle-life claims usually depend on controlled lab conditions: temperature, C-rate, depth of discharge, compression, voltage limits and end-of-life definition. A cell advertised for thousands of cycles is not promising those cycles under every installation condition.

Heat, high SOC storage, deep discharge, over-voltage, poor cell balance and high current all reduce real-world life. Conservative voltage settings and good thermal design often matter as much as the headline cycle-life number.

Large prismatic cells expand and contract during cycling. Some manufacturers specify fixture or compression conditions for testing. Poor busbar contact or uneven mechanical support can create extra resistance, heat and cell imbalance.

For DIY packs, equal-length links, clean terminals, correct torque, insulated tools, proper fusing and strain relief are not optional details. They are part of the battery system.
