Description

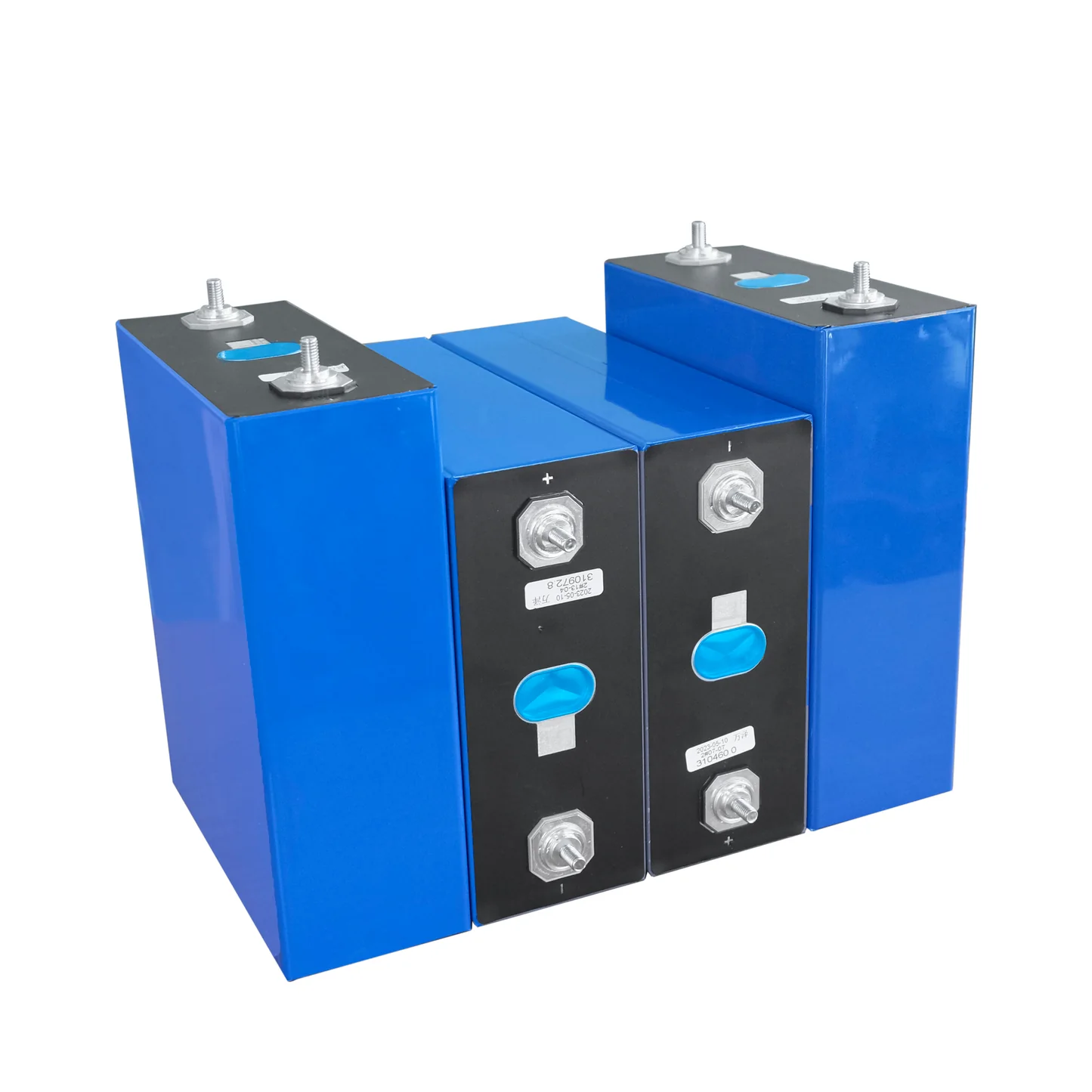

EVE MB31 314AH 3.2v LFP A- Grade
Minimum QTY for A- GRADE
New Model for Q2 2024
Why buy from Lifepo4 Australia
1. Warranty 3 Years A-Grade – (Alibaba is essentially no warranty. As you cannot reasonably return cells)
2. Quality Guarantee – We always aim to get good A- Grade cells Approx 325-330AH
3. Price – No other business can get close to our prices, and if they do, they are labelling the grades incorrectly
Capacity is approx 325-332AH for A-Grade. Our supplier of A-Grade cells is reliable and consistent.
This next generation EVE 314ah 3.2v Prismatic LFP cell, has been verified by EVE Laboratory to be able to hit 8,000 cycles, this is due to new novel manufacturing technology, the secret sauce of LFP chemistry has gone through multiple iterations, the quality of the Cathode and Anode materials has been improved, and it is now expected that under the right conditions, these cells can reach a lifetime of up to 20+ years.
MB31
- Model Name： MB31
- Nominal Capacity： 314Ah
- Nominal Voltage： 3.2V
- Standard Charge/ Discharge: 0.5C / 0.5C
- Cycle Life： 8000 Cycles
- Energy Density: 178wh/kg
- MSDS, IEC 62619, UN38.4
- Data Sources： EVE’s Laboratory
| Specification Parameters | |
|---|---|
| Nominal Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Initial IR | 0.18 mΩ ±0.05 mΩ |
| Weight | 5600g ±300g |
| Charging Cut-off Voltage | 3.65V |
| Discharging Cut-off Voltage | 2.5 V T >0℃ 2.0 V T ≤0℃ |
| Discharging Temperature | – 30~60℃ |
| Storage Temperature | 0~35℃ |
| Model Name | MB31 |
| Cycle Life | 8000 |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |
| Height(H) with terminal | 207.2 mm ±0.5 mm |
| Height(h) without terminal | 204.6 mm ±0.5 mm |
| Length | 173.7 mm ±0.5 mm |
| Thickness | 71.7 mm ±0.8 mm |
We advise following all required safety standards such as the following:
- AS/NZS 5033, Installation and safety requirements for photovoltaic (PV) arrays
- AS/NZS 4509.1, Stand-alone power systems, Part 1: Safety and installation
- AS 4086.2, Secondary batteries for use with stand-alone power systems, Part 2: Installation and maintenance
- AS/NZS 3000, Wiring Rules
- AS/NZS 1768, Lightning protection
- AS 4777, Grid connection of energy systems via inverters.
Shipping is included
Regional and Rural may be extra, please call for a quote before placing an order.
