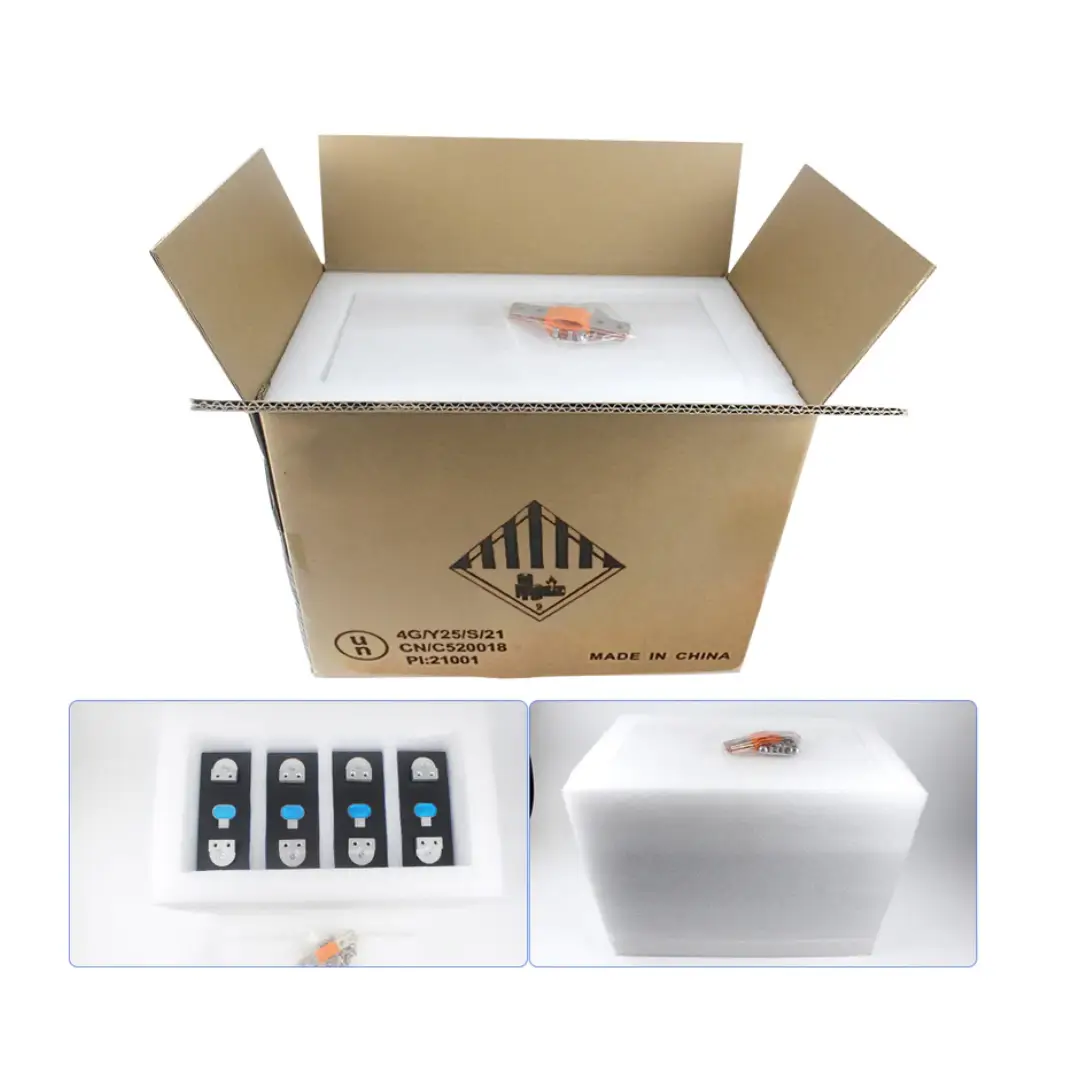

  • EVE MB31 packaging un38.3

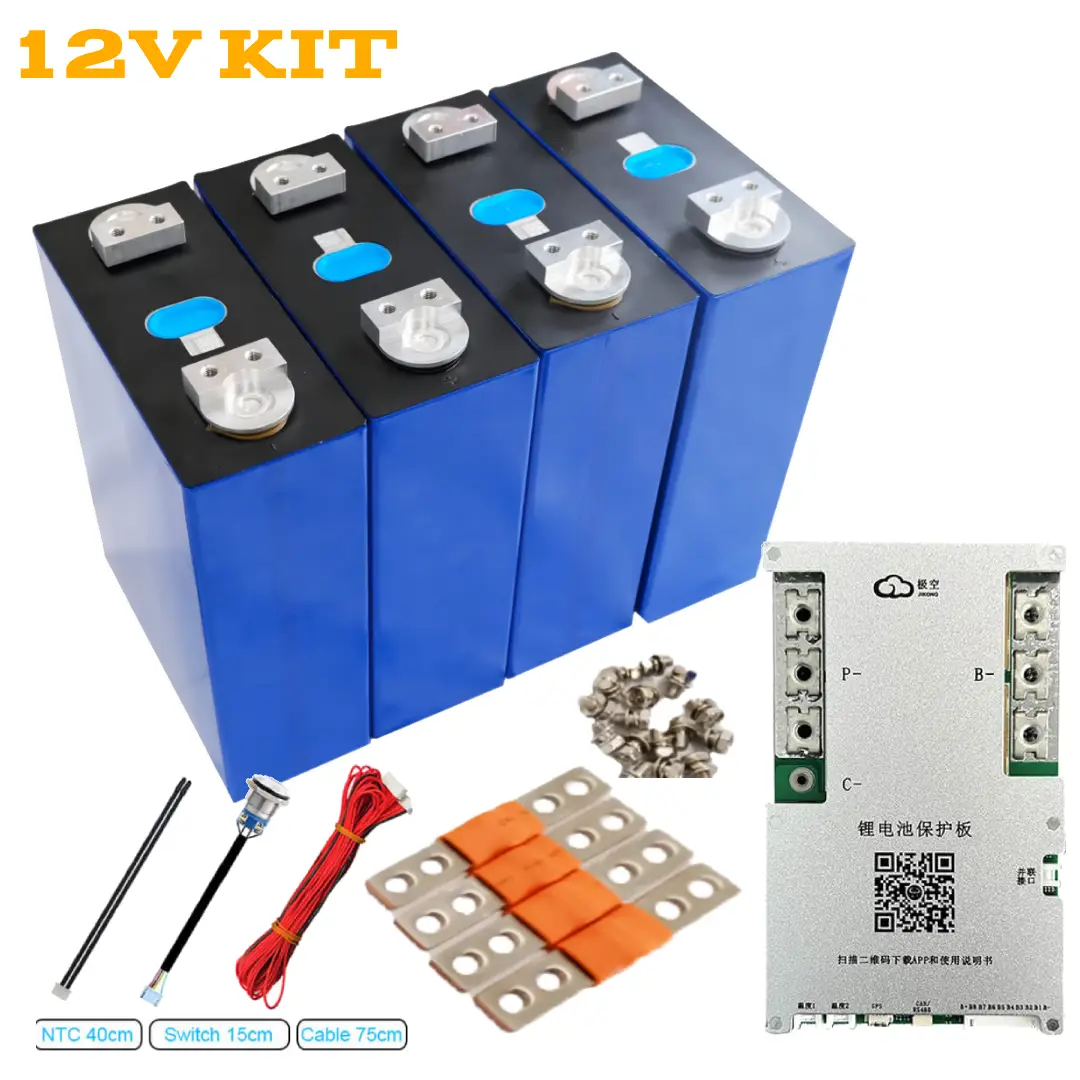

12V EVE MB31 314Ah LiFePO4 Battery Kit 4.02kWh with JK BMS

Original price was: $1,754.00.Current price is: $1,250.00.

Build a high-capacity 12V-class battery with four matched genuine EVE MB31 314Ah cells and a 200A JK smart BMS. Supplied with the essential inter-cell hardware and monitoring wiring for DIY assembly.

SKU: EVE-MB31x4_BMS200A Categories: , , Tags: , , , , , , , , , , , , Brand:

Description

Build your own 12.8V, 314Ah LiFePO4 battery using matched genuine EVE MB31 prismatic cells and a correctly selected JK BMS.

The 4S1P configuration provides approximately 4.02kWh nominal energy for caravan, camper, marine, backup-power and compact off-grid solar projects.

Genuine EVE cells

Each EVE MB31 cell is rated at 3.2V, 314Ah and 1004.8Wh nominal energy. EVE specifies 8,000 cycles to 70% SOH under EVE specified test conditions.

JK smart battery management

The included JK-B2A8S-20P supports this low-voltage LiFePO4 configuration and provides a 200A current rating, 2A active balancing, Bluetooth monitoring and configurable protection settings.

Key features

  • 4 matched genuine EVE MB31 314Ah cells
  • 12.8V nominal, 4S1P configuration
  • Approximately 4.02kWh nominal energy
  • JK-B2A8S-20P 200A smart BMS with 2A active balancing
  • Bluetooth monitoring and communication
  • Busbars, terminal hardware and balance wiring supplied

What’s included

  • 4 × matched EVE MB31 314Ah prismatic cells
  • 1 × JK-B2A8S-20P 200A JK BMS

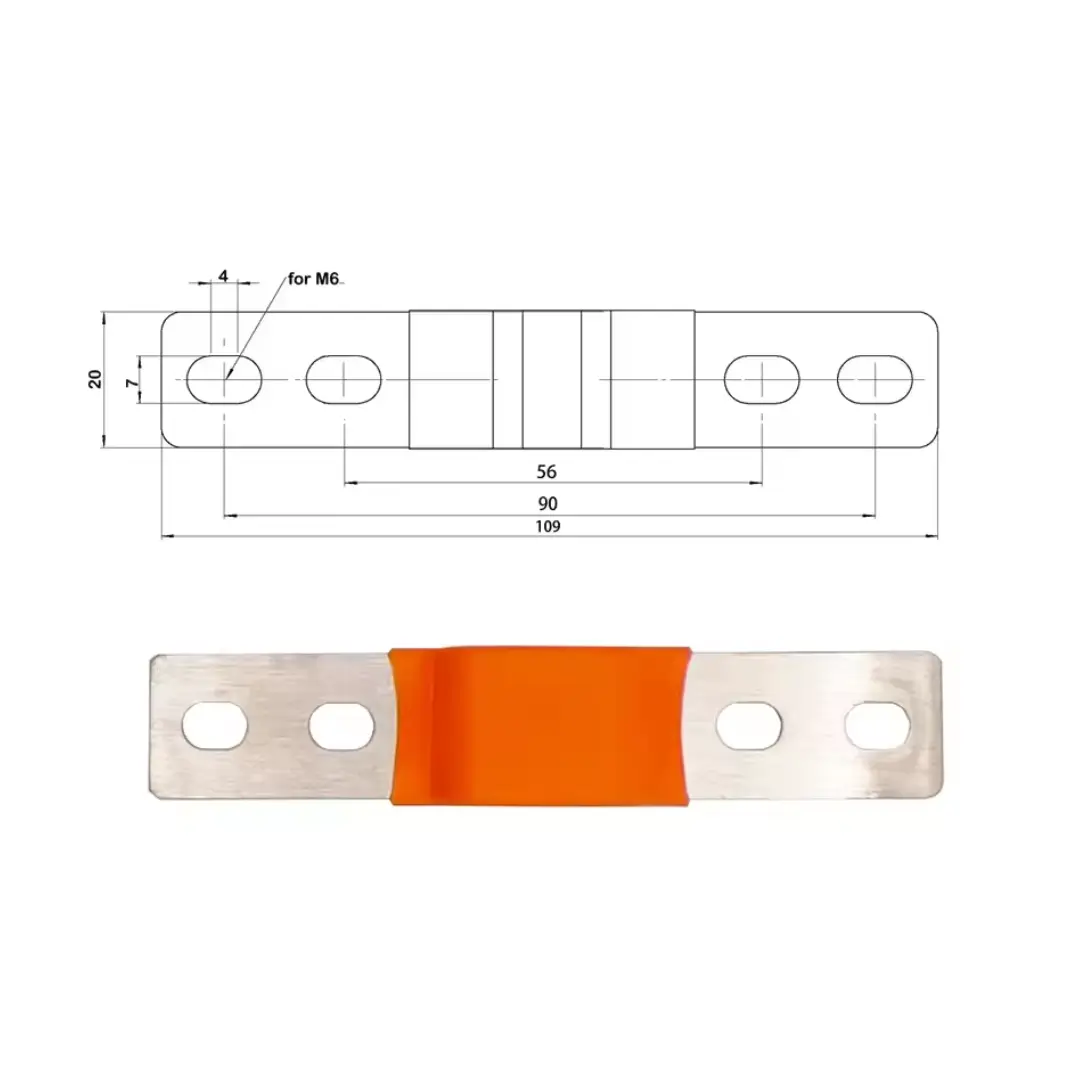

  • Inter-cell busbar set
  • Required cell terminal hardware for the supplied cell batch
  • BMS balance-lead harness and associated monitoring wiring

DIY kit notice

This is an unassembled component kit, not a completed or certified drop-in battery. An enclosure, insulated cell restraint, main battery cables, lugs, fuse or circuit breaker, isolator, charger and inverter are not included unless separately stated.

Assembly should only be undertaken by a competent person familiar with high-current DC battery systems. Confirm polarity, use suitable cell restraint and insulation, install DC-rated over-current protection and configure the BMS before commissioning.

Key specifications

Configuration4S1P
Nominal voltage12.8V
Nominal capacity314Ah
Nominal energy4019.2Wh / 4.02kWh
Cell modelEVE MB31
Cell quantity4
Cell chemistryLiFePO4 / lithium iron phosphate
Cell nominal voltage3.2V
Maximum series charge voltage14.6V based on 3.65V per cell; configure equipment appropriately
BMSJK-B2A8S-20P
BMS current rating200A continuous; completed-system limit may be lower
Active balancingUp to 2A
CommunicationBluetooth
Cell standard discharge0.5P under EVE specified conditions
Cell cycle-life test rating8,000 cycles to 70% SOH under EVE specified test conditions
Assembly stateUnassembled DIY component kit

Additional information

Weight24 kg
Dimensions44 × 25 × 35 cm
Voltage class

12.8V

Configuration

4S1P

Cell model

EVE MB31

Capacity

314Ah

Nominal energy

4.02kWh

BMS model

JK-B2A8S-20P

Communication

Bluetooth

Assembly

DIY component kit

EVE_MB31_IEC62619 TEST

Download

EVE_MB31_IEC62619 TEST

MB31 Datasheet

Download

MB31 Datasheet
