Description

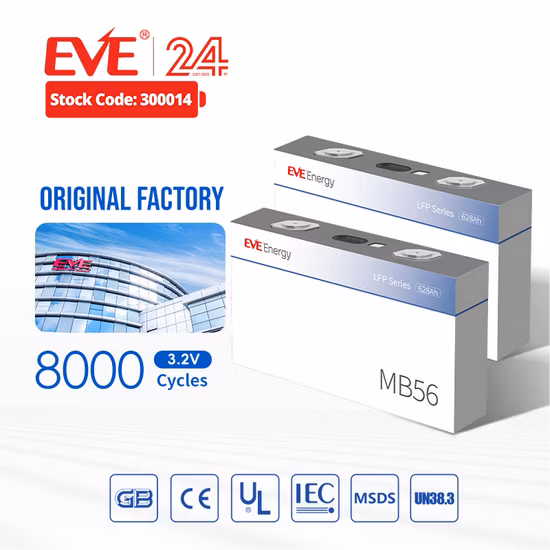

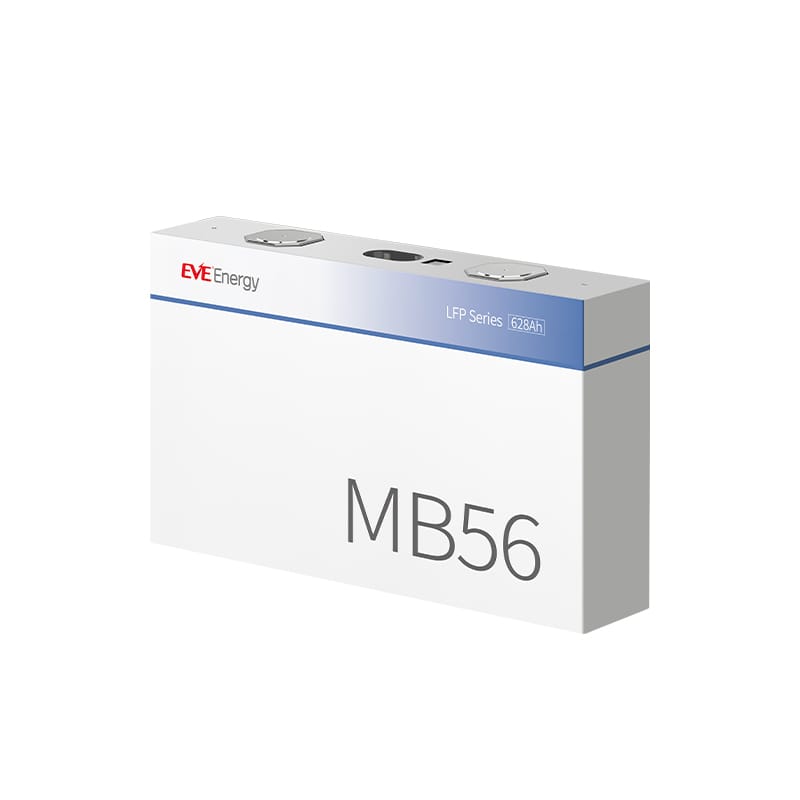

EVE MB56 628ah 3.2v LFP
NEW STOCK – FREE SHIPPING TO TNT/FEDEX DEPOT (EAST COAST ONLY) ASK FOR QUOTE OTHER REGIONS
LARGE ORDERS MAY REQUIRE LEAD TIME OF 5-6 WEEKS
This next generation EVE 628ah 3.2v Prismatic LFP cell, has been verified by EVE Laboratory to be able to hit 8,000-12,000 cycles, this is due to new novel manufacturing technology, the secret sauce of LFP chemistry has gone through multiple iterations, the quality of the Cathode and Anode materials has been improved, and it is now expected that under the right conditions, these cells can reach a lifetime of up to 20+ years. Although most DIY battery builds may not experience the cycle life of a thermally managed BESS, some will and that is an amazing and attractive technological advancement in LFP.
- Model Name： MB56
- Nominal Capacity： 628Ah (660-680ah+ when new)
- Nominal Voltage： 3.2V
- Standard Charge/ Discharge: 0.5C / 0.5C
- Cycle Life： 8000+ Cycles
- MSDS, IEC 62619, UN38.4
- Data Sources： EVE’s Laboratory
| Specification Parameters | |
|---|---|
| Nominal Capacity | 628Ah |
| Nominal Voltage | 3.2V |
| Initial IR | 0.10 mΩ |
| Weight | 10950g ±300g |
| Charging Cut-off Voltage | 3.65V |
| Discharging Cut-off V oltage | 2.5 V T >0℃ 2.0 V T ≤0℃ |
| Discharging Temperature | – 30~60℃ |
| Rec Charging Temperature | 2~35℃ |
| Model Name | MB56 |
| Cycle Life | 8000 |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |
| Height(H) with terminal | |
| Height(h) without terminal | 352 mm ±0.5 mm TBC |
| Length | 207 mm ±0.5 mm TBC |
| Thickness | 72 mm ±0.8 mm TBC |
Minimum Order is 4 cells.
