Description

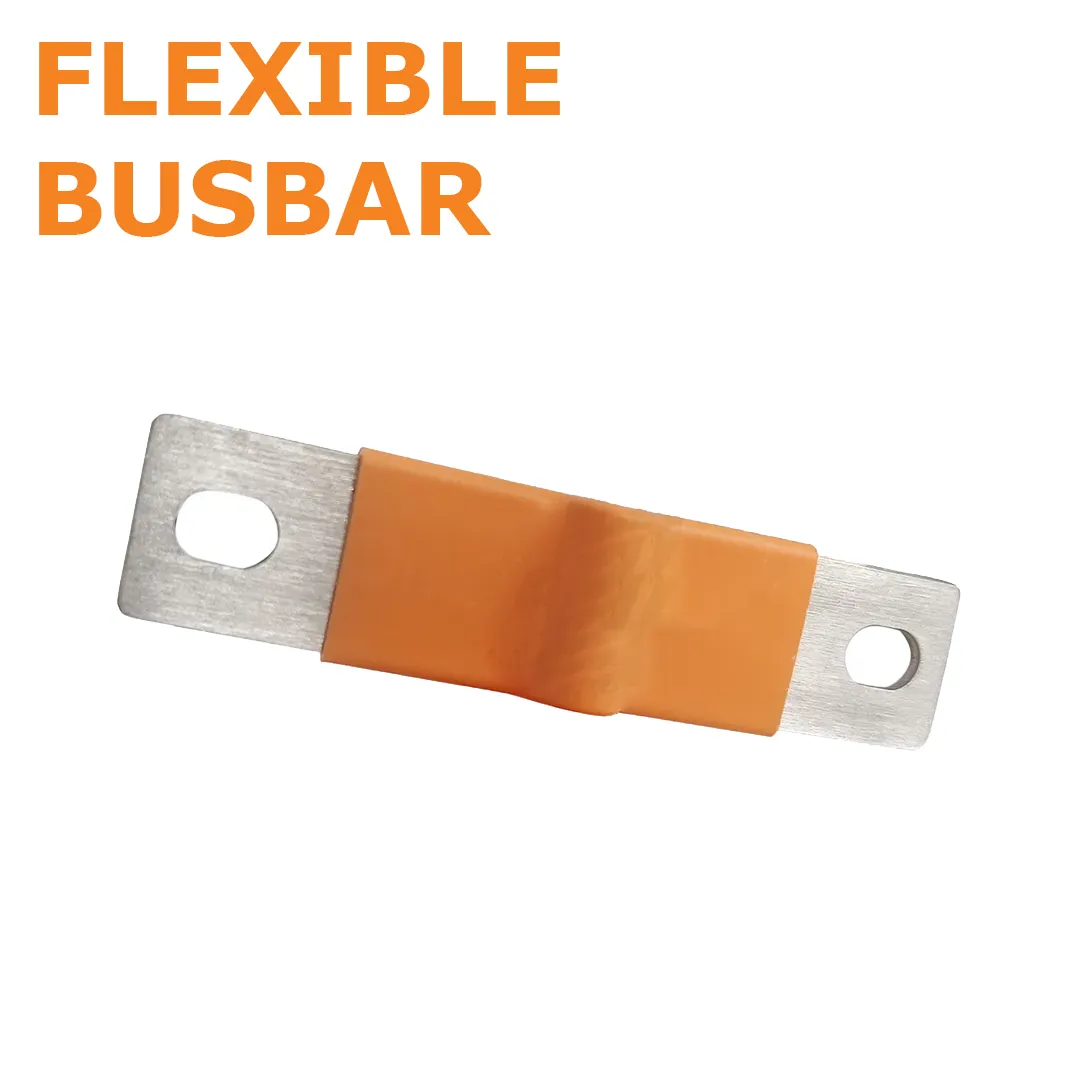

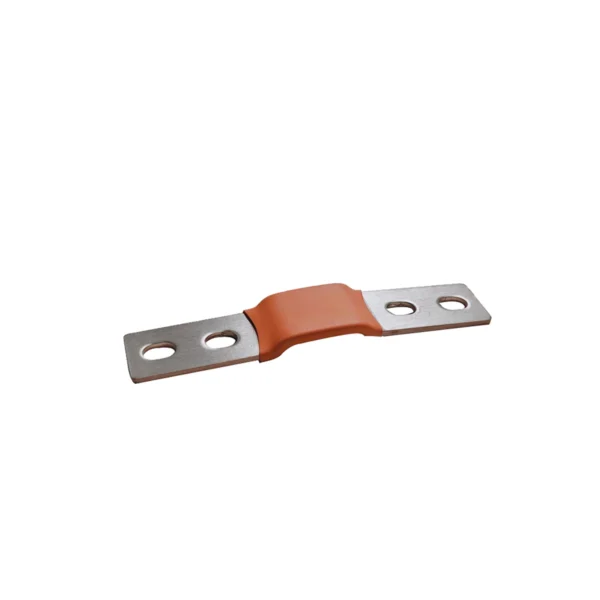

Flexible Busbar – 280AH/306AH/314AH/330AH
This is a 3mm x 92mm x 20mm Copper busbar for connecting 280ah sized LIFEPO4 cells together.
The 280ah, 302ah, 304ah, 306ah, 310ah, 314ah and 330ah cells are normally all the same dimensions.
Please be sure before you orde this item, as we do not accept change of mind, or accidental purchase returns on this item.
Electrical Parameters – Summary of 2mm vs 3mm
Current (A) |
Voltage Drop 2mm (V) |
Power Loss 2mm (W) |
Voltage Drop 3mm (V) |
Power Loss 3mm (W) |
|---|---|---|---|---|
200 |
0.0062 |
1.24 |
0.0041 |
0.83 |
300 |
0.0093 |
2.80 |
0.0062 |
1.86 |
