Description

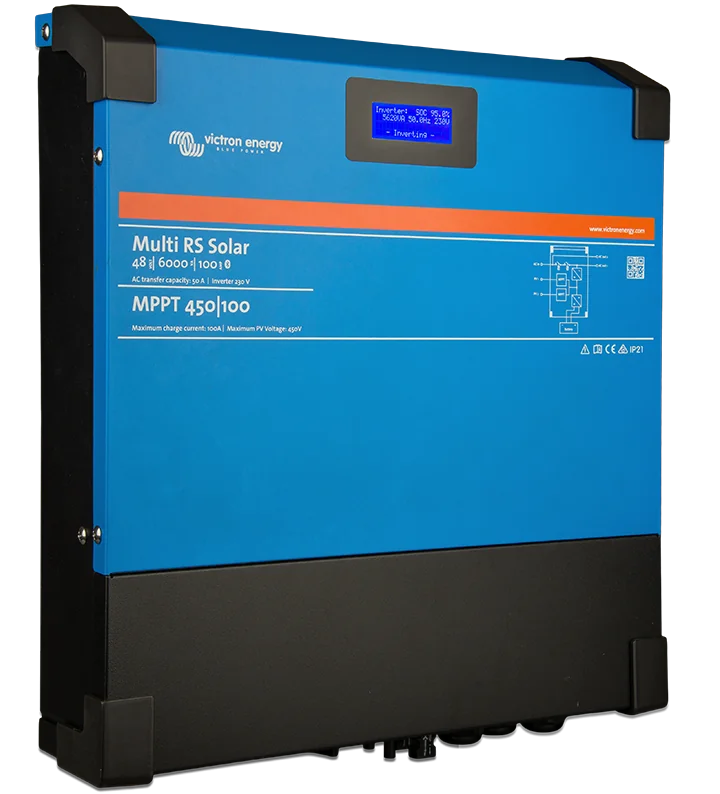

Multi RS Solar 48/6000/100-450/100

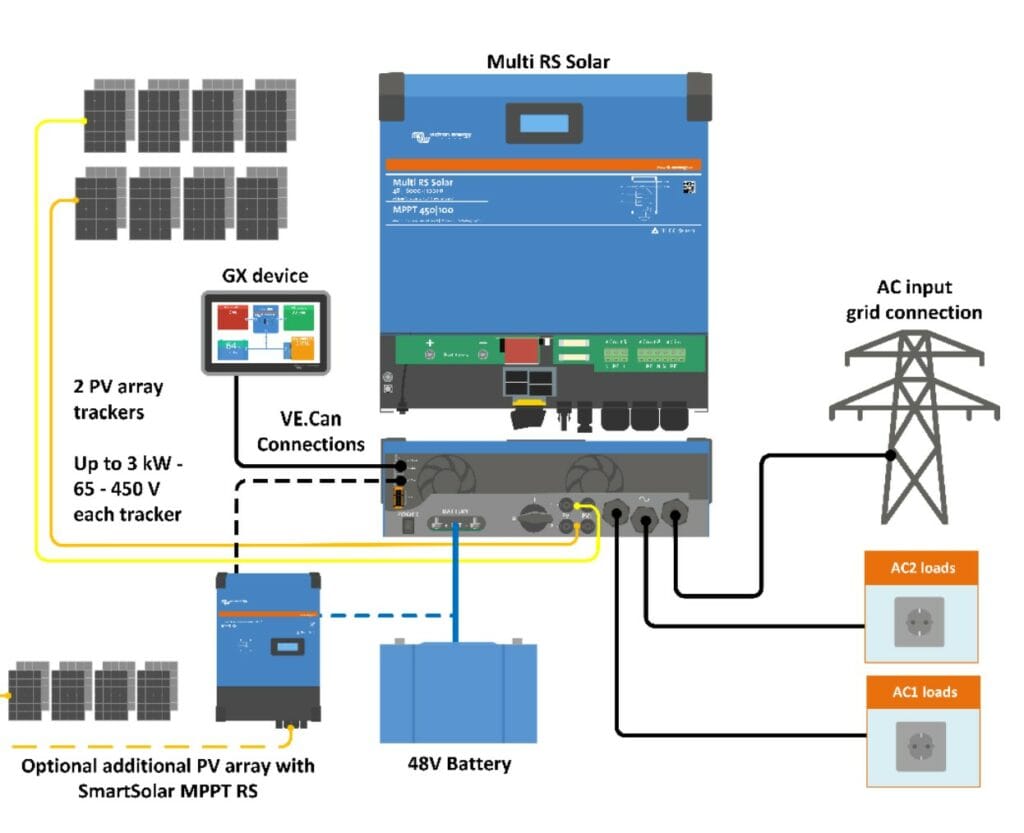

The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent 3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct grid connection without batteries—perfect for starting simple and adding storage later.

This inverter is NOT approved by CEC in Australia which most likely means, for most it should not be connected to the Grid unless behind a manual transfer switch which would isolate it from grid supply completely, any connection to the grid would be illegal.

Operating modes
Hybrid mode – Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
Backup mode – Switches to backup mode during a grid outage.
Off-grid mode – Operates without grid connection.
Generator mode – Controls the generator to minimize run -hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.
PV Inverter mode – Works as a PV inverter without a battery.

Updated in mid-2023 to a dual tracker design, its high-frequency technology delivers exceptional efficiency in a quiet, lightweight package with low standby power. Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trends, firmware updates, and configuration tools.

Connect to a Cerbo GX for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.
