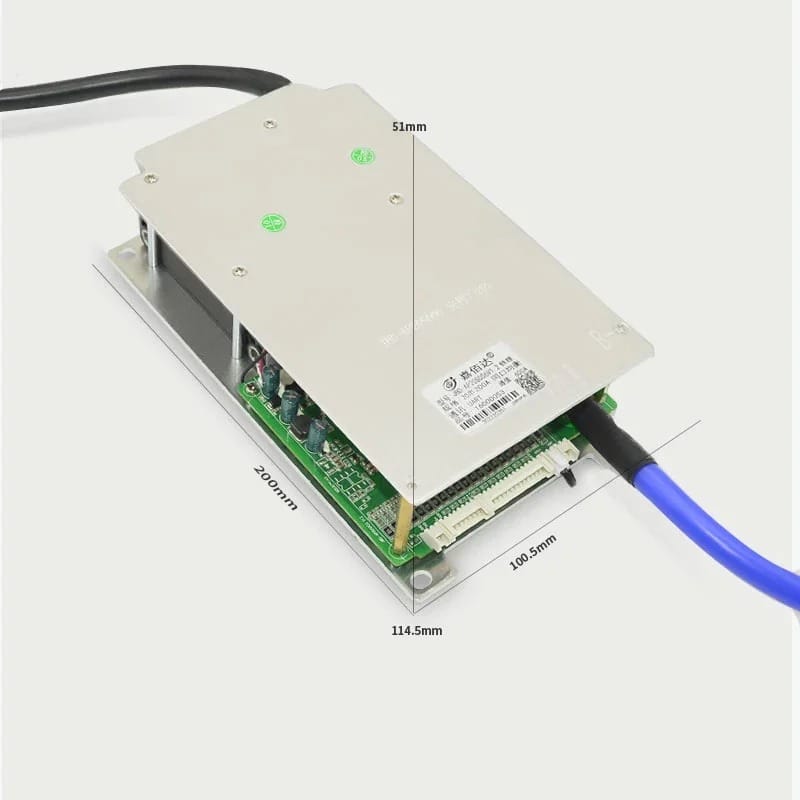

JBD BMS 300A 16s 48v with Relay + Bluetooth


Category: Tags: , , , , ,


JBD BMS 300A 16s 48v with Relay + Bluetooth

Presenting the JBD BMS 300A 16s 48v with Relay + Bluetooth – a state-of-the-art Battery Management System designed to optimize the performance and lifespan of your 48V battery packs.

These BMS units are brand new and work for all variations from 7s to 21s and everything in between. This BMS is rated for 300a continuous.

Included is 4x 4AWG wires with ring terminals already crimped. This makes installation even easier for you.

There is also a 400a fuse that must be installed in-line on the positive size of the battery as shown in the wiring diagrams. We include a 400a fuse so you can run 300a continuous without worry of breaking the fuse.

Key Features:

  • High Current Rating: With a maximum continuous discharge current of 300A, this BMS is capable of handling high-power applications, making it ideal for electric vehicles, solar energy storage systems, and more.
  • 16s Configuration: Designed for 16 series (16s) 48V lithium battery packs, it ensures each cell in your battery pack is monitored and balanced, promoting longer battery life and improved performance.
  • Integrated Relay: The built-in relay provides an added layer of protection, allowing the BMS to disconnect the load or charger in case of any fault conditions, protecting your battery pack from damage.
  • Bluetooth Connectivity: The integrated Bluetooth module allows you to monitor your battery pack’s performance in real-time using a smartphone app. You can check parameters like voltage, current, temperature, and more right at your fingertips.
  • Advanced Safety Features: This BMS offers comprehensive protection features including overcharge, over-discharge, over-current, short-circuit, and over-temperature protection.

The JBD BMS 300A 16s 48v with Relay + Bluetooth is a robust and reliable solution for managing your 48V battery packs, offering high performance, advanced safety features, and convenient wireless monitoring. Experience the difference today!

Supported configurations
8S 24V
16S 48V
21S 72V
