Description

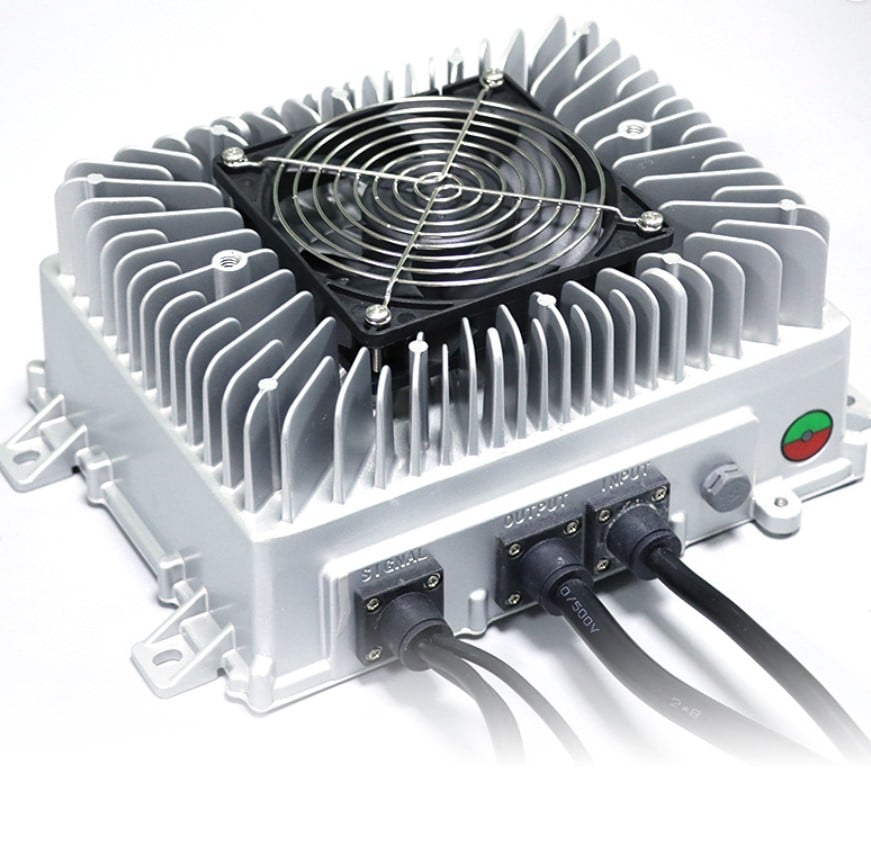

51.2V 35A LiFePo4 Charger 2000W
Introducing our 51.2V 35A Charger 2000 Watt designed with the latest technology to keep your batteries in optimal condition. This charger is perfect for all your adventures, providing a reliable power source for your electrical system.
The battery charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life. The products are applicable to lithium battery, lifepo4 battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.
Key Features:
- High Power Output: With 35A output, this charger can quickly and efficiently charge your 51.2V battery. (105AH in 3-4Hours)
- High Quality Construction: Constructed with corrosion-resistant materials ensuring longevity and reliable performance.
- Safety Features: Equipped with overcharge, overvoltage, and short circuit protection to safeguard your batteries
- Easy to Use: Designed with a user-friendly interface, making it easy to monitor charging status and battery health.
Technical Parameters
LiFePo4 16s 58.4v (3.2v)
Constant voltage 58.4V
Constant current 29-35A
Optional by order NCM 14s
Item | Parameters |
| AC Input Wide Voltage, Range | AC90V~264V |
| AC Input Frequency | 50Hz |
| With APFC Function, Power Factor | ≥0.98 |
| Efficiency | ≥93% |
| Protection Level | IP66 |
| Operating Temperature | -40℃~60℃ |
| Storage Temperature | -55℃~100℃ |
| CAN Communication Function | Optional -$50 |
| 12V3A Auxiliary Power Supply | Optional -$50 |
| Noise | ≤45dB |
| Size | 282*168*90mm |
| Net Weight | 3.8Kg |
Protection Function
1. Over Temperature Protection
When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically. When it exceeds 85℃, the charger shut down for protection. When the temperature drops, the charger automatically resumes charge.
2. Short Circuit Protection
When the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.
3. Battery Reverse Polarity Protection
When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
4. Low voltage & Over-voltage Protection
If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.
5. Fully Automatic Shutdown
Automatically shut down after full charge.
