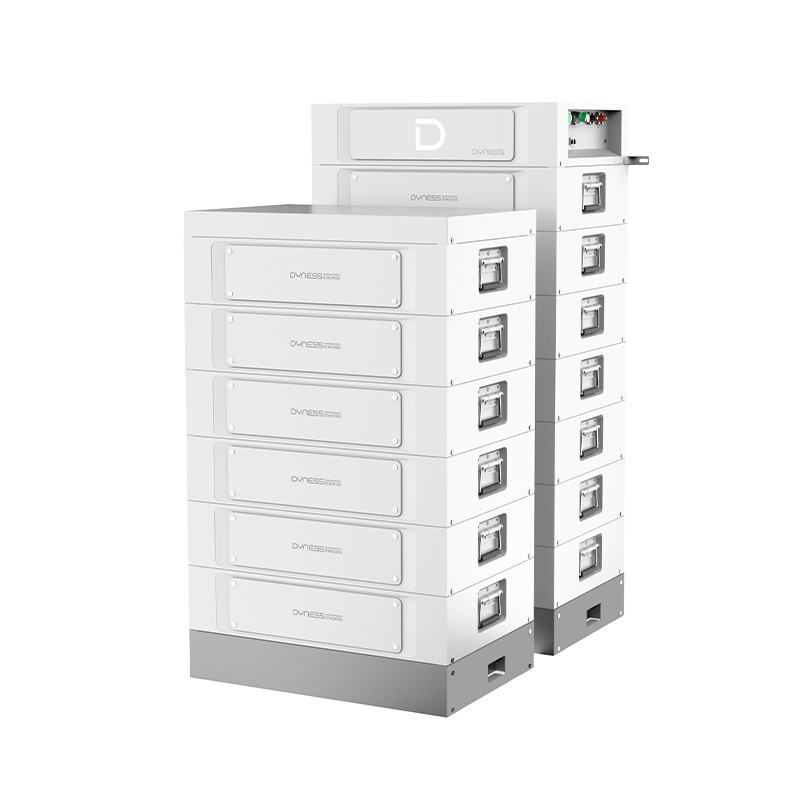

Dyness STACK100 5.12kWh HV Battery Module
The Dyness STACK100 is a modular high-voltage LiFePO4 battery system designed for on-grid residential and commercial energy storage. Each 51.2V 100Ah module provides 5.12kWh of nominal storage and can be stacked into larger high-voltage battery systems.
Key features
- 5.12kWh nominal capacity per module
- LiFePO4 battery chemistry
- High-voltage stackable system architecture
- 51.2V / 100Ah module specification
- 95% depth of discharge
- CAN / RS485 communication
- Built-in WiFi module with app OTA function
- Forced air cooling
- IP20 protection rating
- IEC62619 certification listed by the manufacturer
System range
- System modules: 3 to 15 modules
- System energy range: 15.36kWh to 76.8kWh
- Operating voltage range: 134V to 864V
- Recommended charge/discharge current: 50A
- Maximum charge/discharge current: 100A
Compatible inverter brands listed by Dyness
Solis, GoodWe, DEYE, Growatt, Solplanet, SAJ, Final compatibility should be confirmed against the current Dyness inverter compatibility list and the project design.
