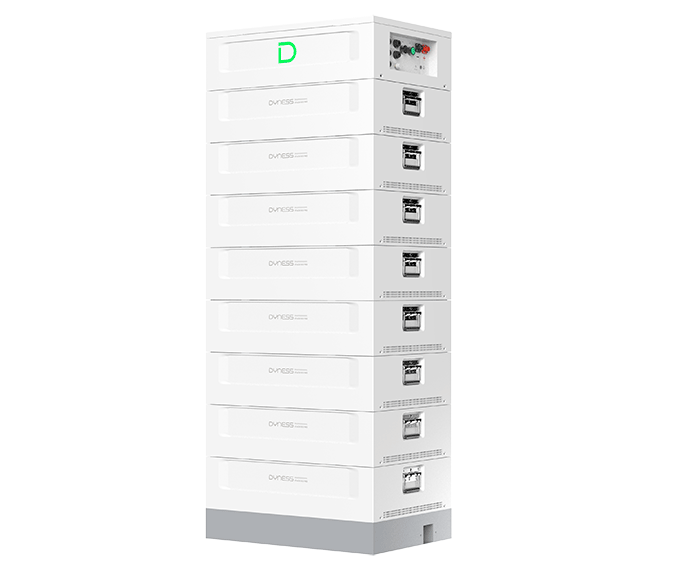

Dyness STACK100 Pro 5.12kWh HV Battery Module
The Dyness STACK100 Pro is a rackless, stackable high-voltage LiFePO4 battery module for residential, small commercial and industrial energy storage systems. It is the IP66 protected Pro variant of the STACK100 platform, designed for plug-and-play stacked installation and scalable high-voltage systems.
Key features
- 5.12kWh nominal capacity per battery module
- LiFePO4 battery chemistry
- High-voltage stackable system architecture
- IP66 high protection rating
- Six-layer safety protection
- Rackless free stacking with plug-and-play installation
- Natural convection cooling for quiet operation
- 1C charge/discharge capability
- Battery equalisation with module mixing support within three years
- IEC62619 category assigned based on manufacturer documentation and site classification
System range
- System energy range: 15.36kWh to 76.8kWh per cluster
- Expandable up to 12 clusters in parallel
- Maximum system capacity listed by Dyness: up to 921kWh
- Cycle life: at least 8000 cycles
- Single cluster dimensions: 657W x 460D x 292 + 169 x module count mm
View Dyness STACK100 Pro datasheet
Source: Dyness STACK100 Pro product page.
