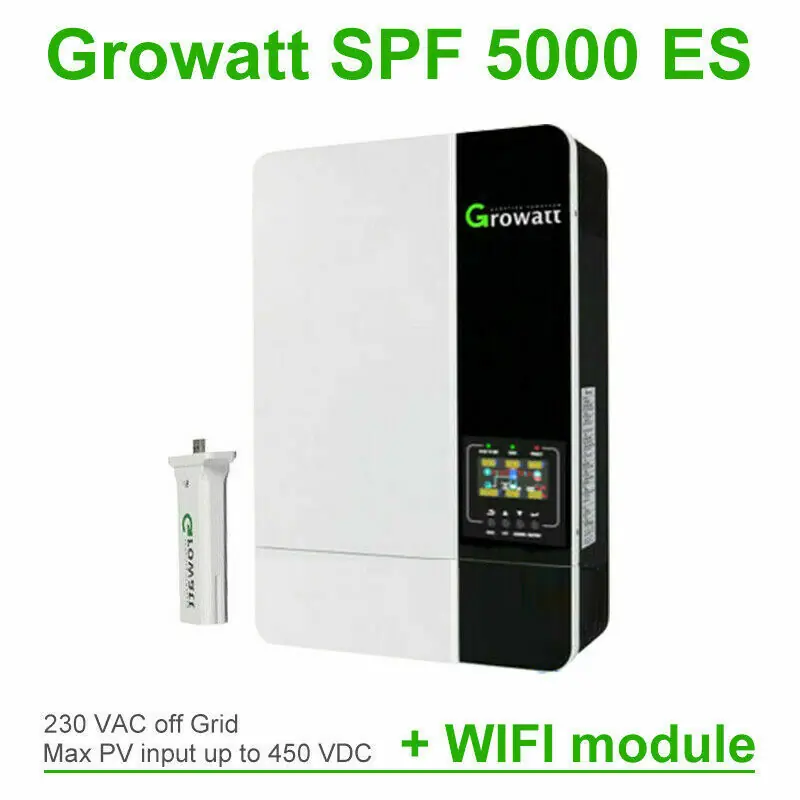

Growatt SPF5000 5kwh Hybrid Inverter 48V Battery Off Grid

FREE Wi-Fi dongle valued at $99

Now available SPF6000ES Plus here

This is a multi-functional off-grid solar inverter, integrated with an MPPT (120VDC ~ 430VDC) solar charge controller, a high-frequency pure sine wave inverter with a UPS function module all in one machine. This unit is perfect for off-grid backup power and self-consumption applications. It can work with or without batteries. The Wi-Fi / GPRS module is a plug-and-play monitoring device to be installed on the inverter.

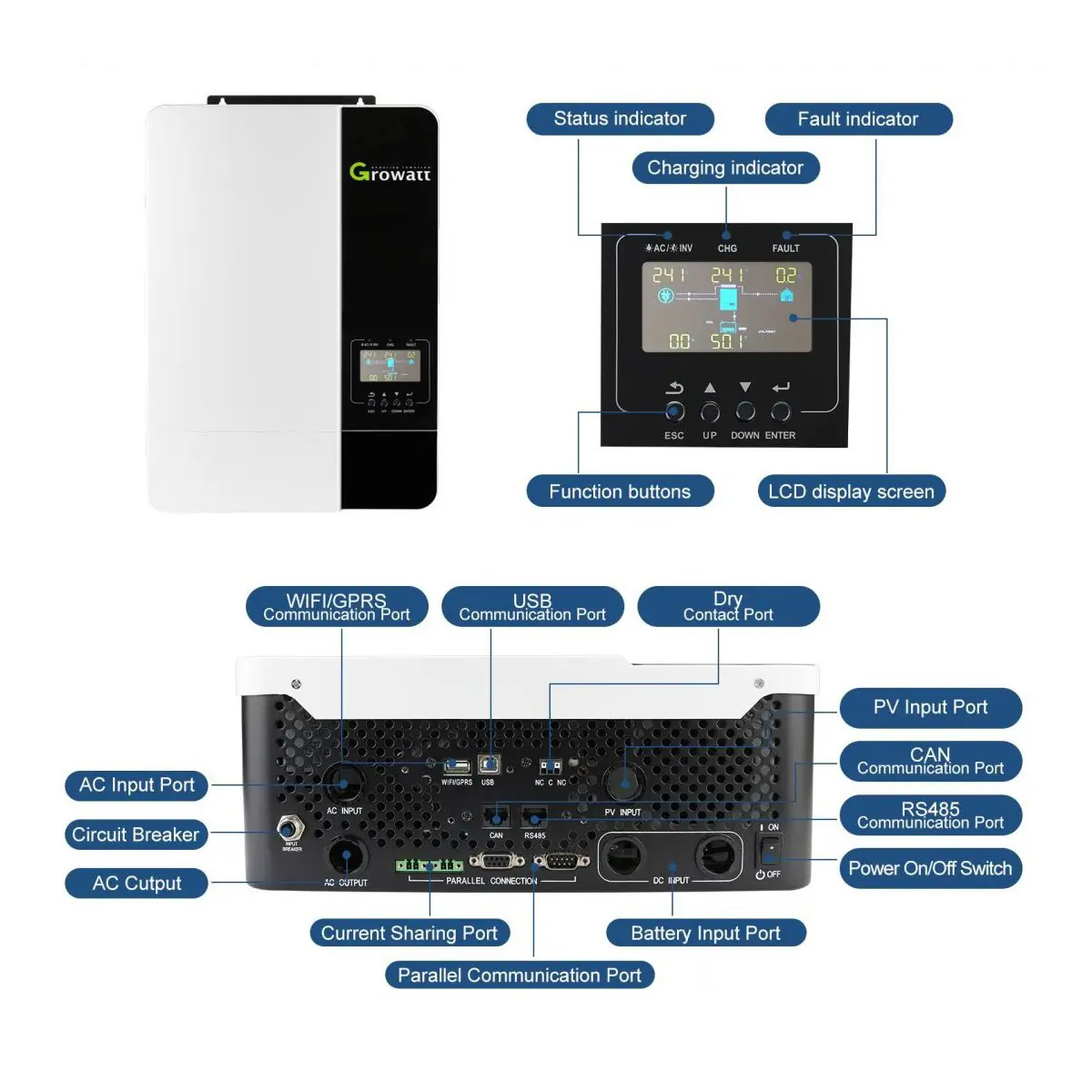

Growatt SPF 5000 ES FEATURES:

• Integrated MPPT charge controller.
• Equalisation charging function.
• Work with or without battery.
• PV input voltage up to 450VDC.
• Configurable grid or solar input priority.
• With WiFi/GPRS remote monitoring
• Support parallel operation for capacity expansion up to 30kW.
• PV and grid power the load jointly if PV energy is unsufficient.
• Flexibly schedule the Inverter charging and discharging time.

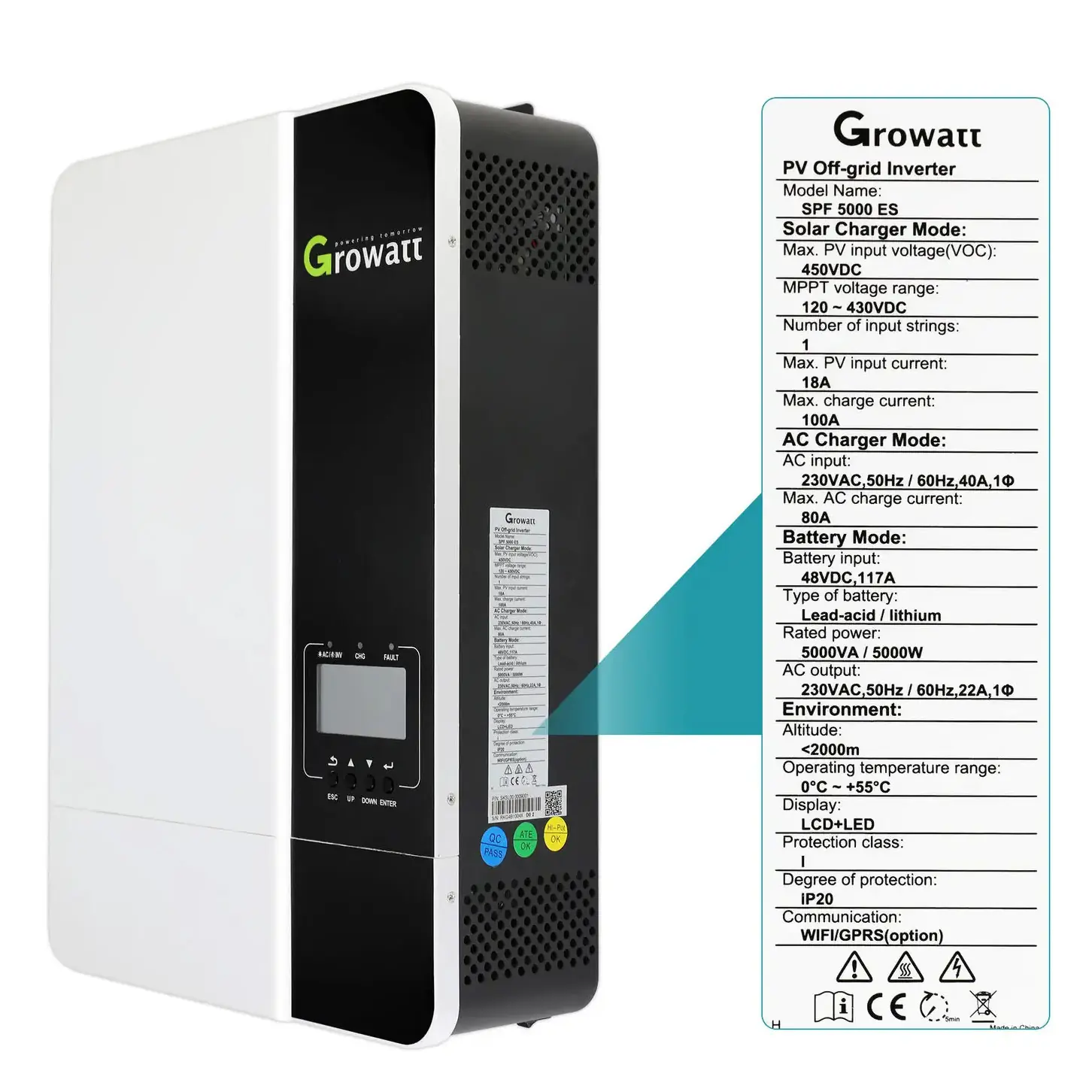

Technical Specifications:

• Rated Power: 5000W
• Efficiency (Peak): 93%
• PV Input Voltage Range: 120VDC–450VDC
• Maximum PV Input Current: 18A
• Battery Voltage: 48v and 51.2v
• Surge Power: 10,000VA
• Communication Interfaces: USB, RS485, Wi-Fi/GPRS (optional)
• Weight: 12.5 kg
• Dimensions: 330 x 485 x 135 mm
• Waveform: Pure sine wave

Transfer Time: 10ms – 20ms.

SOLAR CHARGER

Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC – 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.

AC CHARGER

AC Charge Current: 80A
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range: 50 Hz/60 Hz (Auto-sensing).

PHYSICAL

Protection degree: IP20
Height: 330 x 485 x 135mm.
Weight: 12 kg.

Wi-Fi  included

Warranty
2 Years
