Description

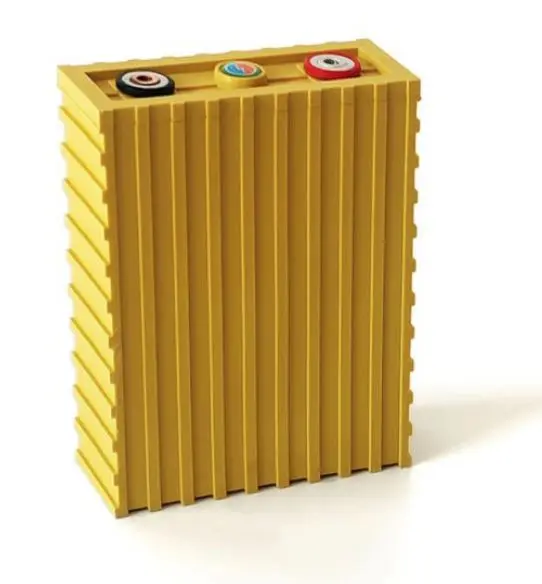

Winston 100ah TSWB-LYP100AHA-B

Certified from Winston A+ Grade
PRICE IS INDICATIVE – CONTACT US FOR CURRENT PRICE

This product has additional fees added at checkout which relate to Shipping, Import Costs and Final Delivery.
We do not sell single cells. The Minimum order Qty is 10. We do not stock Winston cells in Australia.

We import these directly from Winston themselves for use in critical applications. Winston has a unique and outstanding track record for the quality of its LFP technology. One of the first LFP manufacturers, with their own special chemistry which works far better in colder and hotter climates.

Nominal Capacity：100AH
Operation Voltage：2.8V ～3.8V
Weight：3.6kg±100g
Cycle Life：80%DOD≥5000Times : 70%DOD≥7000Times
218mm x 179mmx 62mm

Original ThunderSky Winston part number: WB-LYP100AHA(B), TSWB-LYP100AHA(B)
Recommended initial and subsequent charging is to 3.65 V.
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continously.
Operating temperature -45°C up to 85°C (discharging)
Energy density is 88.88 Wh/kg

These battery cells are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications – such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge – no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
All cells are supplied new directly from the manufacturer.
Original Woodenbox contains 18 cells is 647*458*360mm large and weights 75kg.
