Description

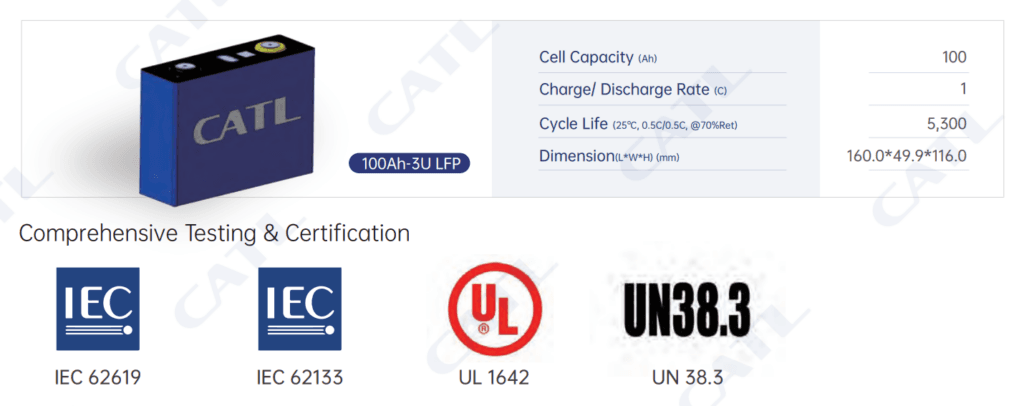

CATL 100ah 3.2v LFP Cell
Lightweight CATL 100ah LFP cells. Just under 8kg for 12.8v 100ah.
| Brand Name | CATL |
| Model Number | CATL100AH |
| Battery Size | 3.2V 100Ah |
| Weight | 1.98KG |
| Max Charge | 0.5C (50Amps) |
| Max Discharge | 1C (100 Amps) |
| Size | 116*48*160mm |
| Cycle life | 5300 times |
| Terminal | M6 |
| Internal Resistance | 0.25 – 0.3mΩ |
| Capacity | 100Ah |
| Charge Temperature | 0°C ~ 45°C |
