Description

Victron MultiPlus-II 48/5000/70-50 + 48v 16kwh Battery Bundle

1 x Victron MultiPlus-II 48/5000/70-50
1 x 48v 16kwh Battery Bundle

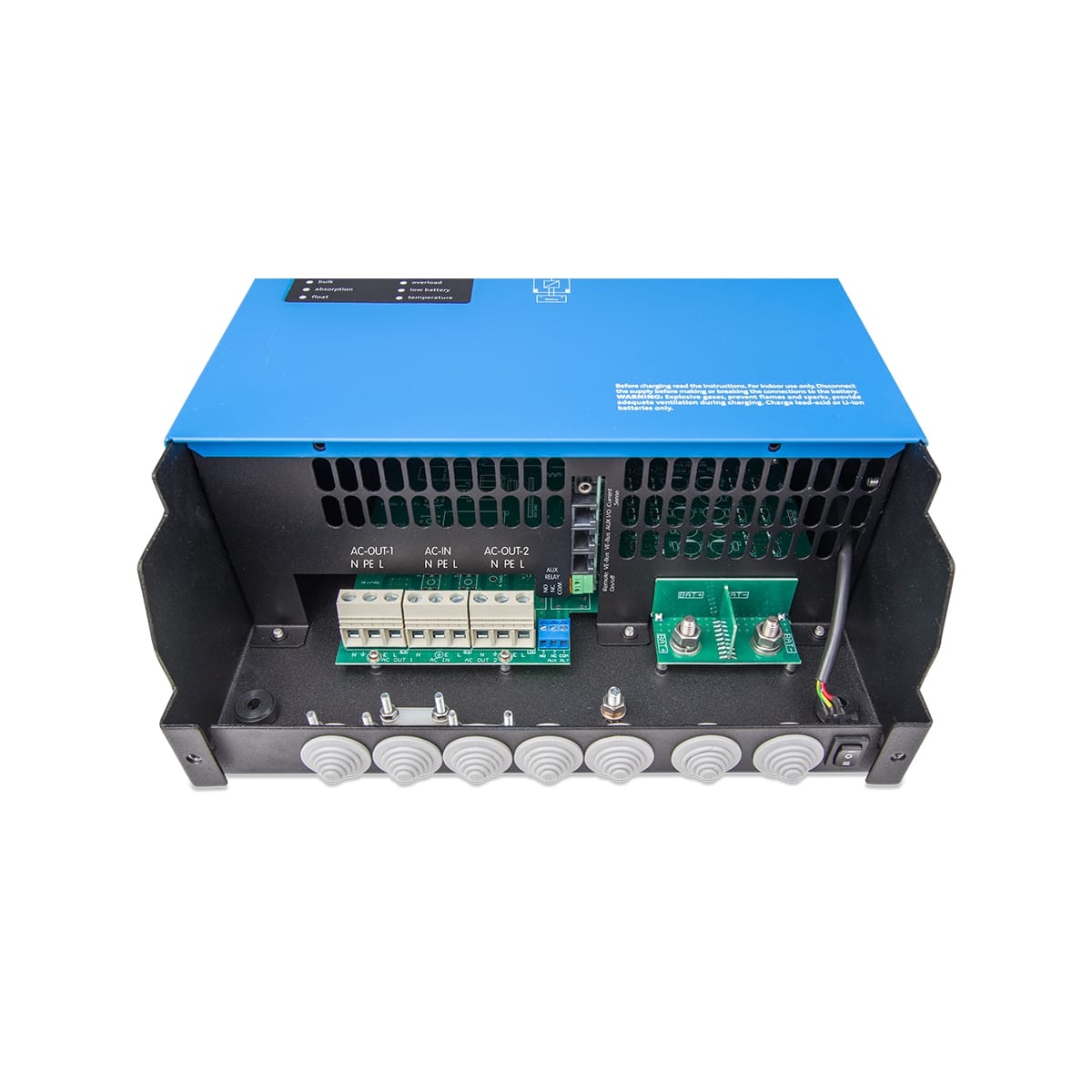

Victron MultiPlus-II 48/5000/70-50

The Victron MultiPlus-II Inverter Charger 48/5000/70-50 combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist:

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

48V 314Ah 16kwh 8000 cycles LiFePo4 Battery

Using the newest generation 314ah (330+ah) capacity cells from EVE Energy, this battery is the ultimate in value. Featuring the latest and greatest inverter support BMS from JK BMS, you can rest assured you have the absolute best battery on the market today, especially if you have Victron, DEYE or Growatt Inverters. The 3 most popular off grid solutions in Australia. In most cases you can use the Pylontech protocol with your existing inverter.

Compatible with Victron & Growatt Inverters
