Description

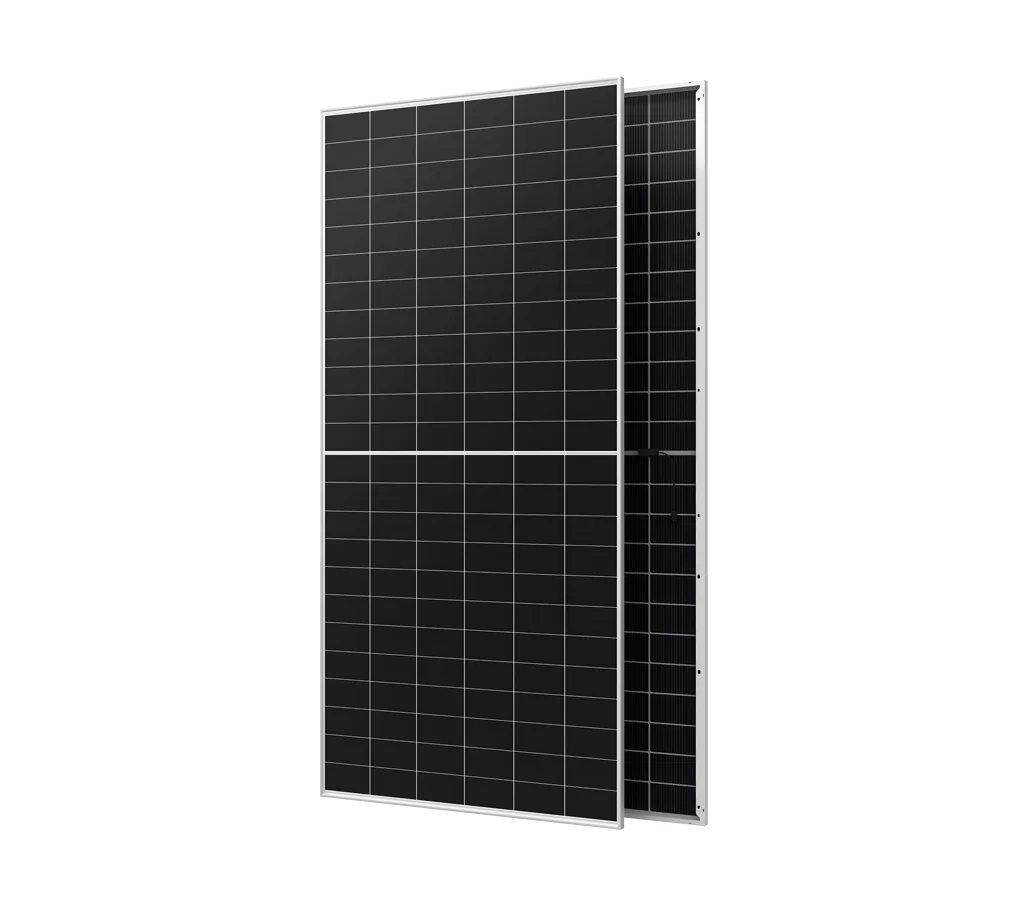

AIKO 500 Watt 108 Cell NEOSTAR 3P54 Mono-Glass 30mm Black Frame N-Type ABC Solar Panel With Shade Optimisation
High-efficiency N-Type ABC solar panel with advanced shade optimisation.
The AIKO 500W NEOSTAR 3P54 solar panel is built for customers who want maximum power from limited roof space. Using AIKO’s N-Type ABC (All Back Contact) cell technology, the panel delivers very high conversion efficiency, a clean black-frame appearance, and strong real-world performance in partial shade and hot Australian conditions.
Key Features
- 500W power output from a compact 108-cell module.
- N-Type ABC cell technology with no front-side busbars for improved light absorption.
- Shade optimisation to reduce power loss from partial shading.
- Mono-glass construction with a 30mm black anodised frame.
- Up to 25.0% module efficiency under Standard Test Conditions.
- Low long-term degradation: up to 1% in the first year and up to 0.35% annually after that.
- 30-year performance warranty.
- IP68-rated junction box for long-term outdoor reliability.
Datasheet Highlights
| Model / SKU | AIKO-A500-MCE54Mw |
|---|---|
| Rated Power | 500W |
| Cell Technology | N-Type ABC (All Back Contact) |
| Module Type | Mono-glass, black frame |
| Frame | 30mm black anodised frame |
| Dimensions | 1722 x 1134 x 30mm |
| Glass | 3.2mm tempered glass |
| Junction Box | IP68 |
Ideal Applications
- Residential rooftop solar systems.
- Homes with partial shading from trees, chimneys, antennas, or complex rooflines.
- Premium black-frame installations.
- Space-constrained roofs where higher wattage panels reduce total panel count.
- Hybrid and battery-ready solar systems.
The AIKO 500W NEOSTAR 3P54 panel is a premium option for installations where energy yield, shade tolerance, roof-space efficiency, and long-term reliability matter more than simply choosing the lowest upfront panel cost.
