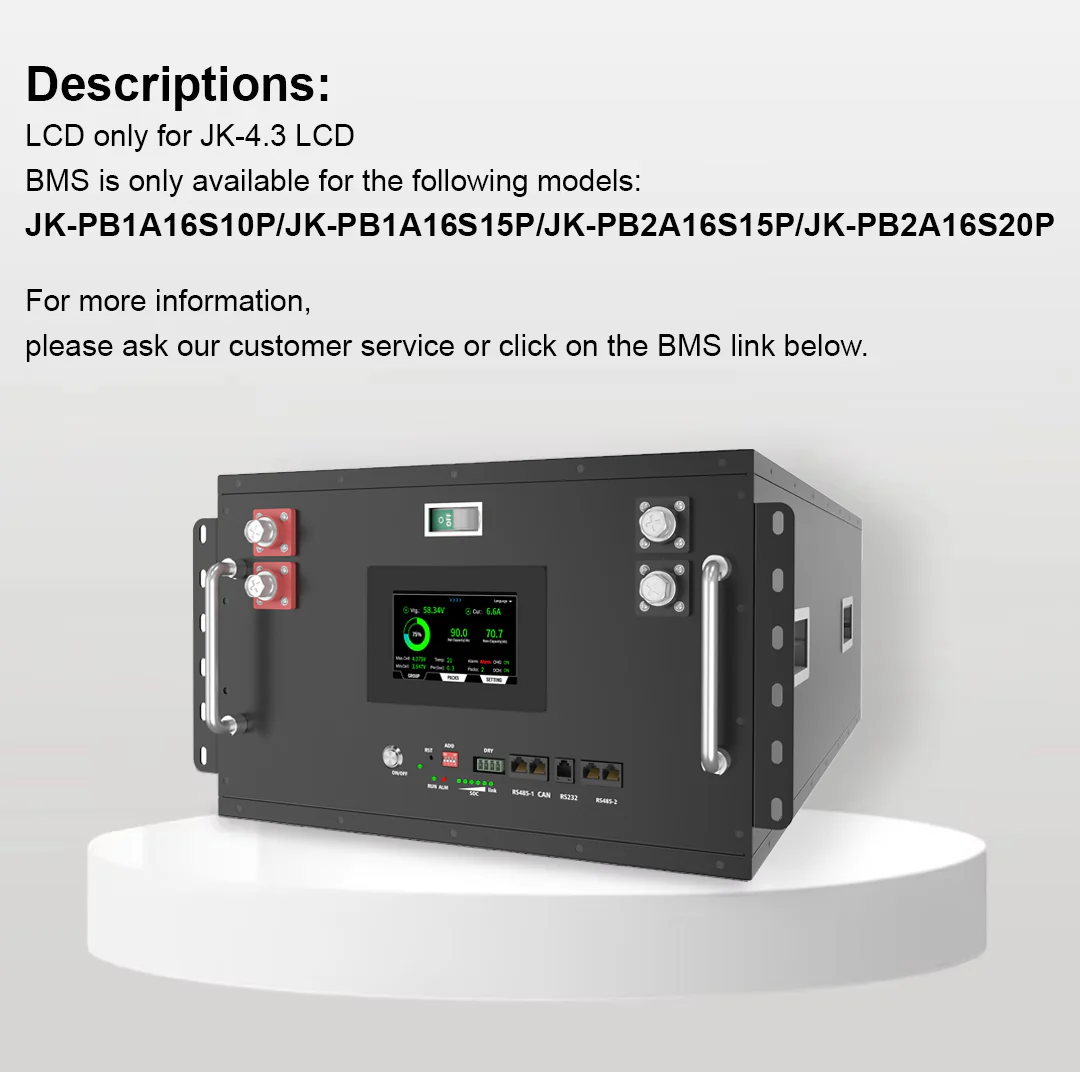

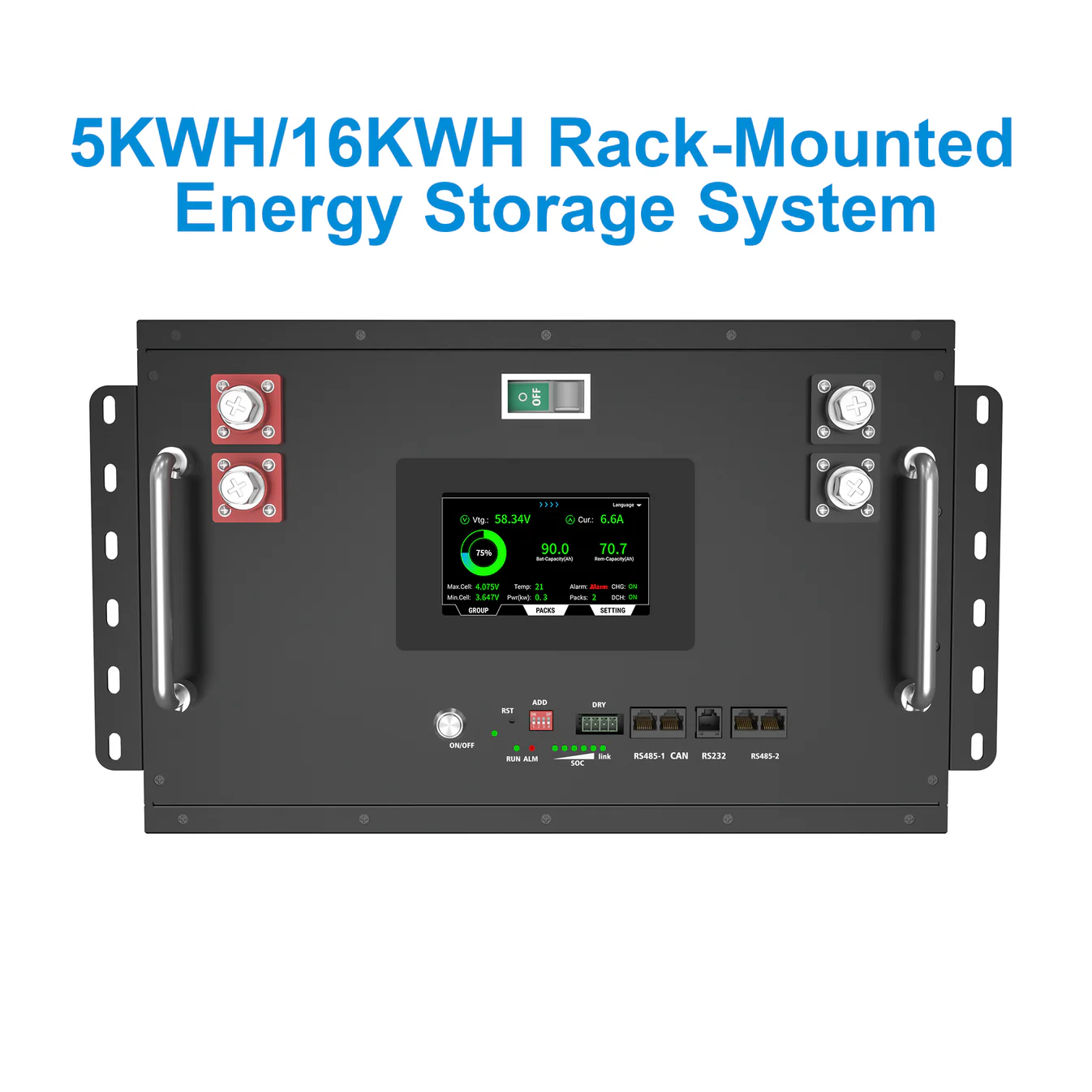

JKBMS ESS rack-mounted DIY battery cabinet front view
  • JKBMS ESS rack-mounted DIY battery cabinet front view

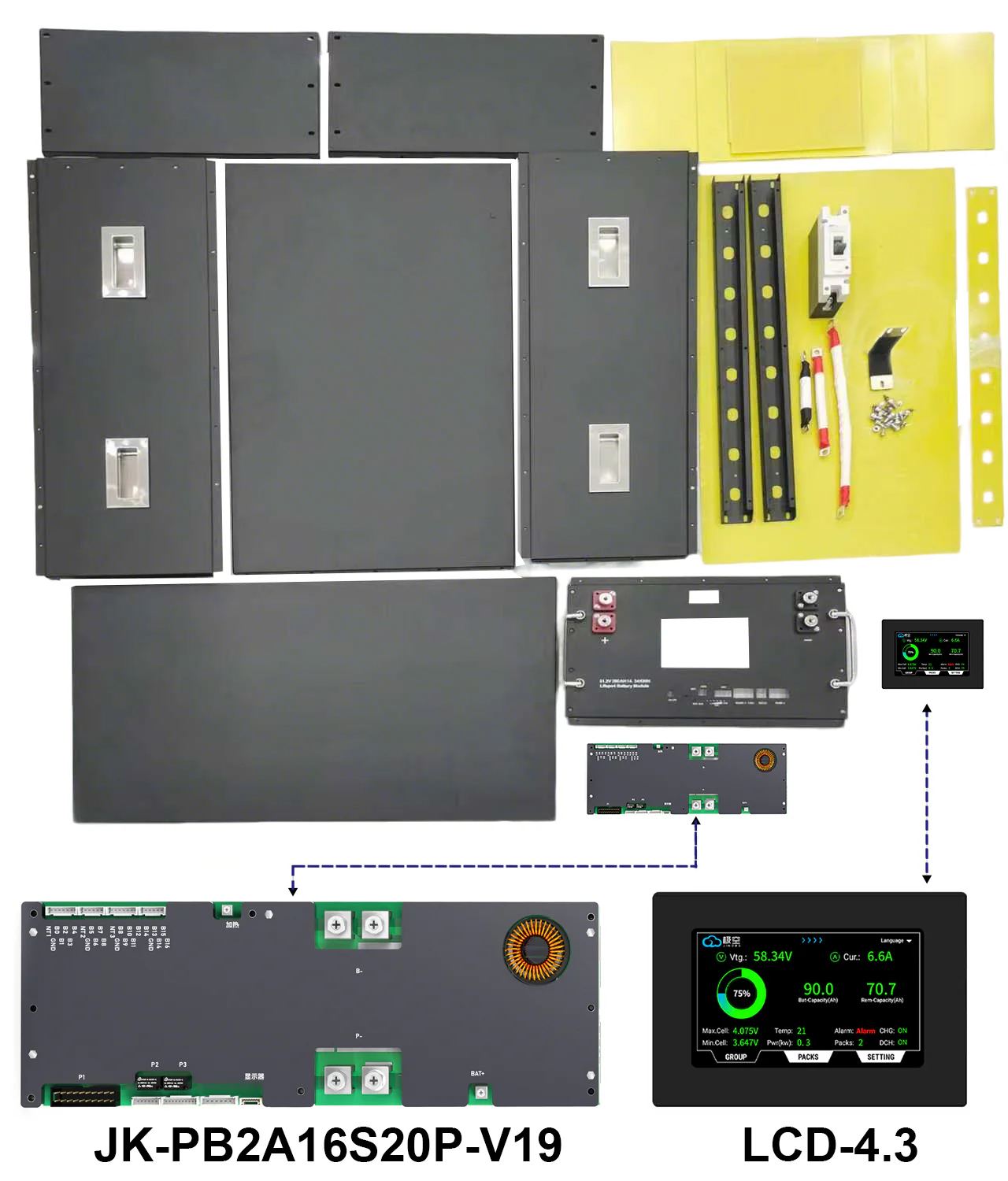

  • JKBMS ESS DIY cabinet kit package contents with JK BMS and LCD

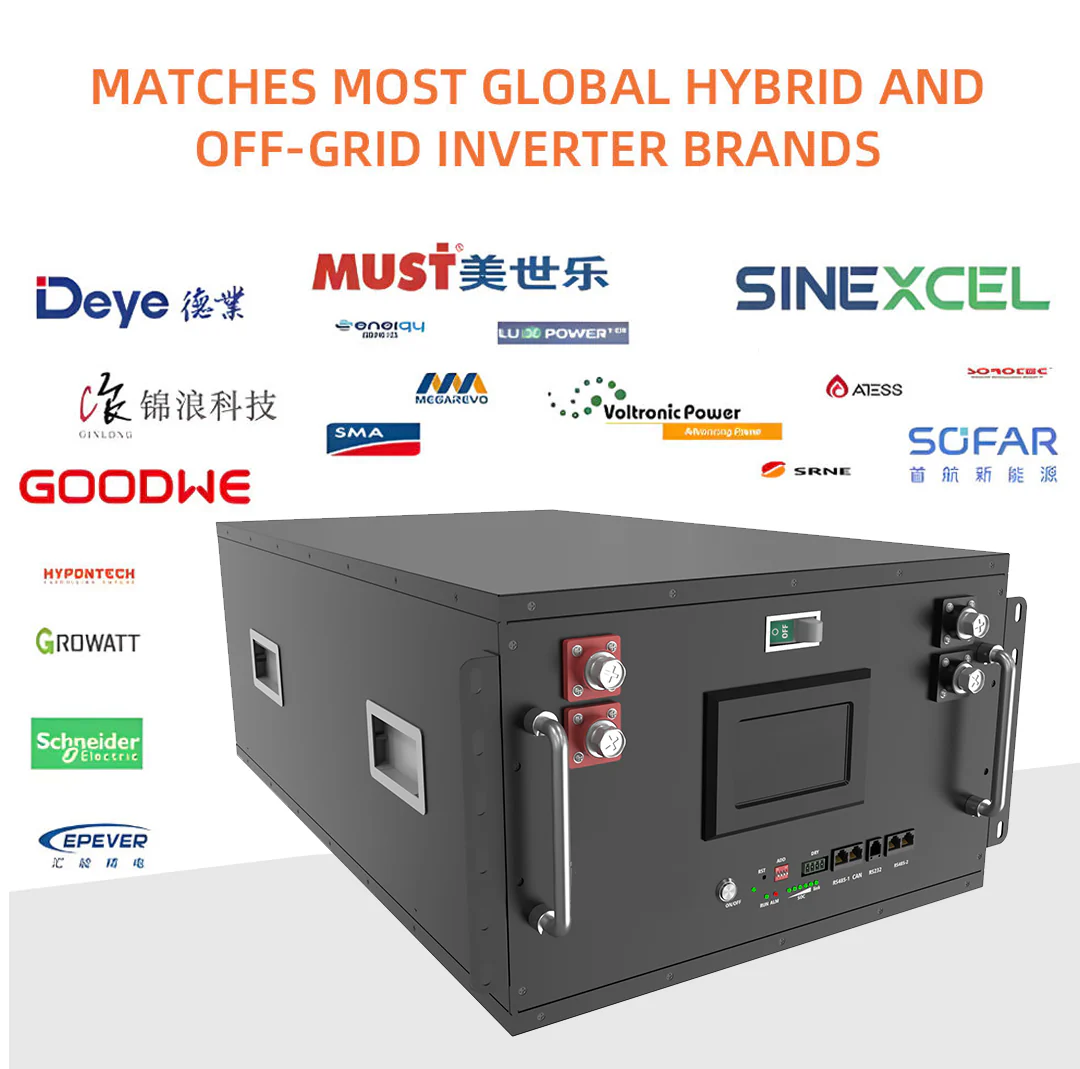

  • JKBMS ESS inverter communication support information

JKBMS ESS 51.2V 314Ah LiFePO4 DIY Battery Case Kit – Cells Not Included

Price range: $399.00 through $650.00

In Stock now : Rack-mounted 51.2V LiFePO4 DIY battery case kit for compatible 314Ah-class 16S cells. Choose case only (no BMS or LCD) for $399, with a JK V19 200A BMS for $600, or with a JK V19 300A BMS for $650. Both BMS options include a 4.3 inch LCD free. Battery cells are not included. Expected delivery is 1–5 days after dispatch.

$399.00
$600.00
$650.00
Clear
SKU: JKBMS-ESS-6U-BMS-LCD Categories: , , Tags: , , Brand:

Description

JKBMS ESS 51.2V 314Ah LiFePO4 DIY Battery Case Kit – Cells Not Included

This rack-mounted metal case is designed for DIY solar storage builds using compatible 16S LiFePO4 cells. Choose the case without a BMS or LCD, or select a kit with a compatible JK V19 200A or 300A active-balance BMS and a 4.3 inch LCD included free. Battery cells are not included.

Choose your BMS option

  • Case only — no BMS or LCD — $399: Case kit without a BMS or LCD.
  • Case + 200A JK BMS + LCD — $600: Case kit with the JK-PB2A16S20P V19 200A BMS and a 4.3 inch LCD included free.
  • Case + 300A JK BMS + LCD — $650: Case kit with the JK-PB2A16S30P V19 300A BMS and a 4.3 inch LCD included free.

Delivery: In stock. Expected delivery is 1–5 days after dispatch.

Key features

  • 51.2V 16S LiFePO4 cabinet platform for 314Ah-class prismatic cells.
  • Compatible with JK-PB2A16S20P V19 200A and JK-PB2A16S30P V19 300A BMS options.
  • Rack-mounted metal cabinet format for a neat home or workshop energy-storage build.
  • External on/off switch, circuit protection hardware and cabinet assembly components shown in the kit images.

Important before ordering

  • Battery cells are not included.
  • Check your cell dimensions and terminal layout before committing to a build.
  • Final assembly should be completed by a competent person familiar with LiFePO4 battery safety, high-current DC systems and inverter integration.

Specifications

Product typeRack-mounted DIY LiFePO4 battery cabinet kit
Nominal system voltage51.2V
Cell configuration16S LiFePO4
Target capacity314Ah-class build, approximately 16kWh when fitted with suitable cells
Compatible cell capacities noted by supplier280Ah, 304Ah, 306Ah, 314Ah and 334ah 345Ah LiFePO4 cells
BMSCase only: no BMS included. BMS packages: JK-PB2A16S20P V19 (200A) or JK-PB2A16S30P V19 (300A), according to the selected option.
DisplayCase only: no LCD included. Both BMS options include a 4.3 inch LCD free.
Cabinet dimensions472 x 750 x 270 mm
Enclosure weight22.2 kg without battery cells
Protection ratingIP20 indoor use
Operating humidity10% – 85%
Battery cells includedNo

Additional information

Weight22.2 kg
Dimensions75 × 47.2 × 27 cm
Nominal voltage

51.2V

Cell configuration

16S LiFePO4

Supported cell capacities

280Ah, 304Ah, 306Ah, 314Ah, 340Ah

BMS

Case only — no BMS or LCD, Case + 200A JK BMS + LCD, Case + 300A JK BMS + LCD

Display

4.3 inch LCD

Battery cells included

No
