Sungrow SBH400

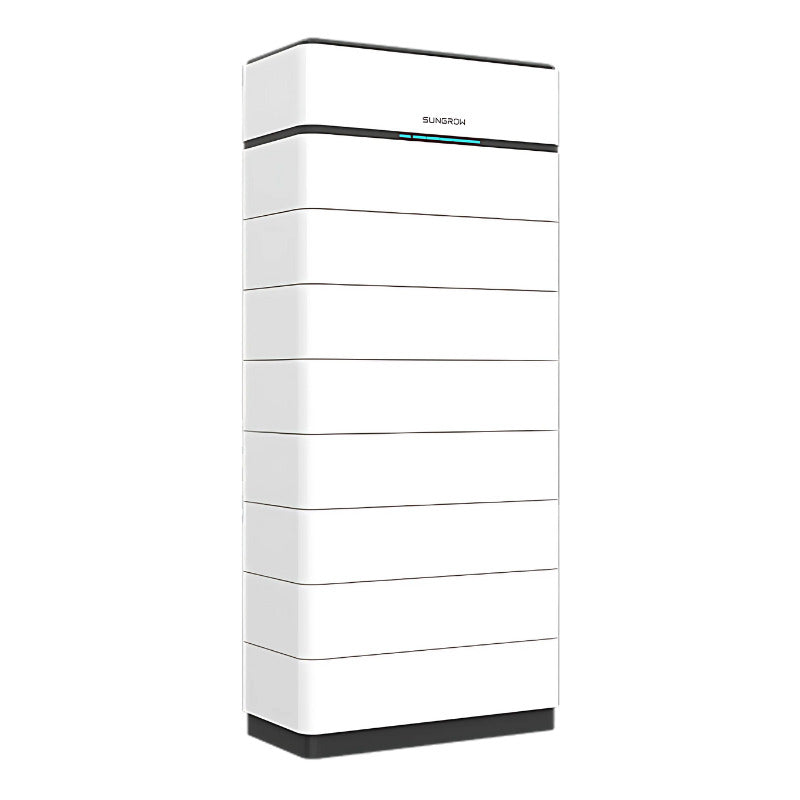

  • Sungrow SBH400
  • Sungrow SBH400 side view

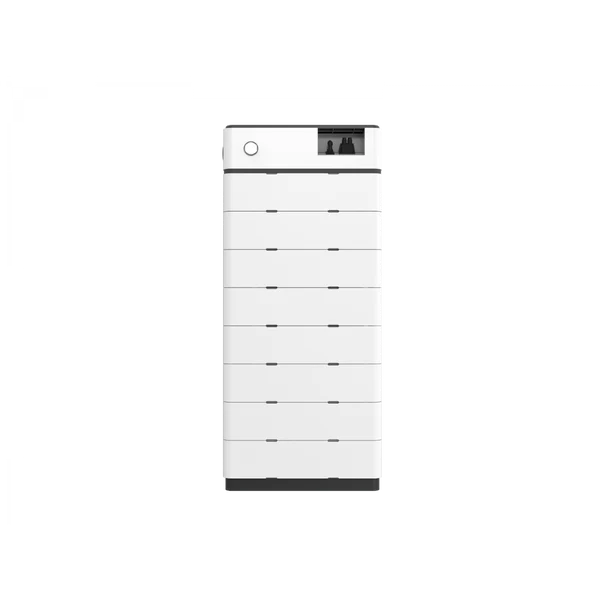

  • Sungrow SBH400 back view

Sungrow SBH400 40kWh Installed Battery System – SH10T 10kW Three Phase

$23,999.00

Battery rebate estimate Federal Cheaper Home Batteries Program
$6,232.00
Estimated STCs
164
Eligible capacity cap
40.00 kWh
STC factor
6.8

Estimate only. Final discount depends on install date, verified usable capacity, CEC-approved equipment, accredited installation, solar PV eligibility, STC market/admin handling, and official REC Registry calculation.

Availability: Contact us for current stock.

SKU: SBH400 Categories: , , , , , Tags: , , Brand:

Description

Sungrow SBH400 40kWh Installed Battery System – SH10T 10kW Three Phase

The Sungrow SBH400 40kWh Installed Battery System – SH10T 10kW Three Phase is the flagship high-capacity configuration in Sungrow’s latest generation of high-voltage Lithium Iron Phosphate (LFP) energy storage. Designed for large residential properties and light commercial applications in Australia, this system provides a robust 40 kWh nominal and usable energy in a single stack.

Product Overview: Sungrow SBH400 40kWh Installed Battery System – SH10T 10kW Three Phase

The SBH series represents a significant leap from the previous SBR range, offering higher power density and faster charging rates. The 40kWh system consists of eight 5kWh modules stacked vertically with a master control accessory kit.1

Key Features

  • High Performance: Supports up to 50A continuous charge and discharge current, with peak power exceeding 25kW (depending on inverter pairing).2

  • Premium Safety: Utilizes Prismatic LFP (Lithium Iron Phosphate) cells, the safest chemistry for home energy storage, with an IP55 rating for both indoor and outdoor installation (outdoor requires additional weather shielding)

  • Modular & Scalable: The system is “plug-and-play” with no internal wiring between modules. While this stack provides 40kWh, up to four stacks can be paralleled for a massive 160kWh total capacity.

  • High Voltage Efficiency: Operates at a nominal voltage of 563.2V for the 8-module stack, reducing energy loss during DC-to-AC conversion.

  • Warranty: 10-year full parts and labor warranty

Technical Specifications (SBH400)

Feature Specification
Usable Energy 40 kWh
Nominal Voltage 563.2 V
Max. Output Power 28.16 kW
Operating Temperature Charge: 0°C to 50°C / Discharge: -20°C to 50°C
Dimensions (WxHxD) 675 x 1540 x 350 mm
Weight 376 kg (Battery stack)

Bundle Includes:

  • 1 × Sungrow SBH High Voltage LFP Battery Accessory Kit
  • 8 × Sungrow SBH 5.0kWh High Voltage LFP Modular Battery Units (40kWh nominal / 40kWh usable)
  • 1 × Sungrow 10kW SH10T three-phase hybrid inverter
  • Standard installation

Installed package price: $23,999 after STC credit. Full supply price before STC credit: $30,231.

Included inverter

This 8-module SBH400 installed battery system includes the Sungrow SH10T hybrid inverter.

Additional information

Voltage

High Voltage
Chemistry

LiFePO4
Certification

VPP Ready
Use Case

Home Battery, On-grid
Brand

Sungrow
Rebate Eligible

Yes
Installed Package

Yes
Capacity

40kWh
Usable Capacity

40.00kWh
Inverter model

SH10T
Electrical phase

Three phase

SBH200/ 250/300/350/400

Download

SBH200/ 250/300/350/400
