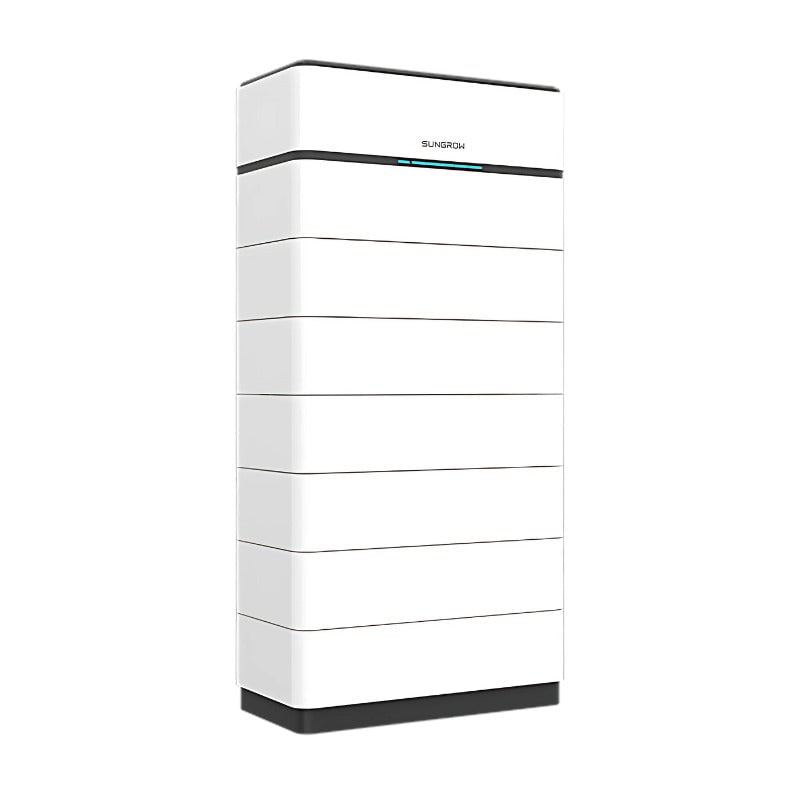

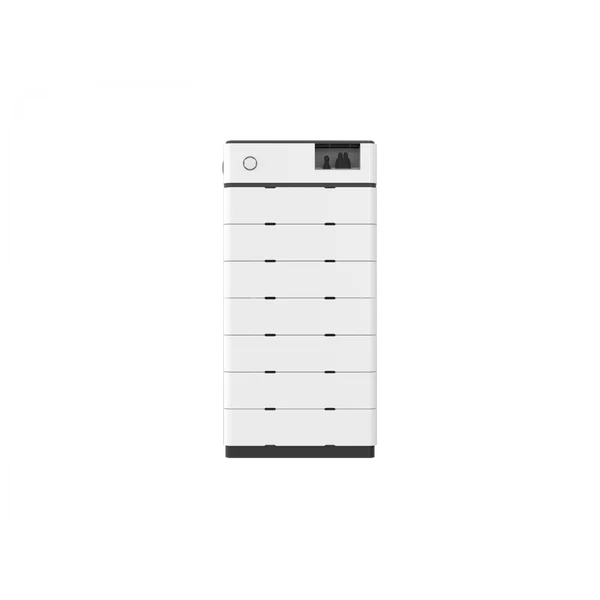

Sungrow SBH350 35kWh Installed Battery System – SH10T 10kW Three Phase
The Sungrow SBH350 35kWh Installed Battery System – SH10T 10kW Three Phase is a high-voltage Sungrow LFP battery configuration for residential and light commercial energy storage. This bundle is built from Sungrow SBH 5.0kWh battery modules plus the SBH high-voltage accessory kit.
Product Overview: Sungrow SBH350 35kWh Installed Battery System – SH10T 10kW Three Phase
The SBH series is Sungrow’s modular high-voltage lithium iron phosphate battery platform. The SBH350 configuration provides 35 kWh nominal and usable energy in a stackable, plug-and-play battery system.
Key Features
- High performance: Supports up to 50A continuous charge and discharge current.
- Premium safety: Lithium iron phosphate chemistry with IP55-rated battery hardware.
- Modular design: Stackable SBH modules with no internal cabling between battery modules.
- Scalable system: Supports 4 to 8 modules per stack, with up to four stacks in parallel.
- Warranty: 10-year warranty when installed and registered according to Sungrow requirements.
Technical Specifications (SBH350)
| Feature | Specification |
| Usable Energy | 35 kWh |
| Nominal Voltage | 492.8 V |
| Max. Output Power | 24.64 kW |
| Operating Temperature | Charge: 0C to 50C / Discharge: -20C to 50C |
| Dimensions (WxHxD) | 675 x 1380 x 350 mm |
| Weight | 331 kg (Battery stack) |
Bundle Includes
- 1 × Sungrow SBH High Voltage LFP Battery Accessory Kit
- 7 × Sungrow SBH 5.0kWh High Voltage LFP Modular Battery Units (35kWh nominal / 35kWh usable)
- 1 × Sungrow 10kW SH10T three-phase hybrid inverter
- Standard installation
Installed package price: $21,699 after STC credit. Full supply price before STC credit: $27,741.
Included inverter
This 7-module SBH350 installed battery system includes the Sungrow SH10T hybrid inverter.
