Description

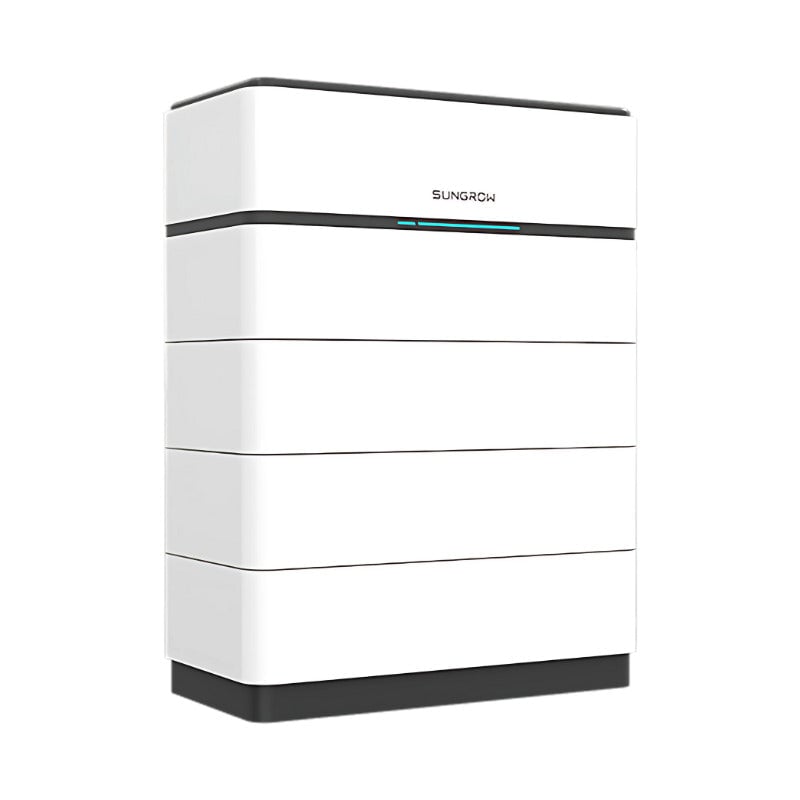

Sungrow SBH200 20kWh Installed Battery System – SH10RS 10kW Single Phase
The Sungrow SBH200 20kWh Installed Battery System – SH10RS 10kW Single Phase is a high-voltage Sungrow LFP battery configuration for residential and light commercial energy storage. This bundle is built from Sungrow SBH 5.0kWh battery modules plus the SBH high-voltage accessory kit.
Product Overview: Sungrow SBH200 20kWh Installed Battery System – SH10RS 10kW Single Phase
The SBH series is Sungrow’s modular high-voltage lithium iron phosphate battery platform. The SBH200 configuration provides 20 kWh nominal and usable energy in a stackable, plug-and-play battery system.
Key Features
- High performance: Supports up to 50A continuous charge and discharge current.
- Premium safety: Lithium iron phosphate chemistry with IP55-rated battery hardware.
- Modular design: Stackable SBH modules with no internal cabling between battery modules.
- Scalable system: Supports 4 to 8 modules per stack, with up to four stacks in parallel.
- Warranty: 10-year warranty when installed and registered according to Sungrow requirements.
Technical Specifications (SBH200)
| Feature | Specification |
| Usable Energy | 20 kWh |
| Nominal Voltage | 281.6 V |
| Max. Output Power | 14.08 kW |
| Operating Temperature | Charge: 0C to 50C / Discharge: -20C to 50C |
| Dimensions (WxHxD) | 675 x 900 x 350 mm |
| Weight | 196 kg (Battery stack) |
Bundle Includes
- 1 × Sungrow SBH High Voltage LFP Battery Accessory Kit
- 4 × Sungrow SBH 5.0kWh High Voltage LFP Modular Battery Units (20kWh nominal / 20kWh usable)
- 1 × Sungrow 10kW SH10RS single-phase hybrid inverter
- Standard installation
Installed package price: $14,899 after STC credit. Full supply price before STC credit: $19,421.
Included inverter
This 4-module SBH200 installed battery system includes the Sungrow SH10RS hybrid inverter.
