Description

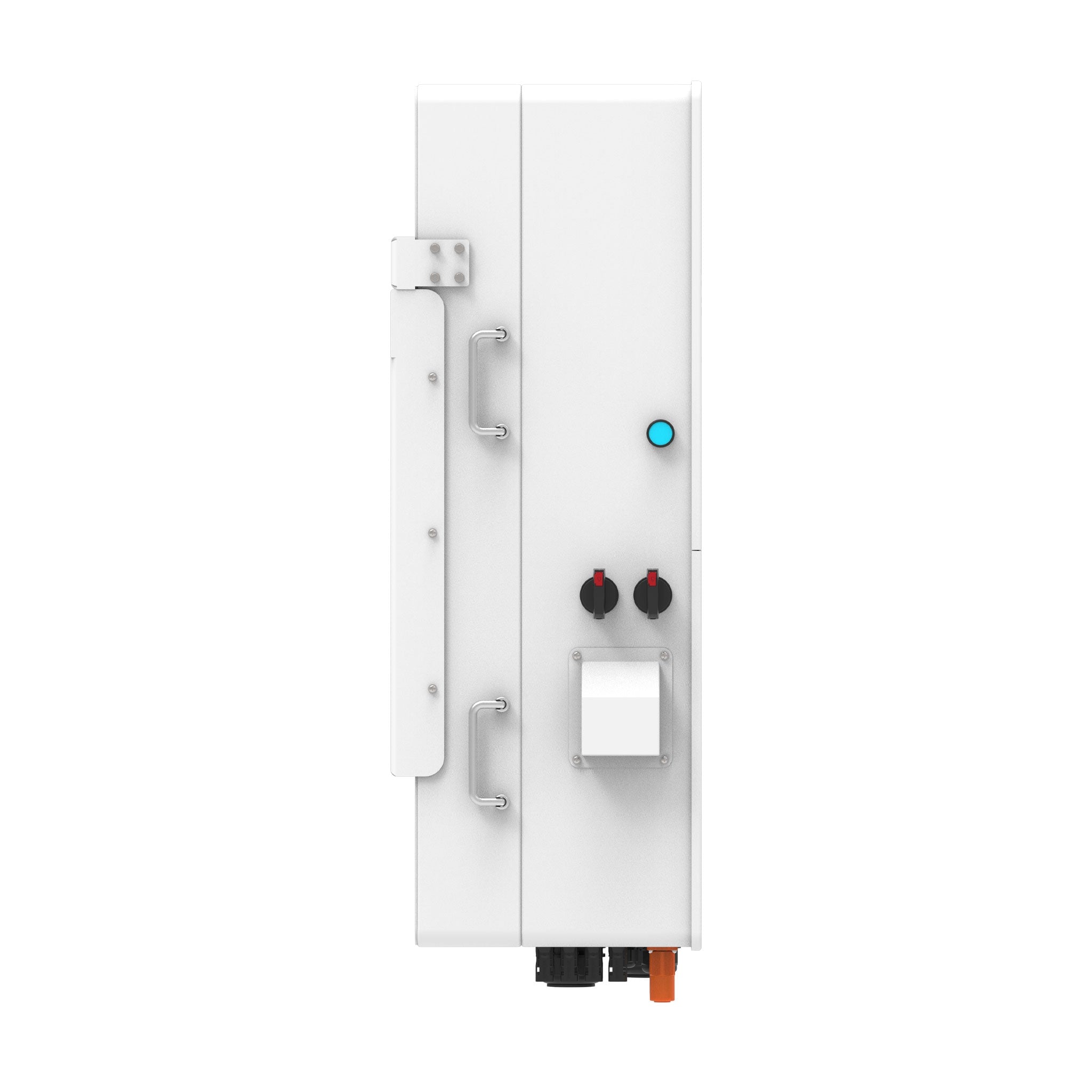

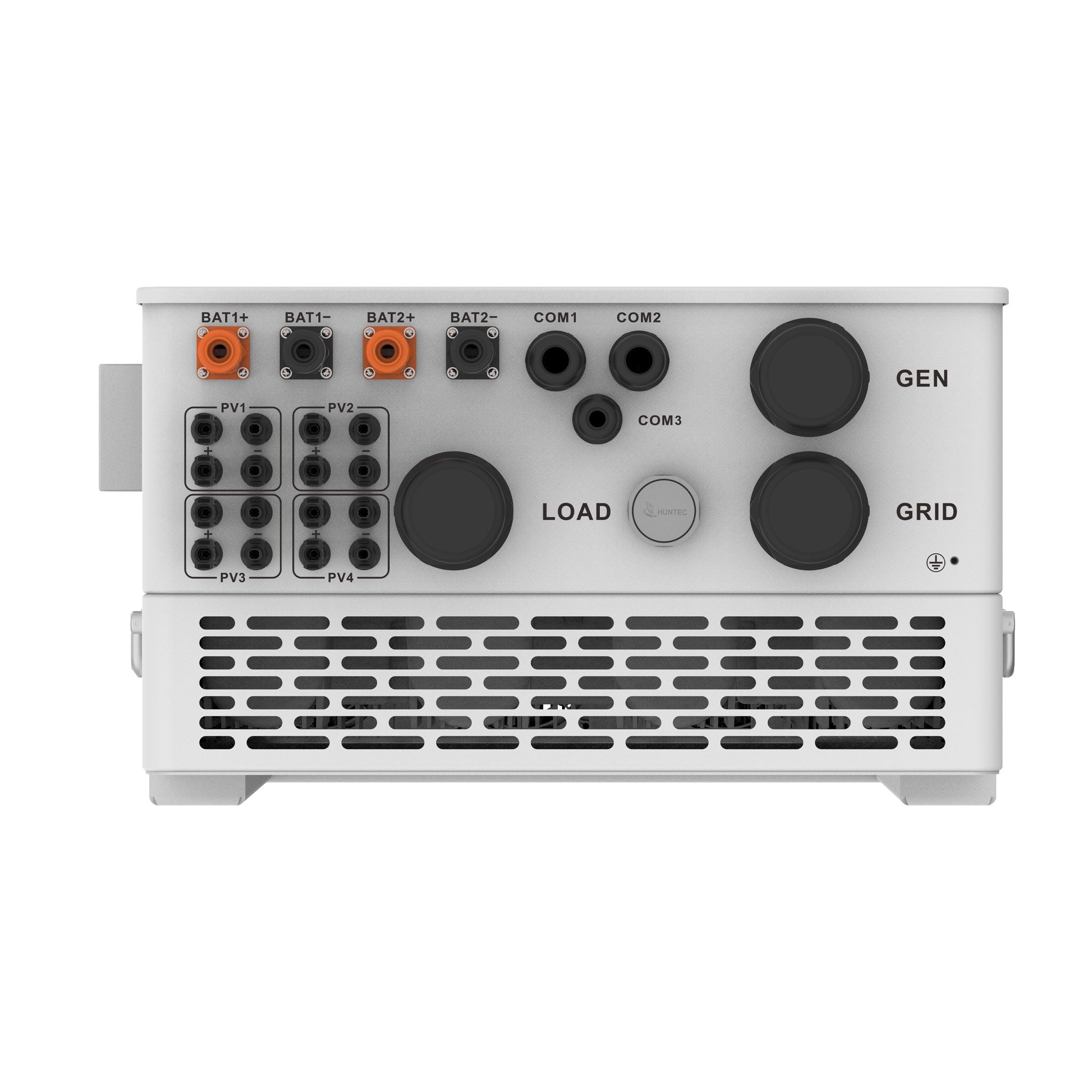

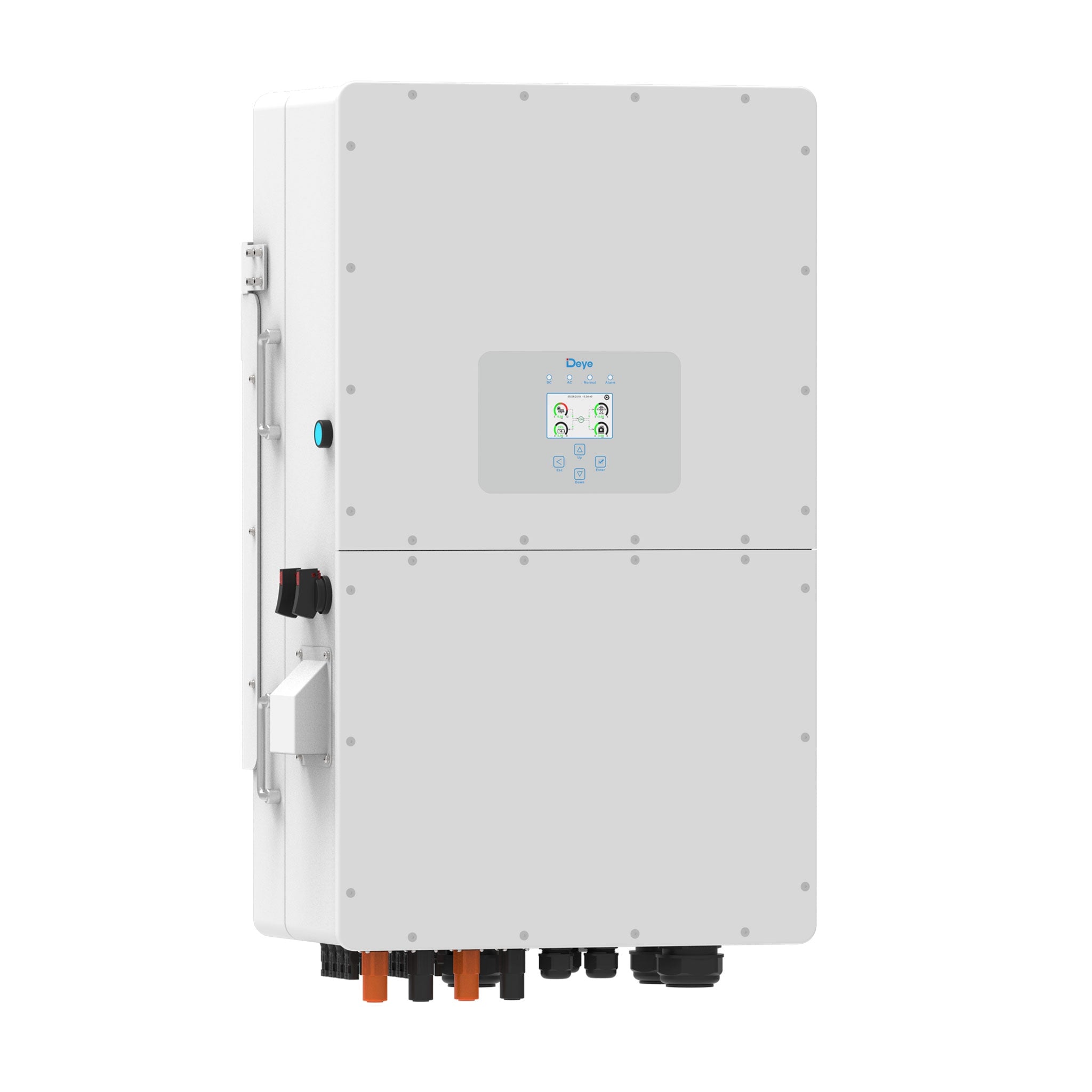

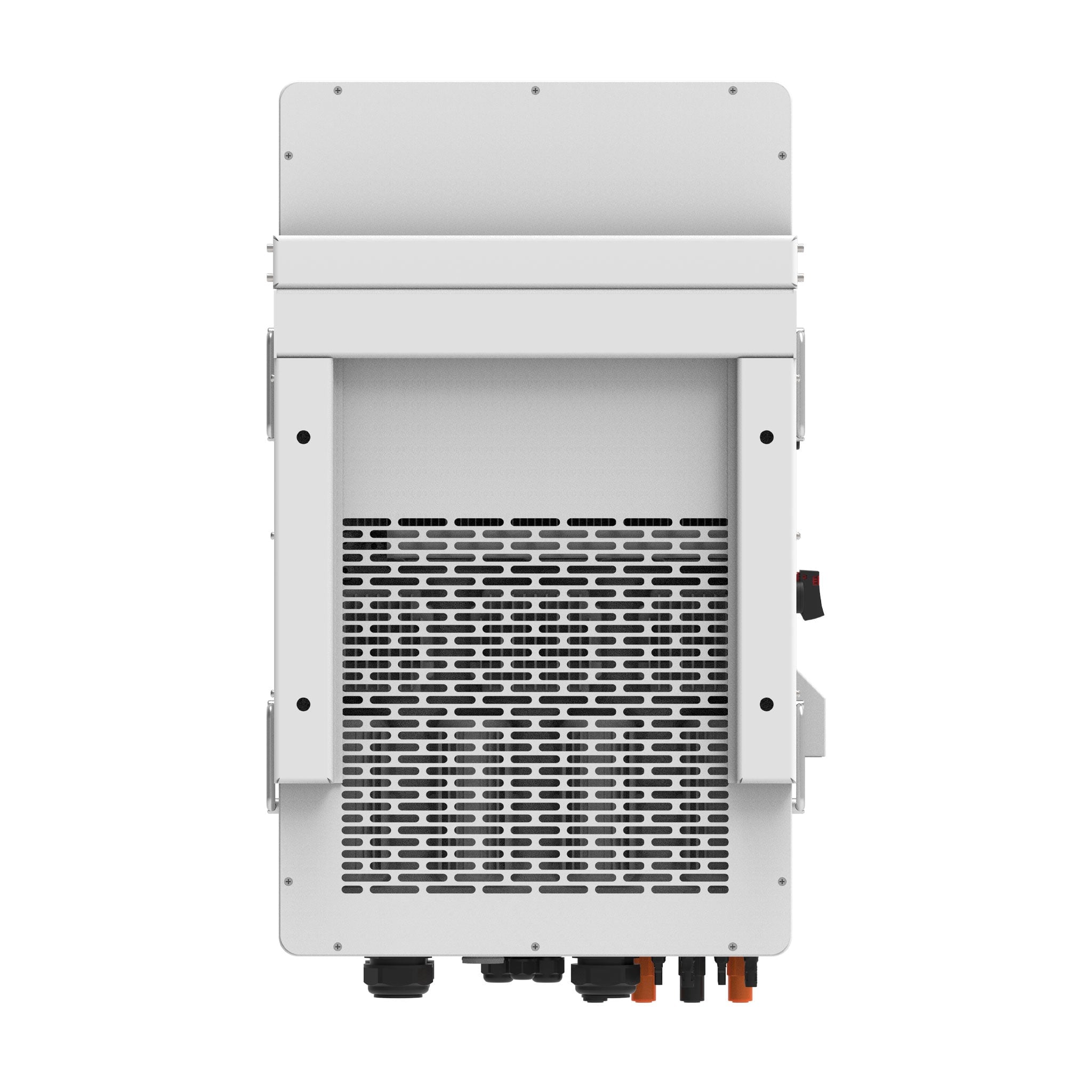

The Deye SUN-29.9K-SG01HP3-AU-BM3 is a 29.9kW three-phase hybrid inverter for commercial properties, farms and larger solar-and-battery installations. It manages solar generation and compatible high-voltage lithium battery storage, with grid-connected and off-grid operating modes available in a correctly designed system.
Key features
- 29.9kW rated AC output for three-phase energy systems.
- 3 independent MPPTs to support flexible solar-array design.
- High-voltage lithium battery connection: 160–800 V DC, with 50 a + 50 a (two battery inputs).
- AC coupling for suitable existing solar systems, plus support for storing energy from a diesel generator.
- Six programmable periods for battery charging and discharging.
- Up to 10 inverters in parallel for supported on-grid or off-grid system designs.
- IP65 enclosure and a manufacturer-listed 10-year warranty, subject to Deye warranty terms.
System design and supply
This listing supplies the inverter. Batteries, battery control equipment, solar panels, site-specific protection, freight and installation are quoted separately unless expressly included in your written quote. Battery compatibility, PV string limits, backup loads, grid-connection requirements and the exact equipment approvals must be confirmed for the proposed installation.
Download the official Deye Australian datasheet
Technical specifications
| Exact model | SUN-29.9K-SG01HP3-AU-BM3 |
|---|---|
| Rated AC input/output active power | 29.9 kW |
| Rated / maximum AC apparent power | 29.9 kVA |
| AC phase / grid connection | Three phase; 3L+N+PE |
| Rated AC voltage | 230/400 V or 240/415 V |
| Rated / maximum AC input/output current | 43.4 A |
| Maximum continuous AC passthrough (grid to load) | 200 A |
| Battery type | Compatible lithium-ion high-voltage battery with BMS communication |
| Battery voltage range | 160–800 V DC |
| Maximum battery charge / discharge current | 50 A + 50 A (two battery inputs) |
| Maximum connected PV array power (PV access) | 50 kW |
| Maximum PV input power | 44.85 kW |
| Maximum PV input voltage | 1,000 V DC |
| PV start-up voltage | 180 V DC |
| MPPT operating voltage range | 150–850 V DC |
| Independent MPPTs | 3 |
| PV strings per MPPT | 2 + 2 + 2 |
| Maximum operating PV input current per MPPT | 36 A |
| Maximum PV short-circuit current per MPPT | 55 A |
| Maximum efficiency | 97.6% |
| European efficiency | 97.0% |
| MPPT efficiency | Greater than 99% |
| Off-grid peak power | 1.5 × rated power for 10 seconds |
| Surge protection | Type II on DC and AC |
| Communications | Wi-Fi, RS485, CAN |
| Display | LCD |
| Ingress protection | IP65 |
| Operating temperature | −40°C to +60°C; power derating above 45°C |
| Maximum installation altitude | 2,000 m |
| Noise | ≤65 dB |
| Cooling | Intelligent air cooling |
| Cabinet dimensions (W × H × D) | 527 × 894 × 294 mm, excluding connectors and brackets |
| Equipment weight | 80 kg |
| Warranty | 10 years, subject to manufacturer terms |
| Manufacturer-listed grid standard | AS/NZS 4777.2 |
| Supply scope | Inverter only; other system equipment and installation quoted separately |
