Description

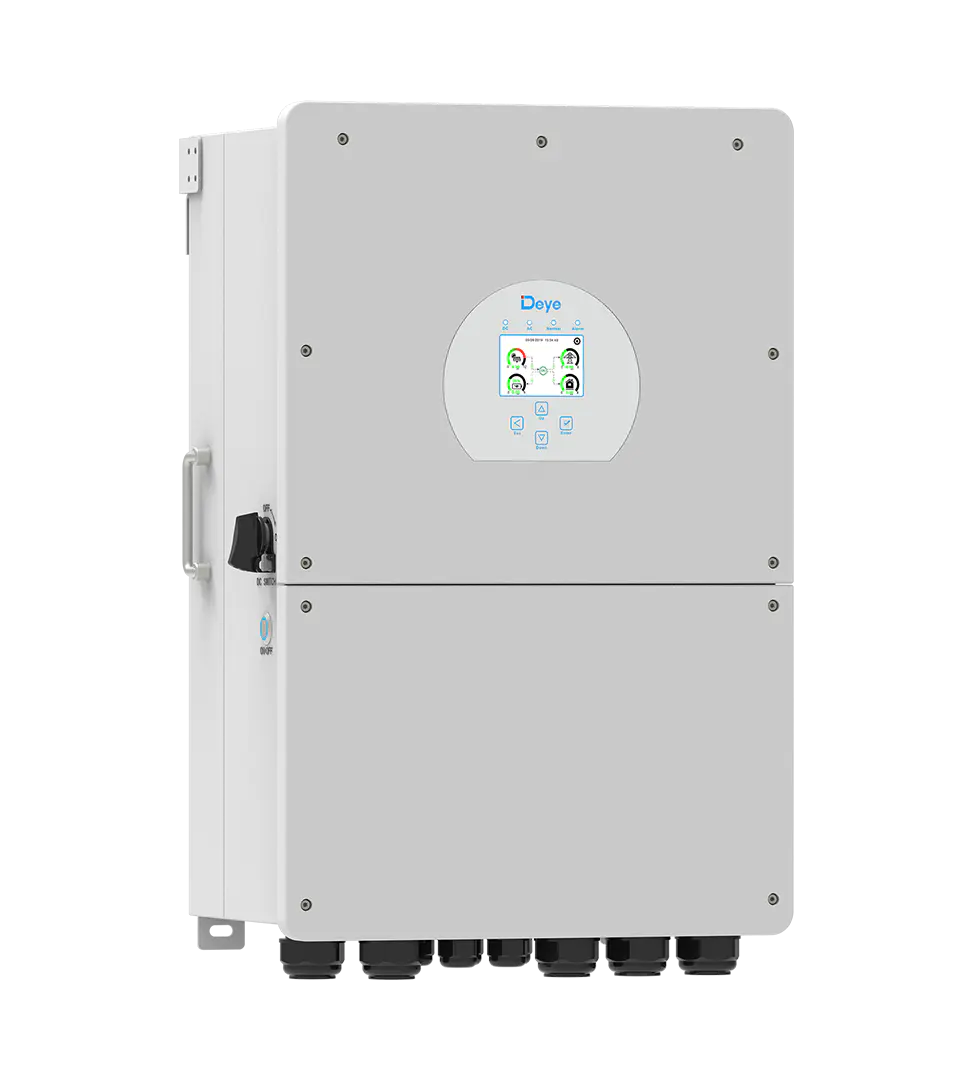

DEYE SUN-16K-SG01LP1-AU
THIS IS NOT A GREY IMPORT like some of the listed models online in Australia which also use the SUN-16K-SG01LP1-AU
AU code at the end of the model number. This means DEYE Australia supports the warranty which means full 10 Year warranty with no issues around downtime, or warranty having to go back to the Chinese or grey importer. DEYE Australia is the official importer.
CEC Certified 16kVA Inverter with 24000W Solar MPPTs
The SUN-16K-SG01LP1-AU solar inverter is a versatile and efficient solution designed for use both on and off the grid in Australia. It provides reliable power conversion for residential and commercial solar installations, ensuring optimal performance in diverse conditions. With its advanced MPPT technology, the SUN-16K-SG01LP1-AU maximizes energy harvest from your solar panels, while its robust design ensures long-term durability and reliability.
Ideal for Australian climates, this inverter offers seamless integration with your solar power system, supporting a variety of applications from homes to small businesses. Whether you’re looking to reduce your electricity bills or ensure a steady power supply in remote locations, the SUN-16K-SG01LP1-AU delivers superior performance and peace of mind.
Key Features:
- Advanced MPPT technology for maximum energy efficiency
- Suitable for both on-grid and off-grid applications
- Robust design for Australian conditions
- Seamless integration with residential and commercial solar systems
- Reliable power supply for remote locations
Experience the power of reliable solar energy with the SUN-16K-SG01LP1-AU and take control of your energy future, both on and off the grid.
| Battery Input Data | |
| Battery Type | Lead-acid or Li-lon |
| Battery Voltage Range (V) | 40~60V |
| Max. Charging Current (A) | 290A |
| Max. Discharging Current (A) | 290A |
| UPS Power (W) | 16000 |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 24000W |
| Max. DC Input Voltage (V) | 500V |
| Start-up Voltage (V) | 150 |
| MPPT Range (V) | 150V~425V |
| Rated DC Input Voltage (V) | 370 |
| PV Input Current (A) | 26A + 26A + 26A |
| Max. PV ISC (A) | 44+44+44 |
| No.of Strings Per MPPT Trackers | 3/2 |
| AC Output Data | |
| Rated AC Output (W) | 16000W |
| AC Output Rated Current (A) | 69.9 |
| Max. Continuous AC Passthrough (A) | 100 |
| Peak Power (off grid) | 2 time of rated power, 5 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) |
| Grid Type | Single Phase |
| DC injection current (mA) | <0.5%1n |
| Backup Data | |
| Backup Power (W) | 14000 |
| Backup Rated Current (A) | 60.9 |
| Backup UPS | 6ms Automatic switchover time |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output Over Voltage Protection | Integrated |
| Surge protection | DC Type || / AC Type || |
| Certifications and Standards | |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC/ Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (x) | -45~60℃, >45℃ derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 51.5 |
| Size (mm) | 464W×798.4H×300D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
| Features | |
| Max. Number of Parallel (PCS) | 16 |
Deye Hybrid 16Kw Inverter Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
