Description

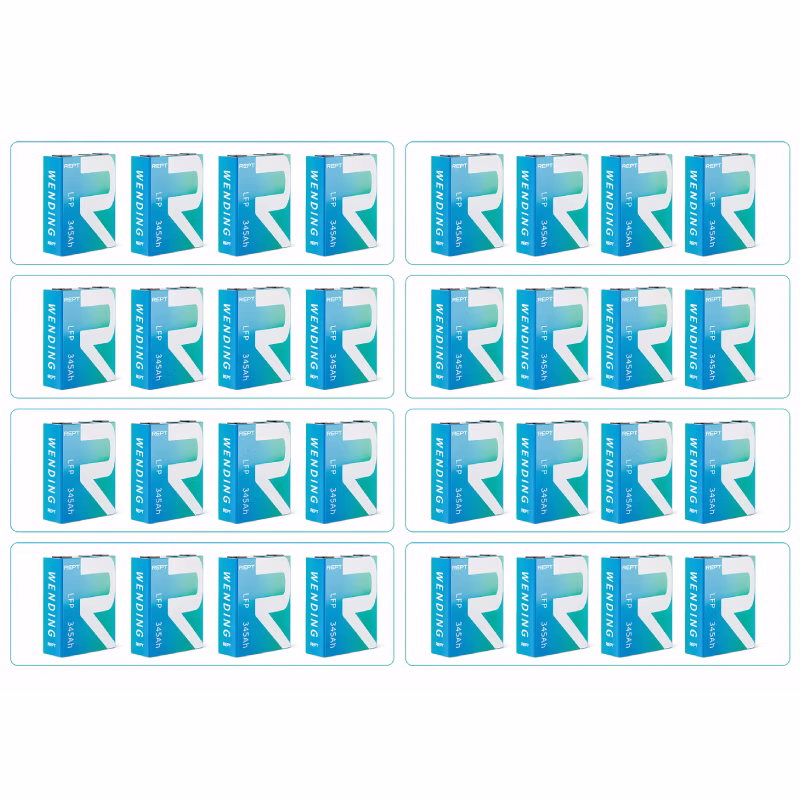

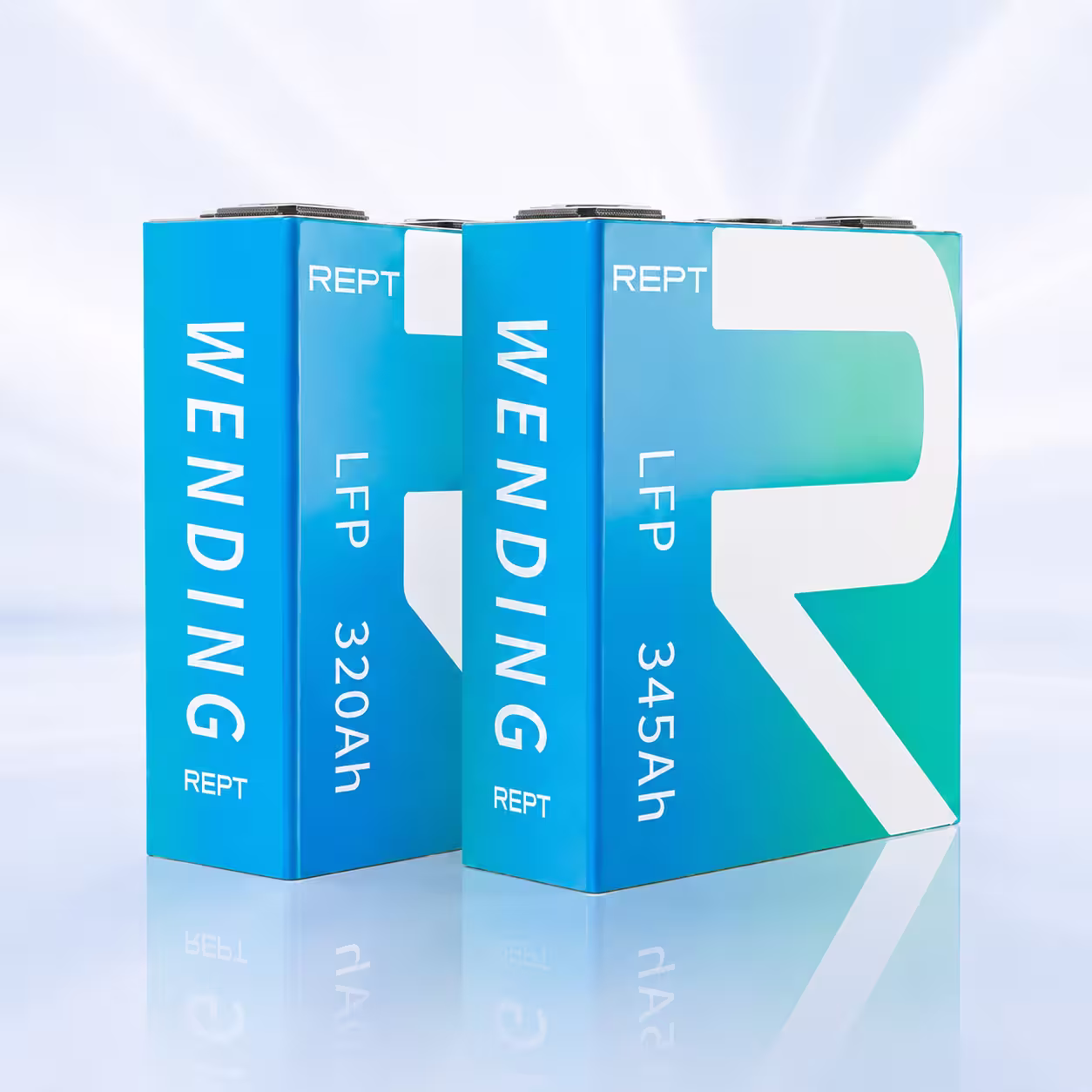

32 x REPT 345Ah LiFePO4 Prismatic Battery Cell (35.2kwh)
345AH is 1100wh – 10% more than 314ah cells (Capacity is about 355AH. These are A grade, quality cells)
These cells are best suited to large battery banks, the C rate dictates that you should not exceed 4kw charging or discharging for each 16 cell group. You need 32 cells for 8kw charge and discharge or 64 cells for 16kw Charge or discharge to ensure long lifespan
Impressed with REPT? They have a growing following because of high quality and excellent capacity.
Currently manufacturing at least 500,000 battery cells per month.
Product applications cover passenger cars, commercial vehicles (city buses, logistics vehicles, trucks, etc.), special purpose vehicles, industrial equipment, construction machinery and equipment, shipping vessels and other propulsion systems, as well as energy storage with wind and solar farms, grid level power storage, backup power system and other energy storage fields.
| Manufacturer: | REPT |
| Model No.: | REPT 345AH A GRADE |
| Typical Voltage: | 3.2V |
| Typical Capacity: | 345Ah |
| AC Impedance Resistance: | ≤0.20mΩ |
| Life Cycle: | 8000 |
| Standard Charge/Discharge Current: IMPORTANT C RATE | 0.25C/0.25C |
| Standard Charge Cut-off Voltage: | 3.65v |
| Standard Discharge Cut-off Voltage: | 2.5v |
| Max Continuous Charge/Discharge Current: | 0.25C/0.25C |
| Pulse Charge/Discharge Current (30s): | 0.5C/0.5C (60s) |
| Recommended SOC Window: | 10%~90% |
| Charging Working Temperature: | 0℃~50℃ |
| Discharging Working Temperature: | -30℃~55℃ |
| Self Discharging Rate: | 3% Month |
| Short Term Storage Temperature (< 1 Month): | -30℃~60℃ |
| Long Term Storage Temperature (< 1 Year): | -10℃~28℃ |
| Storage Moisture: | <95% |
| Cell Dimension: | 204.4*71.7*174mm |
| Cell Weight: | 5600g |
| Certification: | UL, MSDS, UN38.3, CE |
UL 1973
UL 9540A
IEC 62619
