Description

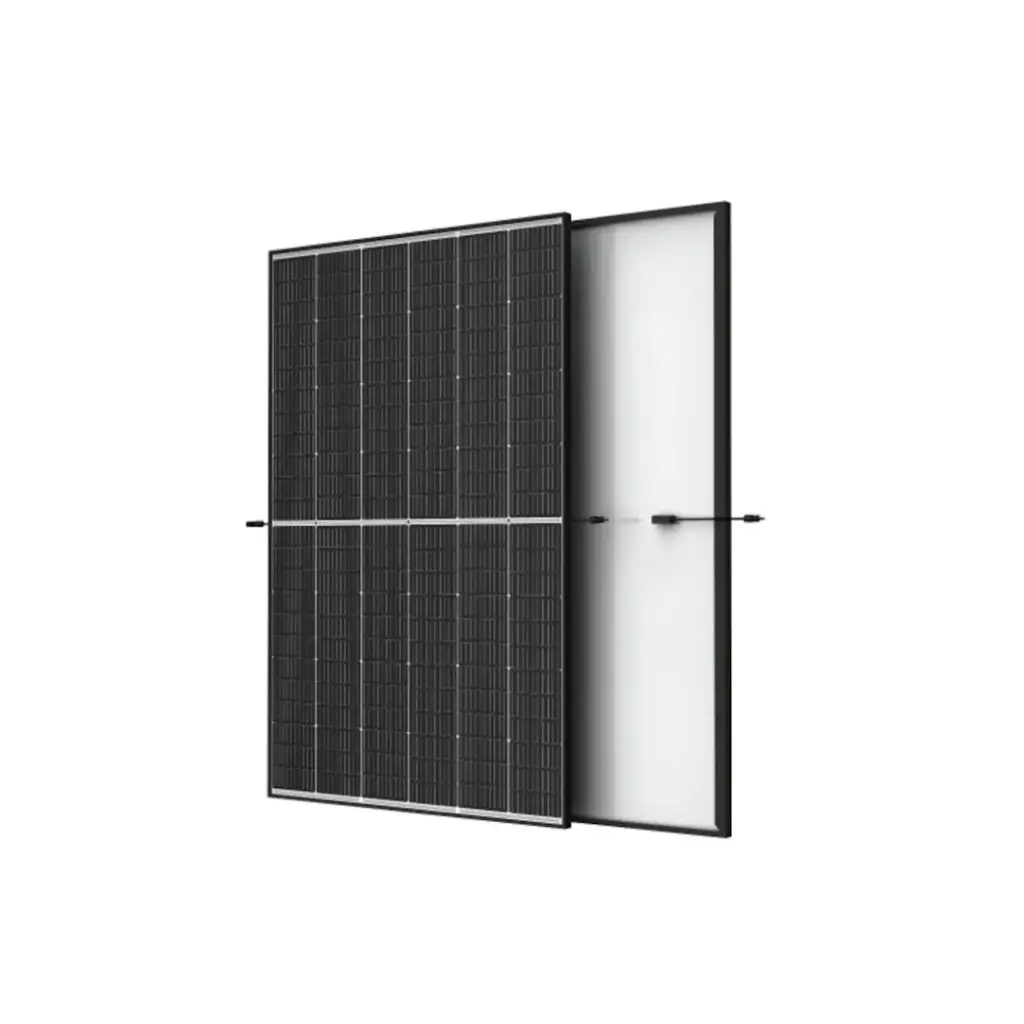

The Trina Solar Vertex S+ 475W is a high-output N-Type dual-glass solar panel built for efficient, long-lasting rooftop solar.
Designed for Australian residential and small commercial systems, this Vertex S+ panel combines Trina Solar’s N-Type i-TOPCon cell technology with a durable glass-glass construction. The result is a compact, premium solar module that delivers strong power from limited roof space while helping protect long-term performance in hot, coastal, and demanding conditions.
With up to 475W output and up to 23.7% module efficiency, the Vertex S+ is a smart choice for customers who want a modern solar system with fewer panels, a clean black-frame look, and reliable energy production over decades. Its low-voltage design can also give installers more flexibility in suitable string designs, helping make better use of compatible inverters and rooftop layouts.
Key Benefits
- 475W high-output panel for strong generation from each roof position.
- N-Type i-TOPCon cells for high efficiency, lower degradation, and better real-world performance.
- Dual-glass construction for improved durability compared with traditional backsheet panels.
- Excellent hot-weather performance with a -0.29%/°C Pmax temperature coefficient.
- Black 30mm frame for a neat, modern rooftop appearance.
- Built for long service life with a 25-year product warranty and 30-year power performance warranty.
Ideal For
- Residential rooftop solar systems
- Homes with limited roof space
- Battery-ready solar installations
- Premium grid-connect and hybrid inverter systems
- Small commercial rooftop solar projects
- Customers wanting a durable N-Type dual-glass panel
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Trina Solar |
| Series | Vertex S+ |
| Model / SKU | TSM-475NEG9RH.28 |
| Rated Power | 475W |
| Module Efficiency | Up to 23.7% |
| Cell Technology | N-Type i-TOPCon monocrystalline |
| Construction | Dual glass |
| Number of Cells | 96 cells |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21.0 kg |
| Frame | 30mm black anodised aluminium alloy |
| Front Glass | 1.6mm AR coated heat-strengthened glass |
| Back Glass | 1.6mm heat-strengthened glass |
| Open Circuit Voltage (Voc) | 37.00V |
| Short Circuit Current (Isc) | 15.97A |
| Maximum Power Current (Imp) | 15.01A |
| Maximum System Voltage | 1500V DC |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Operating Temperature | -40°C to +70°C |
| Mechanical Load | 5400 Pa front / 4000 Pa rear |
| Junction Box | IP68 rated |
| Connector | MC4-EVO2 compatible |
| Cable | 4.0mm2, 1100mm / 1100mm |
| Product Warranty | 25 years |
| Power Performance Warranty | 30 years |
| First-Year Degradation | 1% maximum |
| Annual Degradation Thereafter | 0.4% per year |
| Guaranteed Output at 30 Years | 87.4% |
| Certifications | IEC 61215 / IEC 61730 |
| Suitable Applications | Residential and small commercial rooftop solar |
