Description

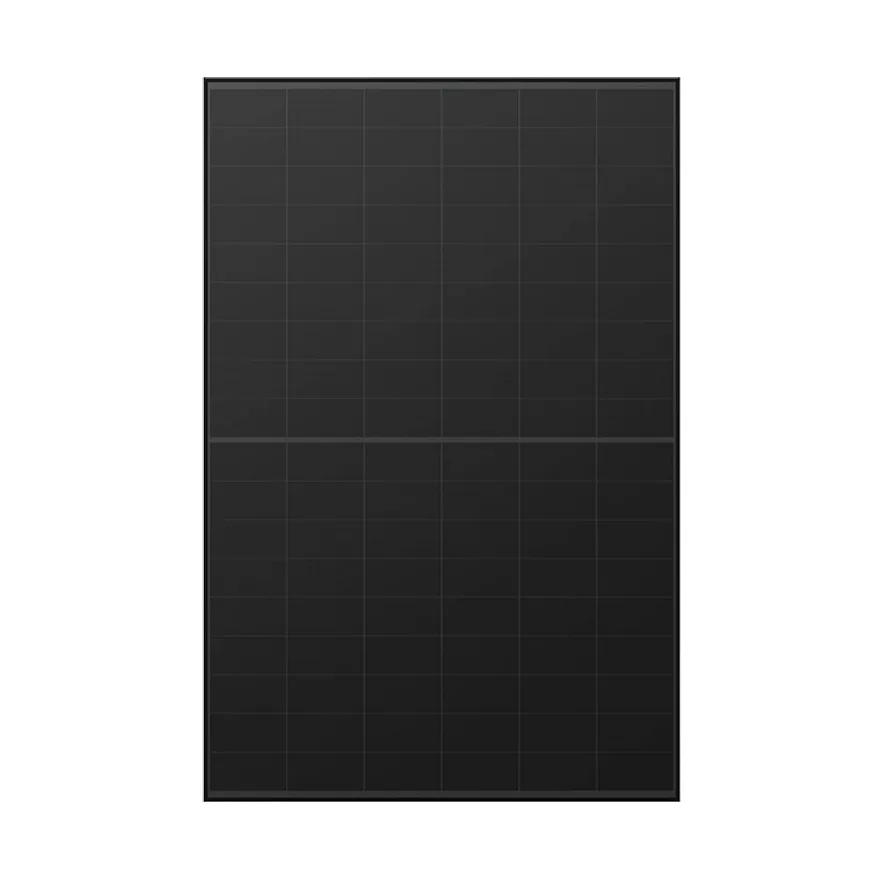

The AIKO 475W NEOSTAR 3S is a premium all-black solar panel designed for very high efficiency from limited roof space.
Using third-generation Back Contact technology, the NEOSTAR 3S gives the panel more active light-capturing surface area and a clean busbar-free appearance. This makes it a strong option for customers who want excellent energy density and a refined rooftop finish.
Its N-Type Back Contact cell design, low degradation, and strong hot-weather performance make it well suited to Australian homes, hybrid systems, and battery-ready installations.
Key Benefits
- 475W rated output for strong generation per panel.
- Up to 23.8% efficiency to maximise production from roof space.
- Third-generation Back Contact cells for excellent light capture and a clean all-black look.
- Low long-term degradation with a 30-year performance warranty.
- Strong mechanical design for demanding rooftop conditions.
Ideal For
- Residential rooftop solar systems
- Battery-ready solar installations
- Grid-connect and hybrid inverter systems
- Small commercial rooftop solar projects
- Premium all-black residential systems
- Homes with limited usable roof area
Specifications
| Specification | Value |
|---|---|
| Manufacturer | AIKO |
| Series | NEOSTAR 3S |
| Model / SKU | AIKO-A475-MCE54Mb |
| Rated Power | 475W |
| Module Efficiency | Up to 23.8% |
| Cell Technology | N-Type Back Contact / ABC |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 20.6 kg +/- 3% |
| Frame | Black anodised aluminium |
| Connector | Staubli PV-KST4/KBT4 EVO 2A/6I |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Mechanical Load | 5400 Pa front / 2400 Pa rear |
| Product Warranty | 25 years |
| Performance Warranty | 30 years |
| Annual Degradation Thereafter | 0.35% |
