Description

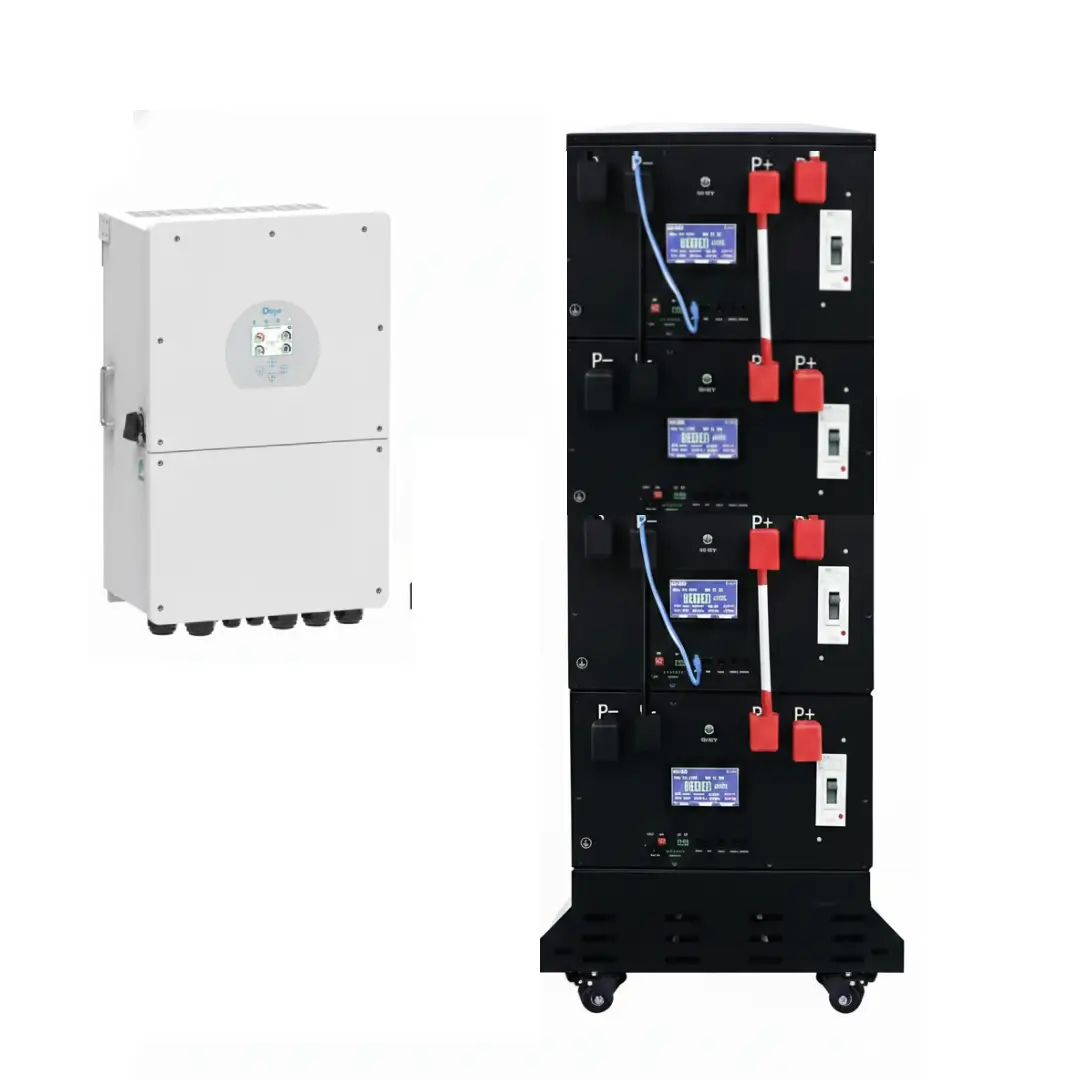

Deye 16Kw HYBRID + 64Kwh LifePo4 Bundle
1 x DEYE SUN-16K-SG01LP1-AU
4 x 16Kwh LiFePro 8000 Cycle Battery – NOT ELIGIBLE FOR REBATES
Mid to Large Size Offgrid Home
CEC Certified 16kVA Inverter with 32Kw Solar Array (24000w charger) Solar MPPT
The Gist
Stop wasting time with baby sized 5Kw and 6Kw systems, this Inverter can handle a lot of solar panels 24Kw in fact, and for almost all homes, that arent mansions, can run multiple large air conditioners. Heck, a small business with 10 x 3.5Kw (850w) air conditioners could use this system. Or with 24000 Watts of solar input, you can easily charge your 1 or 2 EV’s for free at home or business.
This Inverter has just about every feature
The SUN-16K-SG01LP1-AU solar inverter is a versatile and efficient solution designed for use both on and off the grid in Australia. It provides reliable power conversion for residential and commercial solar installations, ensuring optimal performance in diverse conditions. With its advanced MPPT technology, the SUN-16K-SG01LP1-AU maximizes energy harvest from your solar panels, while its robust design ensures long-term durability and reliability.
Ideal for Australian climates, this inverter offers seamless integration with your solar power system, supporting a variety of applications from homes to small businesses. Whether you’re looking to reduce your electricity bills or ensure a steady power supply in remote locations, the SSUN-16K-SG01LP1-AU delivers superior performance and peace of mind.
Key Features:
- Advanced MPPT technology for maximum energy efficiency
- Suitable for both on-grid and off-grid applications
- Robust design for Australian conditions
- Seamless integration with residential and commercial solar systems
- Reliable power supply for remote locations
Dimensions 789*490*357
Weight 25kg
Experience the power of reliable solar energy with the SUN-8K-SG05LP1-AU and take control of your energy future, both on and off the grid.
Description
Model | SUN-16K-SG01LP1-AU |
Battery Input Data | |
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range(V) | 40-60 |
Max.Charging Current(A) | 290 |
Max.Discharging Current(A) | 290 |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
Number of Battery Input | 1 |
PV String Input Data | |
Max. DC Input Power (W) | 24000W |
Rated PV Input Voltage (V) | 500 |
Start-up Voltage（V） | 125 |
MPPT Voltage Range（V） | 150-425 |
Rated DC Input Voltage(V) | 370 |
Max. Operating PV Input Current (A) | 26+26+26 |
Max. Input Short-Circuit Current (A) | 44+44+44 |
No. of MPP Trackers/No. of Strings MPP Tracker | 3/2+2+2 |
AC Output Data | |
Rated AC Output Active Power (W) | 16000 |
Max AC Output Active Power (W) | 16000 |
AC Output Rated Current (A) | 69.9 |
Max AC Output Current（A） | 69.6 |
Max Continuous AC Pass through （A） | 100 |
Peak Power (off grid) | 2 time of rated power, 10 S |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
Grid Connection Form | L+N+PE |
Total Harmonics Current Distortion (THDi) | |
DC Current Injection | |
Efficiency | |
Max Efficiency | 97.60% |
Euro Efficiency | 96.50% |
MPPT Efficiency | 99.90% |
Protection | |
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
Over Voltage Category | TYPE II(DC), TYPE II(AC) |
lnterface | |
Communication Interface | RS485/RS232/CAN |
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
General Data | |
Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
Permissible Ambient Humidity | 0-100% |
Permissible Altitude | 2000m |
Noise (dB) | <50 dB |
Weight (kg) | 48 |
Cabinet size (mm) | 464W x 763H x282D（Excluding connectors and brackets） |
Protection Degree | IP65 |
Type of Cooling | Intelligent Air Cooling |
Warranty | 10 Years |
Grid Regulation | AS/NZS 4777.2 |
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
4 x 48V 314Ah 16kwh EVE 8000 cycles LiFePo4 Battery
Introducing the revolutionary 51.2V battery featuring next-generation A+ MB31 cells from EVE, designed to deliver unparalleled performance and longevity. Perfect for off-grid applications and future on-grid integration, this battery sets a new standard in energy storage. Currently the MB31 is the best cell that can be purchased from a major Tier 1 manufacturer like EVE energy.
Features
- Superior Cell Technology: Utilizes the highest grade EVE MB31 LFP cells available globally, ensuring unmatched quality and durability.
- Impressive Cycle Life: Rated for 8,000 cycles, offering years of reliable performance.
- Advanced Battery Management System (BMS): Equipped with a state-of-the-art BMS featuring 2A active balancing, providing optimal cell management and safety.
- Bluetooth Connectivity: Enables real-time monitoring and management via your smartphone or other devices.
- Compatibility: Works seamlessly with Victron and DEYE and most smart inverters on the market, ensuring versatile integration into various systems.
- IEC 60947-2 – 250A DC Circuit Breaker built in Valued at $299 (Conforms to AS 60947.3:2018 DC-PV2)
Why Choose This Battery?
- Unbeatable Value: Combines premium quality and wholesale to consumer competitive pricing, delivering the best value for your investment.
- Longevity: With a lifespan designed to outlast other LiFePO4 batteries, you can count on sustained performance and reduced maintenance costs.
- High Performance: Perfect for both off-grid and soon-to-be on-grid applications, this battery is engineered to handle diverse energy demands with ease.
- Cutting-Edge Technology: Incorporates the most advanced BMS and high-grade cells to ensure safety, efficiency, and reliability.
- Cells – Many batteries use 2000, 3000 or 4000 cycle cells. We don’t, We use EVE 8,000 Cycle cells.
Ideal For
- Off-Grid Living: Reliable power for homes, cabins, and remote locations without access to the grid.
- Solar Energy Systems: Maximizes the benefits of renewable energy, storing and supplying power efficiently.
- Backup Power: Ensures continuous power supply during outages, maintaining the operation of essential systems and appliances.
Choose the 51.2V battery with MB31 cells from EVE for an investment in the future of energy storage—reliable, efficient, and built to last.
Using the Brand New generation 314ah capacity MB31 cells from EVE Energy, this battery is the ultimate in technological advancement. Be the first in the world to get your hands on genuine A+ grade 8000 cycle LFP cells. This next generation cell follows the LF280k and LF304 to have increased capacity and performance. Up to 335ah in capacity.
Featuring the latest and greatest inverter support BMS from JBD or JK BMS, you can rest assured you have the absolute best battery on the market today, especially if you have Victron or DEYE Inverters. The 2 most popular off grid solutions in Australia.
BMS 48V 200A with 2A active Balancer to ensure long life and high current balancing of your cells
Compatible with Victron, DEYE & Growatt Inverters
| LiFePO4 Lithium Battery Pack Spec | |
| Model No | 16Kwh |
| Nominal Parameters | |
| Voltage | 51.2V |
| Capacity | 314Ah |
| Energy | 16Kwh rated Capacity |
| Dimensions (L*W*H) | 585 x 610mm x 260mm (800 x 700mm Pallet) |
| Weight | 110kg |
| Basic Parameters | |
| Potential Lifespan (25℃) | 10-20 Years of daily use at recommended 0.2C or less ≈25°C |
| Life cycles (70%DOD,25℃) | Up to 8000 times (according to manufacturer) |
| Storage time/ temperature | 5 months @25℃; 3 months @35℃; 1 months @45℃; |
| Operation temperature | -20℃ to 60℃ @60+/-25% Relative Humidity |
| Storage temperature | 0℃ to 45℃ @60+/-25% Relative Humidity |
| Enclosure protection rating | IP21 |
| Electrical Parameters | |
| Operation voltage | 46-58.4v DC |
| Max.charging voltage | 58.4v DC |
| Max.charging and discharging current | 200A BMS (300A for 15 Seconds) |
| Max Continuous power | 10,000W |
