Description

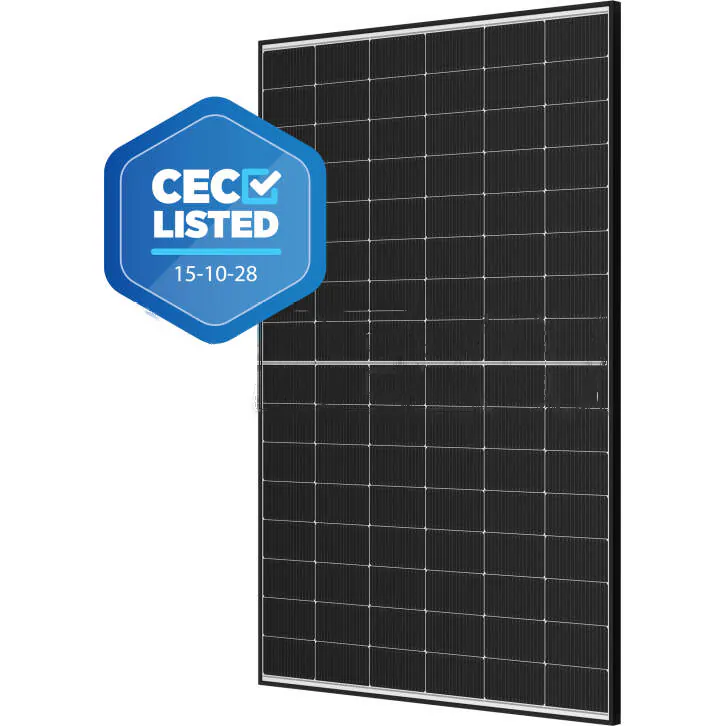

The Trina Vertex S+ 465W is an N-Type i-TOPCon solar panel built for efficient, long-lasting rooftop solar.
This Vertex S+ module uses Trina Solar’s N-Type i-TOPCon technology to deliver strong output from a compact, installer-friendly panel. Its dual-glass construction helps improve durability compared with traditional backsheet panels, making it well suited to Australian residential and small commercial systems.
The low temperature coefficient, long warranty support, and 96-cell format make it a practical choice for battery-ready systems, hybrid inverters, and customers wanting reliable production over decades.
Key Benefits
- 465W rated output from a compact Vertex S+ module.
- N-Type i-TOPCon technology for high efficiency and lower degradation.
- Dual-glass construction for improved durability and reliability.
- Low hot-weather losses with a -0.29%/°C temperature coefficient.
- 25-year product and 30-year power warranty for long-term confidence.
Ideal For
- Residential rooftop solar systems
- Battery-ready solar installations
- Grid-connect and hybrid inverter systems
- Small commercial rooftop solar projects
- Homes with limited roof space
- Customers wanting Trina N-Type dual-glass technology
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Trina Solar |
| Series | Vertex S+ |
| Model / SKU | TSM-465NEG9RH.28 |
| Rated Power | 465W |
| Cell Count | 96 cells |
| Cell Technology | N-Type i-TOPCon monocrystalline |
| Construction | Dual-glass |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21 kg |
| Front Glass | 1.6mm heat-strengthened glass |
| Back Glass | 1.6mm heat-strengthened glass |
| Frame | 30mm black anodised aluminium alloy |
| Junction Box | IP68 rated |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +70°C |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Product Warranty | 25 years |
| Power Warranty | 30 years |
| Guaranteed Output at 30 Years | 87.4% |
