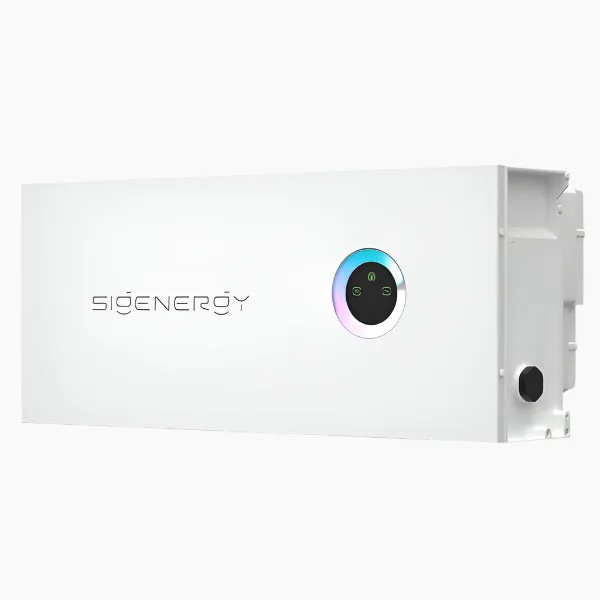

Sigenergy 12kW SigenStor Single Phase Controller
This is the NEW UPDATED version
The Sigenergy 12.0 kW SigenStor Single Phase Controller IP66 4 MPPT combines five core functions—solar inverter, EV DC charger, battery PCS, battery pack interface, and EMS—into a single, weatherproof enclosure. AI-driven energy management maximizes self-consumption, peak-shaving and backup performance, while four independent MPPT trackers extract every watt from your PV array. Modular by design, it scales from small homes to larger installations simply by adding SigenStor battery modules.
Key Features
5-in-1 All-In-One Design
Integrates solar inverter, EV DC charger, battery PCS, battery pack interface and embedded EMS into one compact unit12 kW Continuous Power
Delivers a full 12 000 W of single-phase AC output for self-consumption or off-grid backupIP66-Rated Enclosure
Fully dust-tight and protected against powerful water jets for reliable indoor or outdoor installation4 MPPT Trackers – up to 24kw of Solar array
Four independent maximum power point trackers accommodate complex PV layouts and optimize yield under shading or uneven orientationAI-Optimized Energy Management
mySigen App integration provides AI-assisted energy planning, real-time consumption/production graphs, and firmware updates
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated AC Power | 12 000 W |
| MPPT Channels | 4 independent trackers |
| DC Input Voltage Range | 100 V – 600 V |
| Max. DC Input Power | 12 000 W |
| Peak AC Power (5 min) | 11 000 W |
| Round-Trip Efficiency (Max.) | 97.4 % |
| DC/AC Ratio | Up to 1.2:1 |
| Protection Rating | IP66 |
| Operating Temperature | –30 °C to +60 °C |
| Dimensions (W × H × D) | 700 × 300 × 260 mm |
| Weight | 36 kg |
Monitoring & Control
Multi-Source Black-Start: Automatically coordinates battery, PV and generator inputs to restore power after grid outages.
Seamless App Integration: mySigen mobile app delivers live system data, AI-driven optimization suggestions and over-the-air firmware upgrades
Installation & Scalability
Modular Stacking: Connect up to six SigenStor BAT modules (5 kWh or 8 kWh each) in parallel for up to 48 kWh per tower
Quick-Connect Terminals: Tool-free MC4 connectors simplify wiring and reduce commissioning time
Safety & Compliance
Comprehensive Protections: Built-in safeguards against over-/under-voltage, over-current, short circuit, ground-fault and over-temperature.
CEC Approved: Complies with Australian grid-connected inverter standards for single-phase installations.
Warranty & Support
10-Year Manufacturer’s Warranty: Covers defects and performance retention under normal operation
Local Service Network: Access to authorised Sigenergy installers and spare-parts support across Australia.
With its robust IP66 rating, four MPPT trackers and AI-enabled five-in-one architecture, the Sigenergy 10.0 kW SigenStor Single Phase Controller offers a turnkey, future-ready solution for residential and light-commercial solar-plus-storage applications.
