Pylontech PELIO-L-5.12

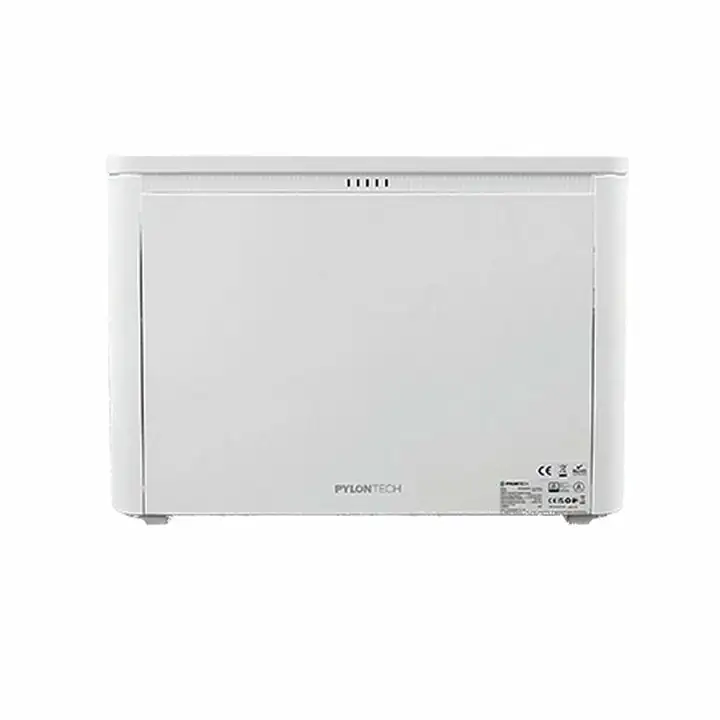

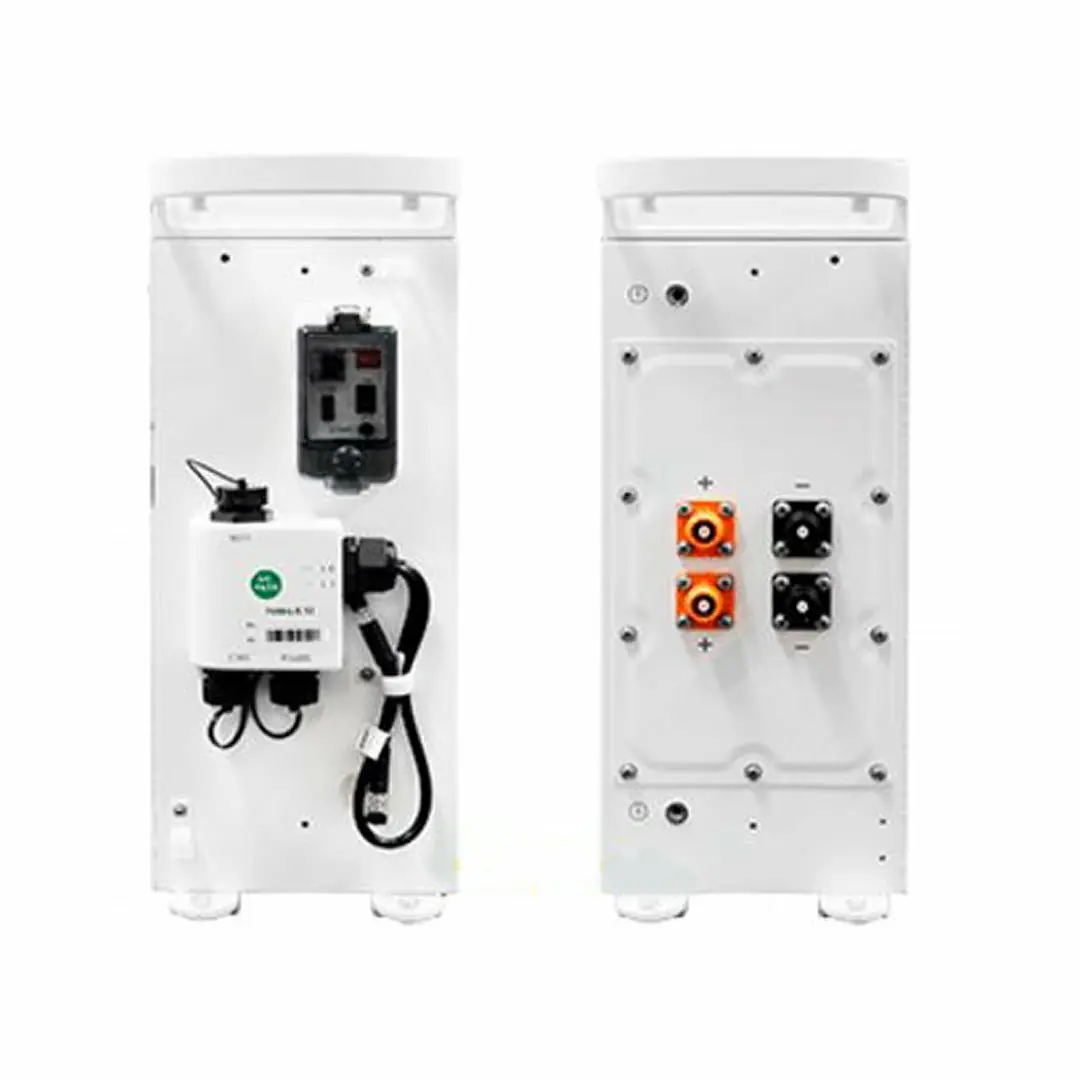

PELIO-L 51.2V 100Ah 5.12kWh Slim-line ESS Floor Mounted System (1 x 5.12Kwh Module and Ground Bracket)
Pelio is a sleek & minimalist battery storage system specifically developed for modern residential properties. With it’s white steel facade, slim-line footprint and Indoor or outdoor and floor or wall mounting capabilities, the Pelio blends seamlessly into any residential or small commercial installation.
Scalable from 5.12kWh up to 102.4kWh, 24/7 monitoring capability and advanced battery management system, The Pelio BESS system will provide safe & reliable well into the future.
Features & Benefits:
- Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
- Lightweight and Slimline design
- High Capacity 51.2V 100Ah modules 1C discharge capability
- Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
- IP65 Rated and suitable for Indoor or Outdoor installation
- Floor or Wall mountable to adapt to any location (Wall – 3 modules max. Ground – 4 modules max)
- 24/7 Wifi Monitoring with simple to use mobile App
- Monitor your energy production and consumption in real time
- 15 year design life
- Compatible with many available Hybrid inverters
- Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
- Clean Energy Council Approved (CEC)
Installation and Installation support is not provided by LiFePo4 Australia with any Pylontech products. You are purchasing the product only
Warranty:Â The Pelio-L comes with a standard warranty of 10 years.
Specifications:
| Chemistry | LiFePO4 |
|---|---|
| System Voltage (V) | 51.2V |
| System Capacity (kWh) | 5.12kWh |
| System Capacity (Ah) | 100Ah |
| No of Modules | 1 |
| Charge Voltage (V) | 56.0V – 56.8V |
| System Recommended Charge/Discharge (A) | 80A (1 cable set) |
| System Max. Charge/Discharge (A) – 15 Minutes | 100 – 120A (1 cable set) |
| System Peak Charge/Discharge (A) – 15 seconds | 120 – 200A (1 cable set) |
| Discharge Voltage (V) | 44.8V – 56.8V |
| Depth of Discharge (DoD) | 95% |
| Communications | RS485, CAN |
| Operation & Connection | WIFI (2.4G), USB2.0 |
| Protection Class | IP65 |
| Communications | RS485 / CAN |
| Design Life (Years) | 15 years |
| Operating Temperature Charge | -0°C to +50°C |
| Operating Temperature Discharger | -10°C to +50°C |
| Altitude | <4000 metres |
| Humidity | 5% – 95% RH – No Condensation |
- PELIO-LÂ Battery Module (Qty dependant on model)
- PELIO-Ground Bracket – Floor Installation Kit
System Integration Information:
The Pylontech Pelio-L can be integrated with many of the worlds leading inverter brands. Contact us for System integration information for the following brands:
