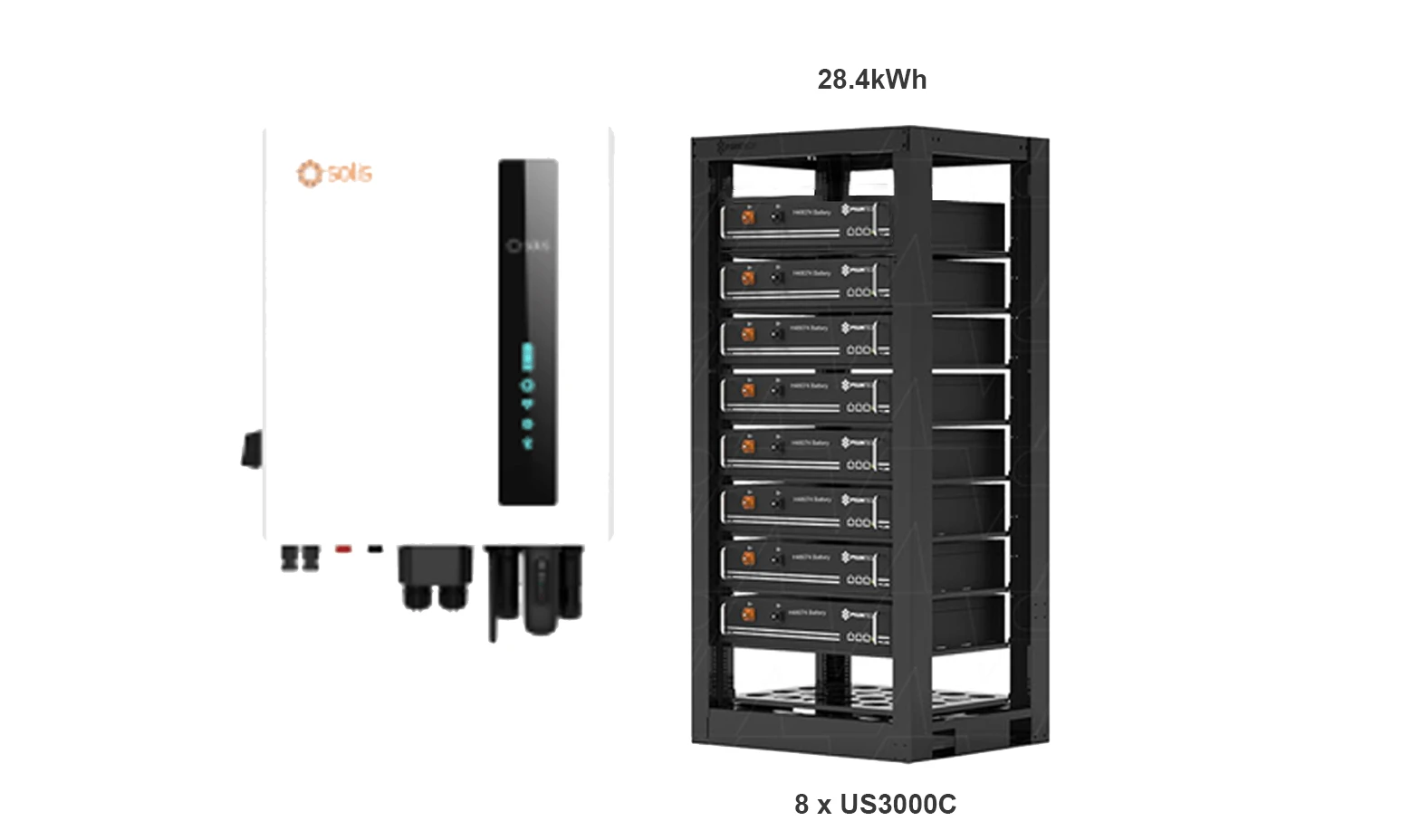

Solis S6 EH 8KW PLUS + Pylontech 28.4kWh

Solis Hybrid S6 LV 8kW – S6-EH1P8K-L-PLUS-AU  + Pylontech 8 x US3000C + Powercube open rack

Estimated Rebate $10,029.12*
*when installed by CEC/SAA battery certified electrician

The Solis Hybrid S6 LV 8kW inverter delivers powerful, flexible energy solutions for modern Australian homes and businesses. this single-phase hybrid inverter integrates solar, battery storage, and grid power with seamless switching to ensure energy security and maximum self-consumption. Designed for 48v  low-voltage battery systems, the S6-EH1P8K-L-PLUS-AU supports intelligent energy management with time-of-use modes, backup power capabilities, and advanced monitoring features.

*Video is showing a previous model, it has since been updated in design. as show in the images

Key Features:

• High Efficiency: Maximum inverter efficiency of 97.9% for superior energy yield.

• Low Voltage Battery Compatibility: Supports a wide range of leading battery brands (48V nominal systems).

• Seamless Backup Power: Instant switchover (<10ms) during grid outages ensures critical loads stay powered.

• Smart Load Management: Supports dual output for essential loads, optimizing backup performance.

• Flexible Energy Scheduling: Programmable working modes for peak shaving, self-consumption, and backup priority.

• Large PV Input: Up to 16A DC input per string, with dual MPPTs for design flexibility.

• Remote Monitoring: Full monitoring via SolisCloud platform, allowing real-time performance insights and remote updates.

• Robust & Safe: Built-in AFCI (Arc Fault Circuit Interrupter) and IP66-rated for outdoor durability.

• Easy Installation: Lightweight, compact design with simple wiring and quick setup tools.

Technical Highlights:

• Rated AC Power Output: 8,000W

• Maximum PV Input: 11,000W

• MPPT Voltage Range: 90V–520V

• Battery Voltage Range: 42V–59V

• Backup Power Output: 8kW (off-grid mode)

• Certifications: AS4777-2:2020, IEC62109-1/-2, IEC62040-1

Ideal Applications:

• Residential solar + battery systems

• Small businesses seeking energy independence

• Off-grid and backup power setups

Pylontech Battery

Pylontech 48v US3000C 3.55kWh Lithium Battery

Key Specifications:

• Nominal Voltage: 48V
• Total capacity per battery module – 3.55kWh
• Usable energy per module – 3.37kWh
• Maximum output power per module – 5kW (Peak 15s max)
• Cycle life per module – >6000 cycles
• Expand-ability – up to 80kWh total, adding modules and cabinets as necessary at any time (over 15 units in parallel requires a communications hub)
• Communication: RS485, CAN
• Charge voltage (V): 52.5-53.5
• Discharge voltage (V): 45-53.5
• Working temperature (c): 0-50
• Shelf temperature (c): -20-60
• Humidity: 5%-85%
• Altitude <2000

Ideal Applications:

• Residential solar + storage systems

• Backup power solutions

• Time-of-use energy shifting and peak shaving
