Description
DEYE LV 51.2V 6.14kWh 6RW-M6.1-B
Deye 6RW-M6.1-B Energy Storage System
The Deye 6RW-M6.1-B is a high-performance energy storage system designed to meet the demands of both residential and commercial applications. Featuring advanced lithium iron phosphate (LiFePO4) battery technology, this system ensures safety, long cycle life, and reliable energy storage, making it a versatile solution for backup power, peak shaving, and maximizing solar energy self-consumption.
Key Features:
- High Capacity and Long Life: With a total capacity of 6.1 kWh, the Deye 6RW-M6.1-B offers ample energy storage to support household or business power needs. LiFePO4 chemistry provides exceptional longevity, with up to 6,000 cycles at 70% end-of-life (EOL), ensuring years of reliable service.
- Modular and Scalable Design: The Deye 6RW-M6.1-B is designed with scalability in mind, allowing multiple units to be connected in parallel to expand storage capacity as your energy needs grow. This flexibility makes it ideal for a wide range of applications, from single-family homes to larger commercial installations.
- Built-in Battery Management System (BMS): The intelligent BMS continuously monitors the battery’s voltage, current, and temperature to enhance safety and optimize performance. It also balances the cells to prevent overcharging or discharging, maximizing cycle life.
- High Power Output: The system supports high discharge power, making it suitable for powering large appliances or handling increased loads during peak usage times. This ensures your essential devices remain operational, even during outages or peak demand periods.
- Eco-Friendly and Safe: Utilizing non-toxic, cobalt-free materials, the Deye 6RW-M6.1-B is an environmentally responsible choice. It is designed to be safe, with a robust enclosure and an IP55 rating, making it resistant to dust and water ingress for reliable outdoor or indoor installations.
- Easy Installation and Maintenance: The compact, floor-mounted design simplifies installation, while remote monitoring capabilities make it easy to keep an eye on system performance and schedule maintenance as needed.
Specifications:
- Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Total Capacity: 6.1 kWh
- Cycle Life: 6,000 cycles at 70% EOL
- Operating Temperature Range: -20°C to 55°C (discharge); 0°C to 55°C (charge)
- IP Rating: IP55 for outdoor/indoor use
- Communication Interface: CAN2.0, RS485 for easy integration with compatible inverters and monitoring systems
The Deye 6RW-M6.1-B is perfect for those seeking a durable, eco-friendly, and scalable energy storage solution. Whether you’re looking to increase self-consumption of solar power, reduce electricity costs, or ensure a dependable backup during outages, this system provides an excellent balance of performance and value.
| Main Parameter | ||
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 120 | |
| Scalability | Max.32 pcs in Parallel(196kWh) | |
| Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 43.2~57.6 | |
| Energy (kWh) | 6.14 | |
| Usable Energy (kWh) [1] | 5.53 | |
| Charge/Discharge Current (A) | Recommend [2] | 60 |
| Max.[2] | 100 | |
| Peak(2mins,25℃) | 150 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D, mm) | 510*740*145(Without Base, depth of 161mm with Hanging Board) | |
| Weight Approximate(kg) | 58 | |
| Master LED Indicator | 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP65 | |
| Operating Temperature | Charge:0～55℃ / Discharge:-20℃～55℃ | |
| Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,70%EOL) | |
| Installation | Wall-Mounted, Floor-Mounted | |
| Communication Port | CAN2.0, RS485 | |

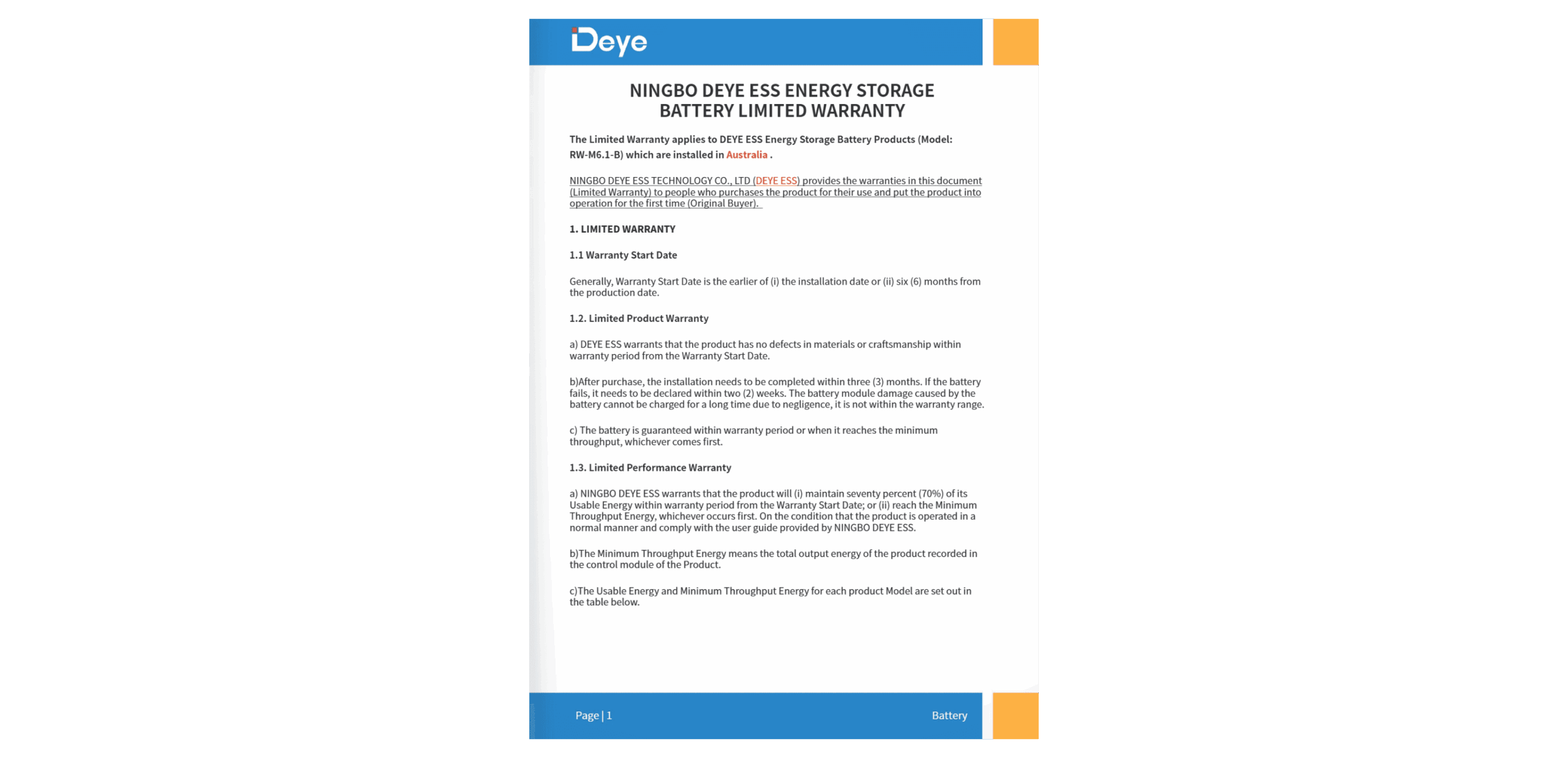

| Warranty Period [3] | 10 years | |
| Energy Throughput [3] | 20MWh@70%EOL | |
| Certification | UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50 | |
| [1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters. | ||
| [2] The current is affected by temperature and SOC. | ||
| [3] The warranty is due whichever reached first of warranty period or energy throughput. | ||
