Description
EVE 100Ah 3.2v Prismatic LFP cell
THIS ITEM IS NOT HELD IN STOCK DUE TO VERY LOW DEMAND – 314AH IS DOMINANT FOR VALUE
PRE ORDER DELIVERY TIMEFRAME IS 8-10 WEEKS

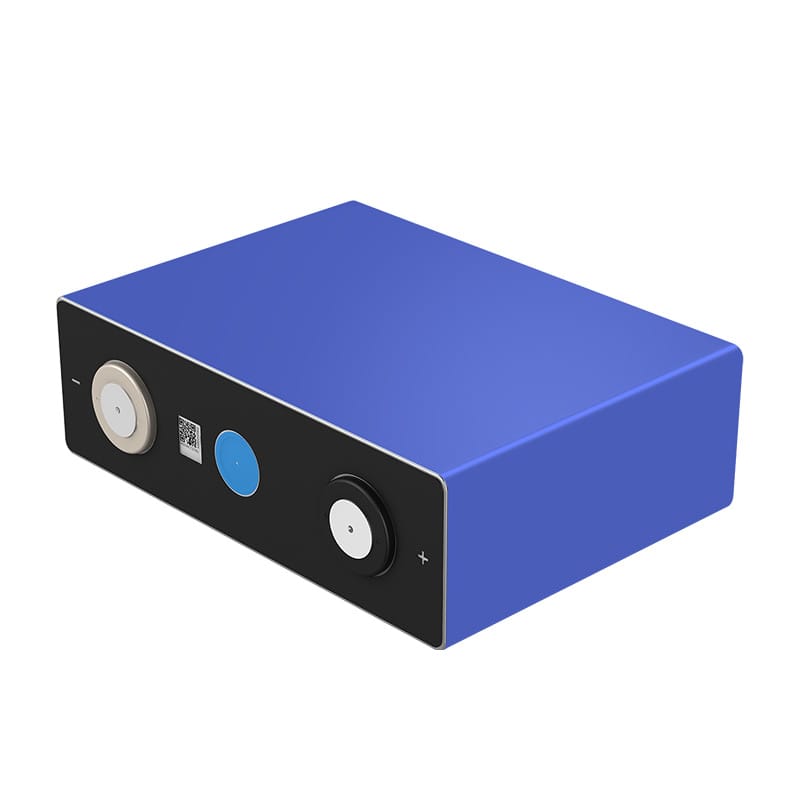

EVE LF100LA (100–102Ah) 3.2V LiFePO4 Prismatic Cell
A compact, lightweight workhorse for serious DIY packs. These are Brand New A Grade (Automotive Grade) EVE cells — not recycled pulls — compliant with IEC 62619 safety standards.
Why you’ll like it
True A-Grade (Automotive Grade): Consistent capacity, low IR, long life.
Long service life: ~5,000 cycles under standard conditions.
High performance: Low internal resistance (≤0.5 mΩ) for stable high current.
Lightweight: ~1.98 kg
Certified & warranted: Meets IEC 62619
Typical uses
Caravans & camper trailers • Motorhomes & 4×4 canopies • Off-grid/solar ESS • Marine house banks • DIY powerwalls • EV conversions
Technical specifications
Chemistry: Lithium Iron Phosphate (LiFePO4)
Model: EVE LF100LA
Nominal Voltage: 3.2 V
Capacity (minimum): 100 Ah
Minimum Energy: 320 Wh
Initial Internal Resistance: ≤ 0.5 mΩ
Charge Cut-off Voltage: 3.65 V
Discharge Cut-off Voltage: 2.5 V (T > 0 °C), 2.0 V (T ≤ 0 °C)
Standard Charge Current: 50 A (0.5C)
Max Continuous Charge/Discharge: 100 A (1C)
Max Pulse Charge/Discharge: 200 A (2C, 30 s)
Cycle Life: 5,000 cycles @ 80% DoD (typical)
Operating Temp (Charge): 0 °C to 55 °C
Operating Temp (Discharge): −20 °C to 55 °C
Dimensions:
Cell body: H 118.5 ± 0.5 mm × W 160 ± 0.5 mm × T 50.1 ± 0.5 mm
Overall height (incl. terminals, for reference): ≈ 133 mm
Weight: 1.98 ± 0.05 kg
Pack-building notes (read first)
Use a suitable BMS sized to your pack current.
Pre-balance cells before first assembly for best results.
Keep within the recommended voltage and temperature limits.
Secure mechanically; avoid compression beyond manufacturer guidance.
For reference: 4S ≈ 12.8 V, 8S ≈ 25.6 V, 16S ≈ 51.2 V nominal systems.
What’s included
1× EVE LF100LA prismatic cell (A Grade / Automotive Grade)
5-year manufacturer’s warranty
