Description

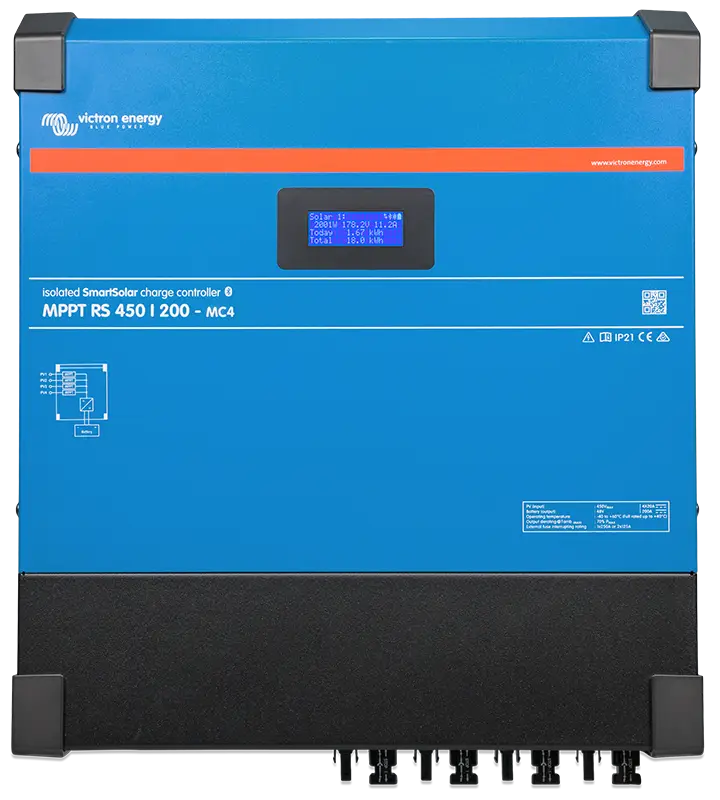

Victron SmartSolar MPPT RS 450/200-MC4 SCC145120510
Victron SmartSolar MPPT RS 450/200-MC4 (SCC145120510): The Ultimate High-Voltage Solar Charge Controller
The Victron SmartSolar MPPT RS 450/200-MC4 is the pinnacle of solar charging technology, engineered for the most demanding large-scale off-grid and on-grid battery systems. This high-end charge controller is specifically designed to handle large, high-voltage solar arrays, making it the ideal choice for residential solar installations, large-scale commercial setups, and complex off-grid systems. With a robust design and a wide array of advanced features, it ensures maximum energy harvest, system safety, and operational flexibility.
Key Features
- Ultra-Fast MPPT Technology: Continuously and meticulously tracks the maximum power point of your solar array to maximize energy yield, even under challenging conditions like shading or variable weather.
- Dual-Tracker System: Equipped with four independent MPPT trackers (two per input) to optimize performance for two separate solar array orientations or configurations. This allows for superior performance from systems with panels on different roof faces or with varying panel types.
- High-Voltage Capability: Supports an impressive PV input voltage range of 80 V to 450 V DC, with a startup voltage of 120 V DC. This allows for longer series strings of solar panels, reducing the need for complex and costly parallel cabling.
- Isolated PV Connections: Features full galvanic isolation between the PV array and the battery bank, providing an additional layer of safety for your entire system.
- Integrated Bluetooth & VictronConnect App: The built-in Bluetooth Smart functionality enables wireless setup and monitoring via the free VictronConnect app on your smartphone, tablet, or laptop. View real-time performance data, access historical graphs, and configure all charge settings with ease.
- Built-in Display: The integrated front-panel display provides at-a-glance access to key information, including battery voltage, charge current, and individual PV array voltages.
- Advanced Safety Features: Includes a built-in PV Isolation Resistance Monitoring function that continuously checks for faults that could reduce the insulation of the panels to unsafe levels. It also has comprehensive protection against PV reverse polarity, output short circuits, and over-temperature conditions.
- Synchronized Parallel Operation: For massive systems, the VE.Can bus ports allow you to connect and synchronize up to 25 units together for a scalable power output and unified charging.
- Programmable Relay & I/O Ports: A programmable relay and two general-purpose analog/digital input ports offer advanced automation and integration possibilities. The remote input can accept a signal from a BMS (Battery Management System) for enhanced battery control and safety.
