Description

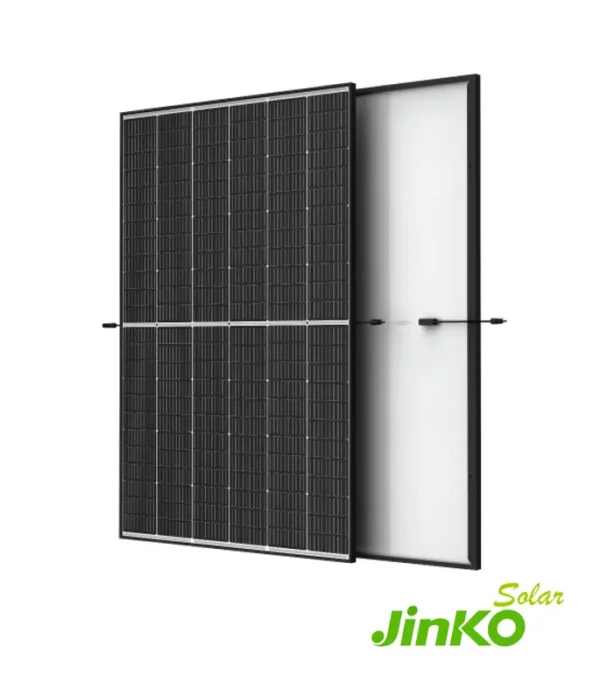

NEW! Jinko 475 Watt TIGER NEO Dual Glass Black Frame Solar Panel 96 Cell
Minimum – 8 Panels – Special Note : As of January 2026, many imported goods from China will be 10-20% higher in price, this being a new model, suffers from this price increase, you will see retail prices rise over the coming days, and weeks for fresh stock
Model: JKM475N-48HL4M-DV-Z2-OC
The Jinko Tiger Neo 475W is a high-performance N-Type monocrystalline solar module Dual Glass featuring JinkoSolar’s advanced HOT 3.0 cell technology. Designed for long-term reliability and superior energy yield, this panel is ideal for residential, commercial, and utility-scale installations where durability and efficiency matter.
Using a mono-facial dual-glass construction, the Tiger Neo offers enhanced resistance to moisture ingress, micro-cracking, and environmental degradation compared to traditional glass-backsheet modules. This makes it particularly well-suited to harsh Australian conditions, including coastal and high-temperature environments.
Key Features
475W rated power output with high module efficiency (up to 23.77%)
N-Type monocrystalline cells for improved performance and lower degradation
Dual glass (glass-glass) construction for enhanced durability and longevity
HOT 3.0 technology for better energy yield and reliability
Excellent resistance to salt mist and ammonia environments
Strong mechanical strength: 5400 Pa front / 2400 Pa rear load rating
30-year linear performance warranty
25-year product warranty
Electrical Specifications (STC)
Maximum Power (Pmax): 475 W
Maximum Power Voltage (Vmp): 31.19 V
Maximum Power Current (Imp): 15.23 A
Open Circuit Voltage (Voc): 36.76 V
Short Circuit Current (Isc): 15.98 A
Maximum System Voltage: 1500 V DC
Maximum Series Fuse Rating: 30 A
Mechanical Specifications
Cell Type: N-Type Mono-crystalline
Cell Configuration: 96 cells (48 × 2)
Dimensions: 1762 × 1134 × 30 mm
Weight: 21.5 kg
Front Glass: 1.6 mm anti-reflection coated glass
Rear Glass: 1.6 mm heat-strengthened glass
Frame: Anodised aluminium alloy
Junction Box: IP68 rated
Connector Type: MC4 / MC4-EVO2 compatible
Performance & Reliability
First-year degradation: ≤1%
Annual degradation thereafter: ≤0.40%
Guaranteed 87.4% output at 30 years
Operating temperature range: -40°C to +70°C
Compliance & Certifications
IEC 61215:2021 / IEC 61730:2023
ISO 9001, ISO 14001, ISO 45001 certified manufacturing
Fire Rating: IEC Class C
Protection Class: Class II
Summary:
The Jinko Tiger Neo 475W is a premium, future-proof solar panel combining high efficiency, long service life, and robust construction. It is an excellent choice for customers seeking maximum long-term value, especially in demanding environmental conditions.
