Description

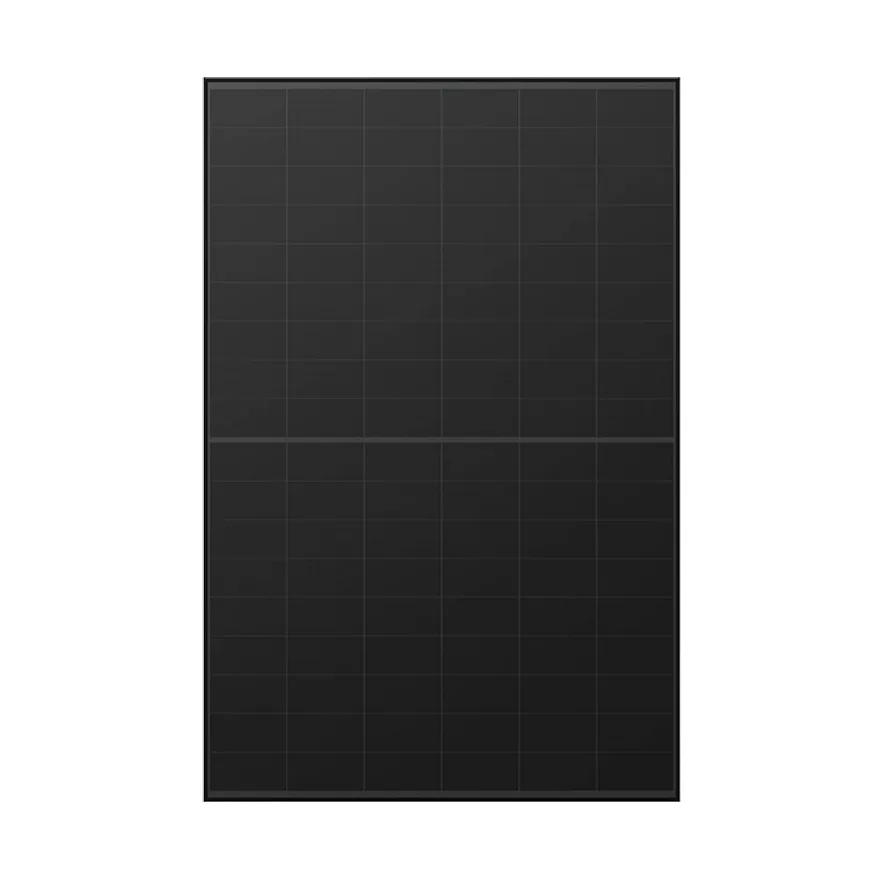

Aiko 475W Neostar 3S with cell optimisation

3rd Generation of Back Contact technology, also known as the Infinite Technology, engineered for maximum efficiency. The most efficient all black panel available in Australia – Up to 24.8%

The most efficient all black panel available in Australia (at time of writing)

• Same physical size as the 475W Aiko Neostar with white backsheet panel
• 3rd Generation of Back Contact technology,  also known as the Infinite Technology, engineered for maximum efficiency.
• The most efficient all black panel available in Australia – Up to 23.8%
• All Black – No visible busbars for a sleek look and higher light capture

Key Features

• High Efficiency Output
  Delivers 475W with module efficiency reaching 23.8%, maximising power generation per square metre.
• N-Type Back Contact Technology
  Advanced cell structure for superior efficiency, reduced degradation, and minimal light-induced degradation (LID).
• 30-Year Linear Performance Warranty
  Guarantees 90.6% performance after 30 years, with only 0.35% annual degradation from year two onward.
• Partial Shading Optimisation
  Enhanced low-light and shaded performance with three bypass diodes and intelligent string design.
• Robust Design for Harsh Conditions
  Certified for 5400Pa front load, 2400Pa rear load, and hail impact resistance (40mm at 27.5 m/s).
• Premium Aesthetics
  Sleek black anodised aluminium frame with low-profile design for a modern, uniform system appearance.
• Temperature Resilience
  Low power temperature coefficient (-0.26%/°C) ensures stable performance in high-heat environments.
• Trusted Connector Integration
  Features Staubli PV-KST4/ KBT4 EVO 2A/6I connectors for fast and secure installations.

Basic Specifications

• Power Range: 475W
• Efficiency: Up to 23.8%
• Dimensions: 1762 x 1134 x 30 mm
• Weight: 20.6 kg ±3%
• Cell Type: N-Type Back Contact (Infinite Technology – 3rd Generation of Back Contact Technology)
• Frame: Black anodized aluminium
• Connectors: Staubli PV-KST4/KBT4 EVO 2A/6I
• Operating Temp: -40°C to +85°C
• System Voltage Max: 1500V DC
• Warranty: 25 years (product), 30 years (performance)
