Description

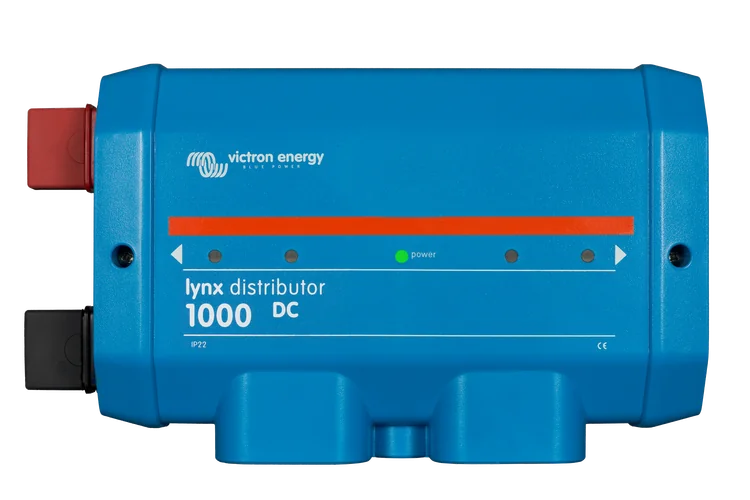

Victron Lynx Distributor M10
Introducing the Lynx Distributor M10: Your Reliable DC Bus Bar Solution
Seamless Integration with Lynx DC System
The Lynx Distributor is expertly designed to connect batteries to the Lynx DC distribution system, offering a streamlined and efficient solution.
High Capacity and Safety Features

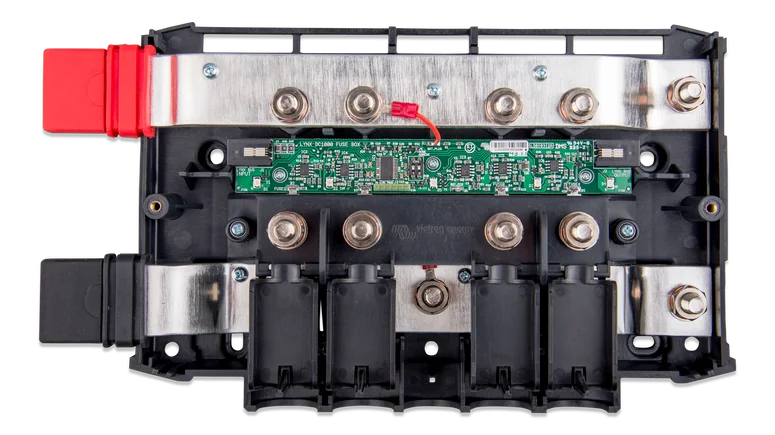

Boasting a 1000A capacity, the Lynx Distributor ensures robust performance. Its fuse-protected connections and LED indicators for blown fuses enhance safety and ease of maintenance.
Smart Monitoring Compatibility
When connected to a Lynx Smart BMS, it offers the convenience of transmitting fuse status information, enabling effective system management.
User-Friendly Accessories
Included with a 40cm RJ10 cable to connect to anther compatible Lynx device. Note: MEGA fuses are sold separately.
Enhanced Visibility with the VictronConnect App
When connected to a Lynx Smart BMS you can view the fuse statuses via the VictronConnect App
Grab a Lynx Distributor today and upgrade your DC distribution system to the Victron Lynx standard.
Specifications
| Feature | Description |
|---|---|
| Power Voltage Range | 9 – 60Vdc |
| Supported System Voltages | 12, 24, or 48V |
| Reverse Polarity Protection | Yes (Note 1) |
| Current Rating | 1000Adc continuous |
| Power Consumption | Max 100mA (with all LEDs illuminated) (Note 2) |
| Connections | Busbar M10 |
| Cables | 40 cm RJ10 cable (included) (Note 3 and 4) |
| Enclosure Material | ABS |
| Enclosure Dimensions | 290 x 170 x 80 mm |
| Unit Weight | 2.2 kg |
| Busbar Material | Tinned copper |
| Busbar Dimensions | 8 x 30mm |
| Operating Temperature Range | -40°C to +60°C |
| Storage Temperature Range | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| Protection Class | IP22 |
Notes:
- The RJ10 cable connection is not protected against reverse polarity.
- Powered from Lynx Shunt VE.Can or Lynx Smart BMS.
- Power from Lynx Shunt VE.Can or Lynx Smart BMS.
- Data can only be received by a Lynx Smart BMS.
