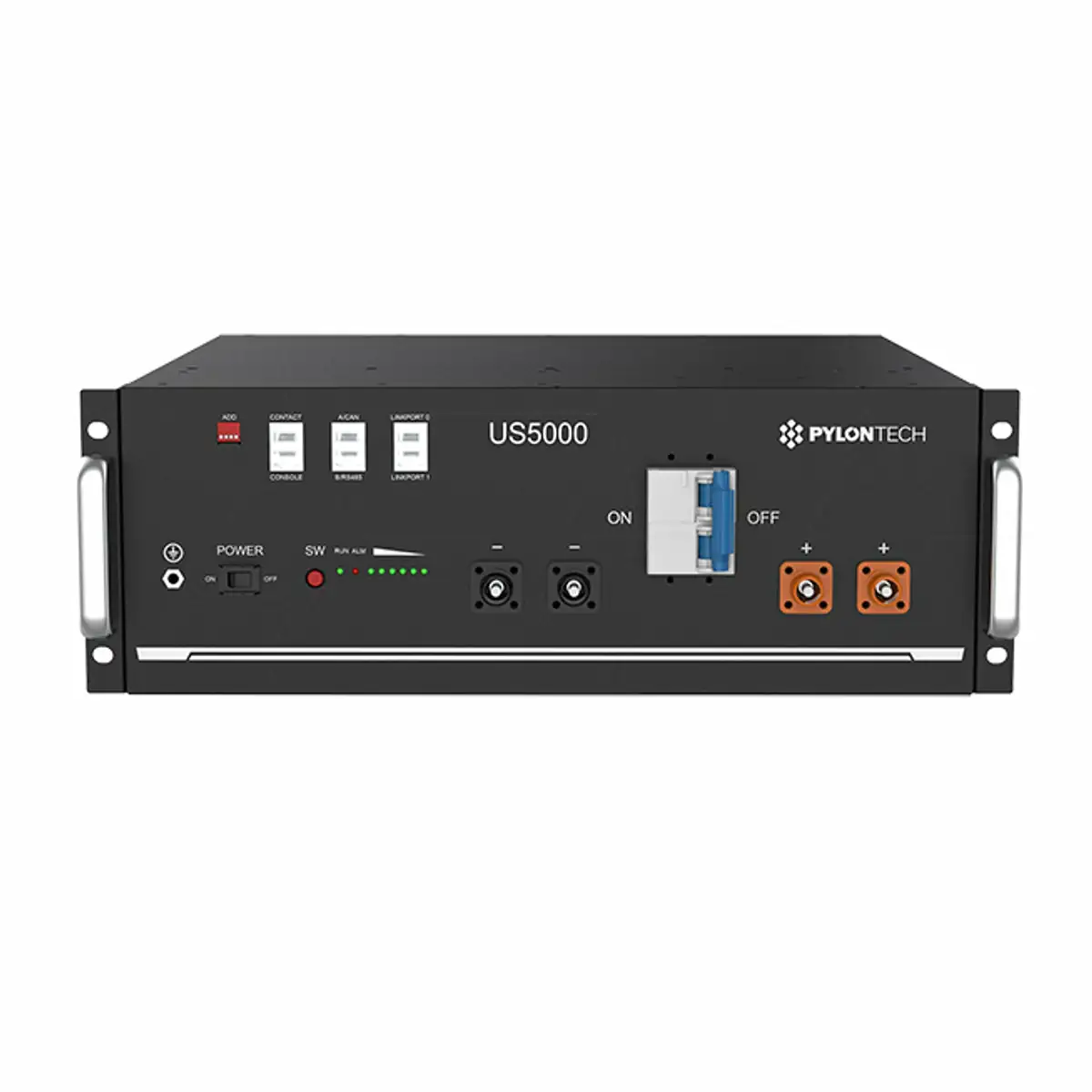

PylonTech US5000B 48v 100Ah 4.8kWh
FREE SHIPPING is only available to some DEPOT locations in QLD, NSW, VIC and SA
Not valid for Remote, Rural or WA/TAS/NT (costs vary greatly -ask for a quote, we will give you the lowest cost price)
Pylontech 48 Volt 4.8kWh Lithium Battery – This is a 15s 48v Battery, it is not 51.2v like all the others. It requires a unique charging voltage of between 53-54v. The Float is usually about 51v.
Overview: Experience reliable, long-lasting energy storage with the Pylontech 48 Volt 4.8kWh Lithium Battery. Designed for both residential and commercial applications, this state-of-the-art lithium iron phosphate (LiFePO4) battery sets the standard for performance, safety, and efficiency in the energy storage sector. The Pylontech 48V 4.8kWh battery is perfect for integrating into solar energy systems or providing backup power solutions for uninterrupted energy access.
Features:
- 4RU size (161mm tall)
- Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Charge / Discharge – Max Continuous 100A, Peak 1. 101 -120A @15 Min. Peak 2. 121-200A @15 Sec.
- Usable capacity of 4.56kWh @ 48 VDC
- Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
- Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
- Compatible with many available Hybrid inverters
- Backwards Compatible with existing US series products
- Pre-charge function to protect ESS from surge currents
- Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
- Communication Protocols: CAN, RS485
- 15+ Year Design Life
- 10 year Warranty
Uses
- Residential solar energy storage
- Backup power solutions for homes and offices
- Commercial energy systems for peak shaving and load shifting
- Off-grid and hybrid solar systems
Why Choose the Pylontech 48 Volt 4.8kWh Lithium Battery? Pylontech has established itself as a leader in the energy storage market, known for its reliability, innovation, and performance. This 48V 4.8kWh battery offers a perfect balance of safety, longevity, and efficiency, making it an excellent investment for anyone looking to optimize their energy storage and achieve energy independence.
Upgrade your energy system with the Pylontech 48 Volt 4.8kWh Lithium Battery and experience enhanced energy storage with cutting-edge technology.
| Model No | US5000-B | |
| Description | 48V 100Ah 4.8kWh 4RU 15S1P LiFePO4 Battery Rack Mount Metal Enclosure + Cables | |
| Chemistry | Lithium Iron Phosphate (LiFePO4) | |
| Voltage | 48V | |
| Nominal Capacity | 100Ah | |
| Watt Hour | 4800.0Wh | |
| Maximum Continuous Discharge Current | 100A | |
| Size | 4RU | |
| Width | 442mm | |
| Height | 161mm | |
| Length/Breadth/Depth | 420mm | |
| Weight | 39kg | |
US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.
This compact and modular battery promises more than 6000 cycles with 90% DoD
The design fits in a battery rack or can be upgraded with custom “feet”
Deliver up to 9.5KW with single module (for 15 seconds)
Modular design gives the end customers the power of choice of capacity (up to 16 modules)
Safest Lithium battery chemistry (Iron Phosphate)
Compatible with most of the available Hybrid inverters
Simple buckle fixing minimize the installation time and cost
Does not require a separate Battery Management Unit
Safety Cert.TüV CE UN38.3
Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.
Features:
- 4RU size (161mm tall)
- Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Usable capacity of 4.56kWh @ 48 vDC
- Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
- Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
- Compatible with many available Hybrid inverters
- Backwards Compatible with existing US series products
- Pre-charge function to protect ESS from surge currents
- Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
- Communication Protocols: CAN, RS485
- 15+ Year Design Life
- 10 year Warranty
Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.
Did you know?
Our LiFePro 5.12Kwh battery is Pylontech compatible, in other words you can install our 5.12Kwh battery with prismatic cells, and 5000 cycle cells, which translates to 10,000 cycles at 50% Depth of discharge. Although we generally dont agree with this data manipulation, its what you will be seeing everywhere you look for your battery purchase.
