Description

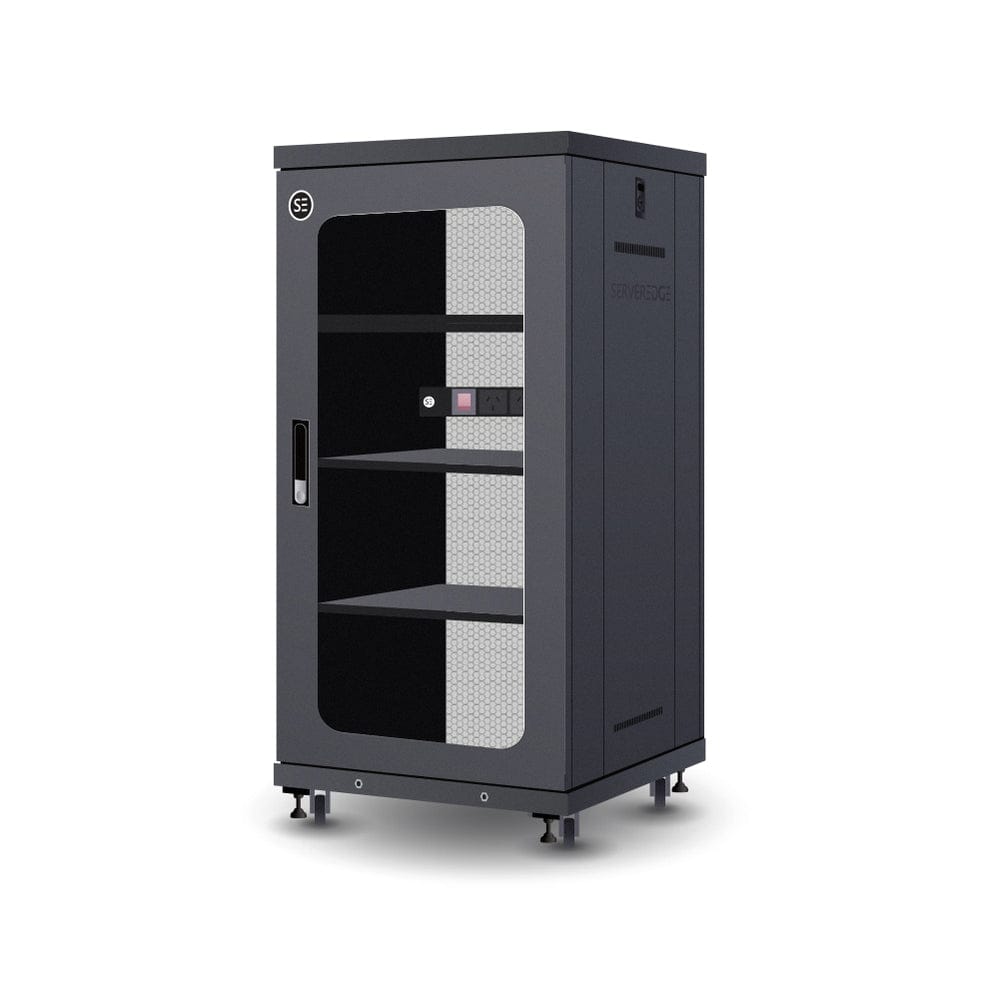

Serveredge 22RU 600mm Wide x 600mm Fully Assembled Free Standing Server Cabinet
PRODUCT DESCRIPTION
Serveredge CBN-22RU-66FS fully assembled server racks are a perfect solution for securely storing your standard 19inch rack mount equipment. This free-standing rack has been especially designed for use with Servers, Switches, AV Equipment, Security Systems, Telephone Systems, Patch Panels and other Networking Equipment. This Serveredge rack is packed with features designed to simplify rack equipment installations and maintenance. The server rack comes with a 25-year manufacturer’s warranty
22RU 600W x 600D Fully Assembled Free Standing Server Cabinet
Datasheet
PRODUCT FEATURES
- Designed for IT, Audio Visual, Security, and Data Equipment
- Ships Fully Assembled for quick installation
- 1000Kg Stationary Load Capacity
- Pre-installed Lockable Castors
- Levelling Feet: Extend to allow enclosure positioning on uneven floors and are removable when not required
- Convenient Grounding System: Includes grounding lugs on doors and side panels
- Earth Straps on front and rear doors
- Built-in Baying Tabs: Allow enclosures to be securely combined in rows (baying kit needs to be purchased separately)
- Includes Two Fixed Shelves: Each with a 310mm depth
- Locking Features:
- Front glass door
- Rear split perforated mesh door
- Removable side panels for easy access
- Nylon Bush-Lined Cable Entry Glands: Located at the top and bottom to protect cables from wear and tear
- Standards Compliance: Conforms to ANSI/EIA RS-31-D, IEC297-2, DIN4191 PART 1, DIN4194 PART 7, GB/T347M2-92
Product Specifications
Rack Height 22RU
Shipping Dimensions (WDH/mm) 660 × 660 × 1180
Shipping weight (kg) 62
Unit Dimensions (WDH/mm) 600 × 600 × 1166
Unit weight (kg) 59
Colour Black
Weight Capacity – Stationary (kg) 1000
Grounding lug Front and Back Door Frames
Fixed Shelves depth (mm) 310
Preset Mounting Distance (front to rear mounting rails) (mm) 315
Maximum Mounting Distance (front to rear mounting rails) (mm) 550
Minimum Mounting Distance (front to rear mounting rails) (mm) 145
