Description

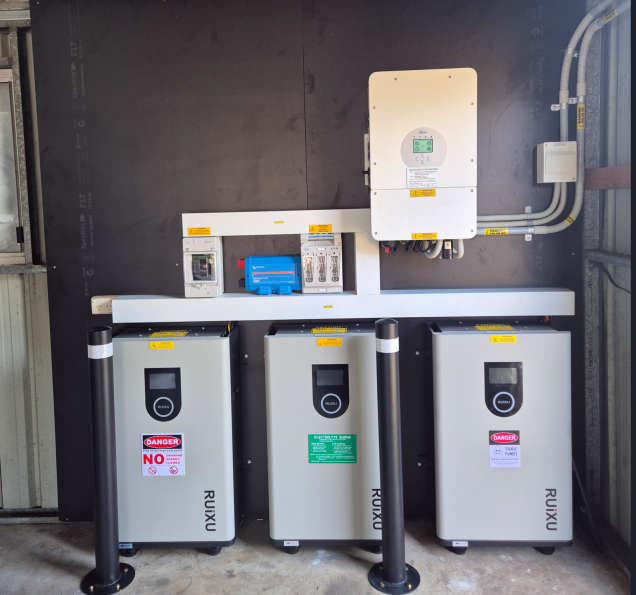

RUIXU Lithi2-16 16kWh Battery + Deye Hybrid Inverter Bundle
Large Home Battery Storage with Deye Hybrid Inverter
This bundle combines the BULLETPROOF Deye hybrid inverter with GENUINE LONG LIFESPAN RUIXU Lithi2-16 lithium batteries to create a powerful home battery system for storing solar energy, reducing grid reliance and improving backup power options.
It is designed for customers who want a serious “48v” based home battery, especially homes with high electricity use, larger solar systems, or a need for more stored energy in the event of complete blackout for extended periods, or for true off grid homes, who depend on reliable and complete backup systems, This system is capable of adding more battery capacity, at much better value, than the more “established in Australia” brands can offer, and it uses larger prismatic proven long life battery cells, which is why it can do more cycles and for longer than small modular battery packs, typical of more established in Australia brands
We highly recommend this combination for fully offgrid clients, because the DEYE inverter really is superior to almost everything else in terms of its whole home UPS style backup, others will say “blackout protection” but that is another term for underpowered, and generally cannot do whole home backup, has severe limitations, and is designed to leave you needing a full inverter replacement by the time you realise, you didn’t get what you paid for
Installed pricing varies depending on your location, switchboard, existing solar system, cable runs, backup requirements and rebate eligibility. The displayed price is an estimate only.
Available for eligible installations in selected QLD and NSW locations after applicable battery rebate/STC assignment.
Why Choose This System?
This system may suit you if you want to:
- Store more of your solar energy for longer, instead of sending it back to the grid
- Reduce evening and overnight electricity bills with lower cycle cost
- Add a larger battery bank to your home for the same price
- Improved and genuine blackout protection where the system is wired for backup
- Use an open, serviceable battery system rather than a locked-in ecosystem
- Expand your battery storage over time if your energy needs grow
What Is Included?
This package uses:
- Deye hybrid inverter
- RUIXU Lithi2-16 51.2V lithium battery modules
- Battery communication between the inverter and batteries where configured
- A scalable battery system suitable for larger home energy storage
Each RUIXU Lithi2-16 battery provides approximately 16.07kWh of nominal storage.
A three-battery system provides approximately:
48.2kWh nominal battery capacity
Actual usable energy depends on the system settings, inverter configuration, battery limits and installation design.
Tech Spec
| Item | Details |
|---|---|
| Battery model | RUIXU Lithi2-16 |
| Battery size | 16.07kWh nominal per battery |
| Battery voltage | 51.2V |
| Battery capacity | 314Ah |
| Battery type | LiFePO4 lithium iron phosphate |
| Inverter | Deye hybrid inverter |
| Typical use | Home battery storage, solar storage, backup power, larger residential systems |
| Expandable | Yes, multiple batteries can be connected in parallel |
| Suitable for rebate | May be eligible when installed under the applicable program rules |
RUIXU Lithi2-16 Battery Features
Easy-to-Read Touch Screen
The RUIXU Lithi2-16 includes a built-in 5-inch touch screen. This allows battery information to be viewed directly from the battery, including operating status and key settings.
Built-In Fire Protection Module
The battery includes a perfluorohexane fire protection module inside the pack. This is designed to improve internal protection around the cells and electrical components.
Heavy-Duty Quick Connectors
The battery uses heavy-duty quick plug connectors rated for high current connection. These are designed to make installation cleaner and more secure when installed correctly.
Wheels and Wall Fixing
Each battery includes concealed heavy-duty wheels, making it easier to position during installation. It also includes rear wall fixing to help prevent tipping once installed.
Maintenance and Inspection Access
An inspection port provides access to internal service areas such as the BMS and fuse, making inspection and maintenance easier for qualified technicians.
All-Pole Protection
The battery includes protection on both the positive and negative poles, using fuse and circuit-breaker protection as part of the internal safety design.
Intelligent Cell Balancing
The battery management system uses intelligent balancing to help keep the internal cells operating evenly. Better balancing can help improve long-term battery performance and reliability.
Self-Heating Function
The self-heating function helps the battery operate in colder conditions by warming the battery when required. This can be useful in colder parts of Australia where low temperature charging may otherwise be an issue.
Outdoor-Ready Battery Case
The battery case uses an electro-coated finish for improved corrosion resistance. This type of coating is commonly used in automotive manufacturing to help protect metal surfaces from rust.
Installation location should still be selected carefully to protect the battery from unnecessary heat, direct sun, flooding, impact or poor ventilation.
Technical Specifications
| Specification | RUIXU Lithi2-16 |
|---|---|
| Nominal energy | 16.07kWh |
| Nominal voltage | 51.2V |
| Nominal capacity | 314Ah |
| Minimum capacity | 314Ah |
| Dimensions | 924mm × 543mm × 250mm |
| Height with wheels | 924mm |
| Weight | Approximately 145kg |
| Claimed cycle life | ≥9,500 cycles at 80% depth of discharge |
Communication Compatibility
The RUIXU Lithi2-16 supports communication with many inverter brands using CAN bus and RS485, depending on the inverter model and protocol selected.
CAN Bus Compatibility
Commonly listed CAN-compatible inverter brands include:
Victron, Deye, Solis, SMA, Studer Innotec, Sofar, GoodWe, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST and Schneider.
RS485 Compatibility
Commonly listed RS485-compatible inverter brands include:
MPP, Voltronic, RCT, Alpha and Outback.
Compatibility should always be confirmed before ordering, especially for rebate installations, off-grid systems, backup systems or existing inverter upgrades.
Expandable Battery Storage
The RUIXU Lithi2-16 can be expanded by connecting multiple batteries in parallel.
Each battery is approximately 16.07kWh nominal capacity.
Up to 32 batteries may be supported in parallel depending on system design, inverter compatibility and installation requirements.
That gives a possible expansion range of approximately:
16kWh to 257kWh nominal battery storage
This makes the battery suitable for larger homes, commercial systems, off-grid systems and customers who may want to expand storage over time.
Professional Installation Required
This is a high-energy lithium battery system and must be installed correctly.
Installation should be completed by a suitably qualified person using correct:
- Cable sizing
- Battery protection
- Isolation
- Inverter settings
- Battery communication
- Earthing and bonding requirements
- Network and rebate requirements where applicable
Incorrect installation can damage equipment, reduce battery life, void warranties or create a serious safety risk.
Pricing Disclaimer
The displayed price is approximate only.
Final installed pricing depends on your property, location, site conditions, system configuration and rebate eligibility. Additional works such as switchboard upgrades, long cable runs, backup circuit wiring, compliance rectification, off-grid setup or special site requirements may increase the final price.
Please contact LiFePo4 Australia for a confirmed quote before ordering an installed system.
- StephenAug 05, 2024
Rated 5 out of 5 stars.
It was really simple to set up and get working with my EG4 6000 XPI picked up my Ruixu 16kWh battery today. It was really simple to set up and get working with my EG4 6000 XP. It took about an hour to get it unloaded out of the back of the truck (300+ lbs!), unboxed (heavy duty plywood crate), and connected in place of the other lithium batteries that were previously running my house.
Standard Included:
(1) RUiXU Lithi2-16
(1) RJ45/CAT5e Patch Cable
(1) Ground Cable
(1) Set of battery cables – parallel 1/0 AWG OP140 or PP140 cableExtras
- Use standard RJ45 cables for DEYE & SMA & Growatt inverters
- Use Victron type B cable for Victron
- For others custom cables will be required – ask if you need to know the pinouts.
REPT-314Ah-10000-cycles[/caption]
Rated 5 out of 5 stars.
My friend got 6 EG4 rack batteries. After we installed the rack, batteries, communication, wireway etc….. I said to myself…. there is no way I’m going through all of this. I’ve been researching quite a few models for the past year and I found this to be the best and most durable since it’s outdoor rated. I went with 2 of these which brings my capacity to 32KwH. I live in a very hurricane prone area so these are exactly what I need. Plug and Play, works with my new EG4 12kpv without issue
