Sigenergy SigenStor Battery System ESS

Sigenergy SigenStor Battery System ESS (10.0 kWh Modules)

Orders are now open for future date installations, Beginning in July 2026. It is likely demand will be high, so expect July/August installation dates for the first orders. Prices are not final and are to be used as a guide only, many installations require additional works to install these battery systems, In most cases installation can be completed in 1-2 days.

Sigenergy Battery System Specifications:

Introducing the advanced and scalable Sigenergy SigenStor Battery System with the latest 10.0 kWh modules, engineered for modern energy needs. Designed for superior efficiency, reliability, longevity, and ease of use, this system delivers a complete solution for sustainable home and small commercial energy management. Every component works seamlessly together for optimal performance.

What’s Included:

• 1 x SigenStor Energy Controller (SigenStor Hybrid Inverter): The intelligent core of the system that manages and optimizes energy flow between solar, battery, grid, and loads with precision and efficiency.
• 2–6 x SigenStor BAT 10.0 (10.0 kWh Battery Modules with LED): High-capacity, long-life LiFePO₄ modules featuring premium 314Ah cells, integrated LED display for easy monitoring, and robust construction for dependable energy storage.
• 1 x (Optional) Sigen Gateway (Home or HomeMax): Automatically detects grid outages and switches in milliseconds to battery or generator power for seamless backup. Manages multiple energy sources (PV, storage, grid, generator) and optimises self-consumption, peak-shaving, and time-of-use strategies via the embedded Energy Management System (EMS).
• 1 x Mounting Kit (SigenStor Installation Kit for Ground-mount): Complete hardware for secure and straightforward floor-standing installation. $249 included in bundle price.

Key Features and Benefits:

• Complete Energy Control: Full command over energy distribution and optimisation to match your household or business needs.
• Superior Energy Storage: Each 10.0 kWh module delivers 8.76 kWh usable capacity with 100% Depth of Discharge and up to 10,000 cycles for exceptional longevity.
• Smart Connectivity: Optional Sigen Gateway and MySigen App enable advanced remote monitoring, control, and smart home integration (including EV chargers).

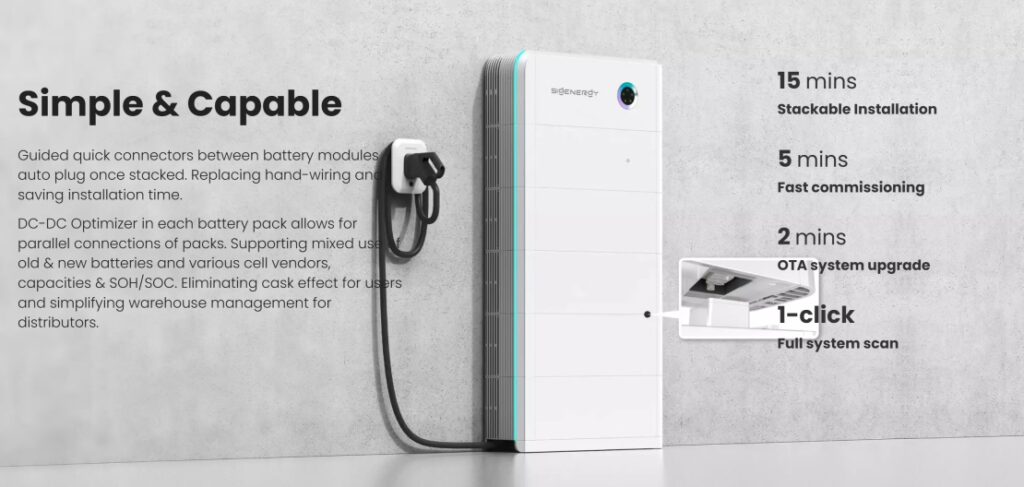

• Hassle-Free Installation: Plug-and-play design with quick-connect terminals and included mounting kit for fast setup.
• Future-Proof Scalability: Mix old and new modules easily thanks to the built-in battery optimizer.

How to Build Your Ideal System

1) Choose Your Battery Capacity (10–60+ kWh) The SIGENERGY system uses high-performance 10.0 kWh modules (9.04 kWh total / 8.76 kWh usable per module with 314Ah cells).

• Small homes: 1–2 modules (10–20 kWh)
• Medium homes: 3–4 modules (30–40 kWh)
• Larger homes / small commercial: 5–6+ modules (50–60+ kWh)

Modules can be stacked up to 6 per tower for excellent capacity in a compact footprint.

Why the 10.0 kWh Module System Stands Out: This next-generation system offers higher energy density, longer cycle life, and greater usable capacity per module compared to previous versions. It provides outstanding value, reliability, and performance for sustainable, independent energy management.

Technical Specifications:

• Battery Type: Premium LiFePO₄ with 314Ah cells
• Total Energy per Module: 9.04 kWh
• Usable Energy per Module: 8.76 kWh
• Depth of Discharge: 100%
• Cycle Life: Up to 10,000 cycles
• Max Charge/Discharge Power per Module: 4.6 kW (peak 6.9 kW for 10s)
• Protection: 5-layer advanced battery safety protection
• Display: Integrated LED on each battery module
• Installation: Stackable, floor or wall-mount, IP66 rated
• Commissioning: Fast 5-minute setup
• Backup Switching: Zero-millisecond load-side disruption
• Additional Features: V2X bi-directional charging support, one-click diagnostics, AI optimisation, mix old/new modules
• Warranty: 10 years (standard manufacturer coverage)

Expandable System for All Property Sizes Start with the capacity you need today and expand easily by adding more 10.0 kWh modules as your energy demands grow. The modular design ensures seamless integration.

2) Choose Inverter Size (Sigen Energy Controller) Select single-phase or three-phase controller matched to your solar array and power requirements.

3) Choose a Sigenergy Gateway

• Gateway Home or Gateway HomeMax for advanced backup, monitoring, and smart energy management.

How to Choose the Right Gateway: Evaluate your monitoring needs, system complexity, property size, and desire for features like EV charger integration. The HomeMax is generally recommended for larger or more complex setups.

Important Notes: Prices are estimated and can change based on location, install requirements, and current promotions. Remote, rural, regional, and off-grid installations must be quoted individually. Shipping, installation, and electrician costs vary significantly by region.

See more here: https://lifepo4.com.au/installation-possible-additional-works-costs/

If you would like a personalised quote, please fill out the form below.

Further information about Gateway

if you want blackout/backup functionality on a residential Sigenergy SigenStor system, the Sigenergy Gateway is generally required. It is the device that isolates the house from the grid during a blackout and manages the backup circuits.

The important distinction is this:

• No Gateway = battery can still do normal self-consumption/load shifting while the grid is up, but during a blackout the system typically shuts down with the grid and you get no backup power.
• With Gateway = the system can form an islanded microgrid and continue powering loads during outages.

For Sigenergy specifically:

• The Gateway handles:
  • Grid disconnection/islanding
  • Automatic transfer to backup
  • Backup load management
  • Generator integration
  • Whole-home or essential-load backup configuration

A few practical notes relevant to Australian installs:

• Single-phase systems usually use the Sigen Gateway SP AU
• Three-phase homes use the Gateway TP AU
• You can configure:
  • Essential loads backup only (most common and cheaper)
  • Whole-home backup (possible, but depends on supply size/load design)

Also important:

• Sigenergy backup switchover is marketed as essentially seamless/UPS-like for many loads.
• Without the gateway, installers cannot legally/safely provide anti-islanding backup operation because the inverter must disconnect from the grid during outages.

So in short:
